Dell PowerEdge (VRTX) and VMware ESXi maintenance

Release date: April 28th 2020

Welcome to my Dell Series. In this quick session I will describe how I updated BIOS, fw etc. and VMware ESXi on a Dell PowerEdge (VRTX) server. This info might be redundant for some, but useful for others. Therefore I decided to create this session anyhow. Prior to making this session, I have already updated the vCenter using the procedure described here: VMware vCenter – Update VCSA

The first thing I do, is to go to Dell support and download the Platform Specific Bootable ISO, PEM640. A very useful utility that identifies the hardware in the server and existing versions, and automatically updates the necessary versions.

Dell-esxi-maint-01



Next, in VMware vSphere, I put the host into Maintenance Mode. I now log into Dell VRTX CMC and launch the iDrac GUI of my host

Dell-esxi-maint-02



Inside iDrac, I launch Virtual Console

Dell-esxi-maint-03



First I attach the PEM-ISO by clicking Connect Virtual Media

Dell-esxi-maint-04



I browse to my ISO file and map this device

Dell-esxi-maint-05

Dell-esxi-maint-06



Once the PEM ISO is mapped, Close…

Dell-esxi-maint-07



Next, I will change the boot order to boot the attached virtual image. I select Boot from the top menu and modify the Boot Controls

Dell-esxi-maint-08

Dell-esxi-maint-09

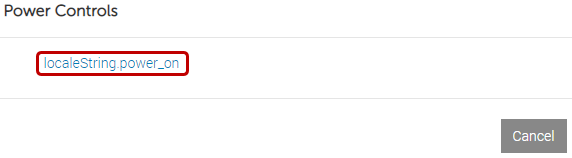

Now I power down and power up the server in order to boot up using the PEM ISO file

Dell-esxi-maint-10

Dell-esxi-maint-11

Dell-esxi-maint-12

Dell-esxi-maint-13

Dell-esxi-maint-14

Dell-esxi-maint-15

Dell-esxi-maint-16

Dell-esxi-maint-17



The server now boots up using the Virtual CD I mapped above

Dell-esxi-maint-18

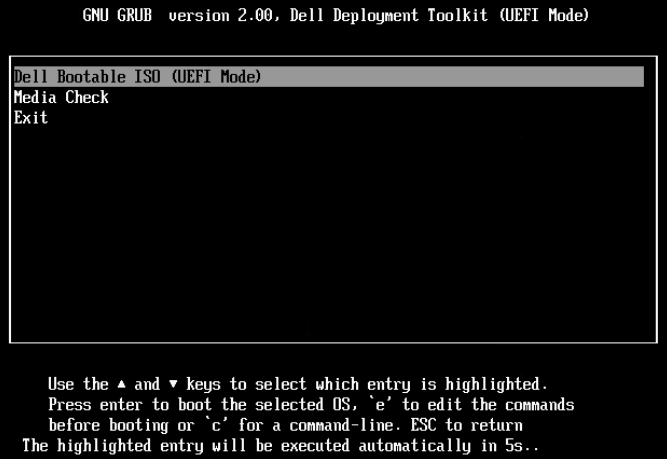

I select Dell Bootable ISO (UEFI Mode) from the menu

Dell-esxi-maint-19



The Dell Bootable ISO runs validation and installation

Dell-esxi-maint-20

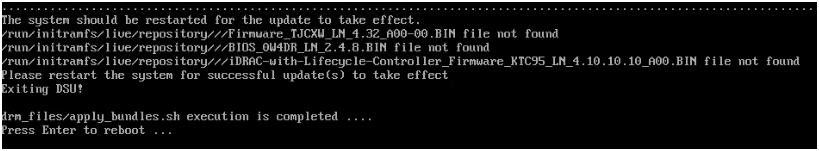

After completion, I hit Enter to reboot

Dell-esxi-maint-21



When the host has booted up and reported back in vSphere, I will update it using VMware Update Manager. First I check Compliance

Dell-esxi-maint-22



I click Remediate

Dell-esxi-maint-23



Confirm to install 10 updates, Remediate…

Dell-esxi-maint-24



Prior to updating my host, it is at build VMware ESXi, 6.7.0, 15018017

Dell-esxi-maint-25



After the hosts has been patched and automatically restarted, it is at build VMware ESXi, 6.7.0, 15820472

Dell-esxi-maint-26



I can now exit maintenance mode and let DRS run and rebalance the cluster. With that done, this update task is finished. I proceed using this same procedure and update my remaining hosts in my cluster.
