ControlUp On-Premise – Replace Insights self-signed certificate

Release date: October 17th 2023

Welcome to my ControlUp section. Here I will show how I replace the self-signed certificate for Insights with a domain CA signed certificate. As pr. ControlUp’s documentation here: Insights On-Premises: Replace Certificate, it is recommended to use a domain CA signed certificate for this role. Before I start I connect using Putty, log in with the cuadmin-user and verify the servers FQDN using the following command:

$ hostname
<FQDN IOP Server>

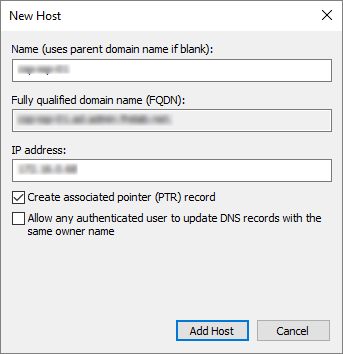

I also verify both forward and revers DNS resolution.

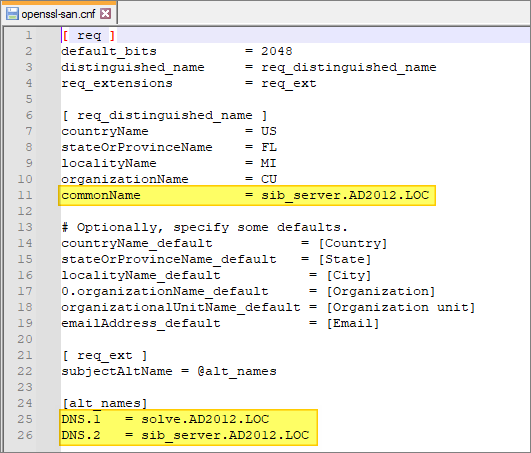

I download the file openssl-san.cnf  and adjust commonName and alt_names

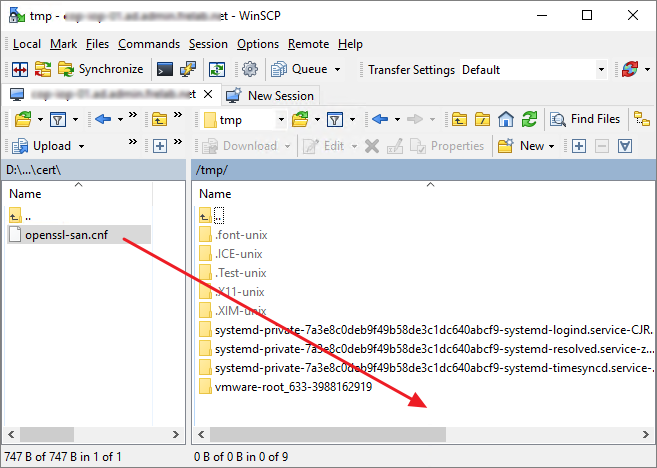

Once done, I copy the file to the /tmp folder in my IOP server using WinSCP

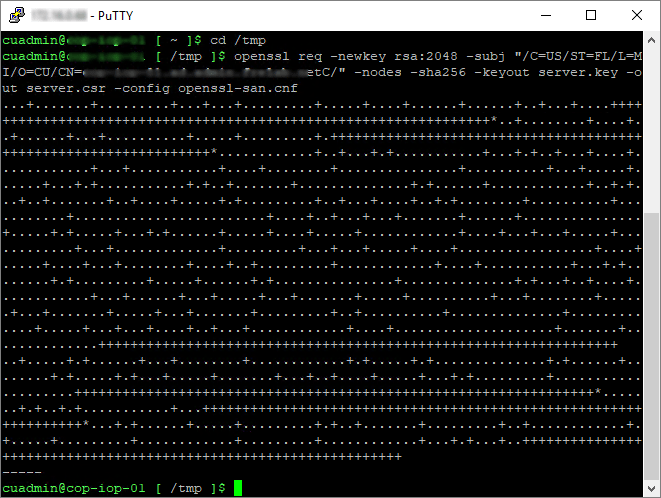

Using Putty, I run the following command from the /tmp folder:

openssl req -newkey rsa:2048 -subj "/C=US/ST=FL/L=MI/O=CU/CN=<FQDN IOP Server>/" -nodes -sha256 -keyout server.key -out server.csr -config openssl-san.cnf

This produces the two files server.csr and server.key

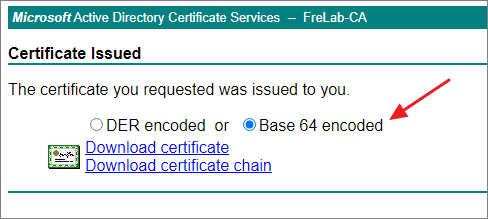

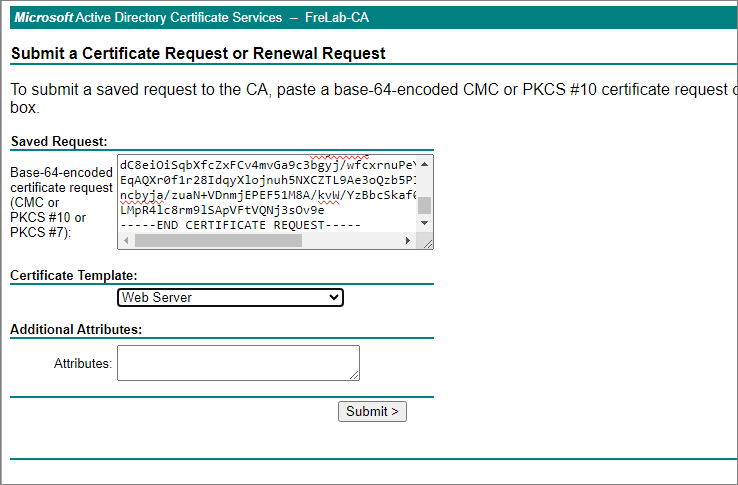

I download the server.csr file and submit the request to my domain CA before I download the certificate Base64 Encoded

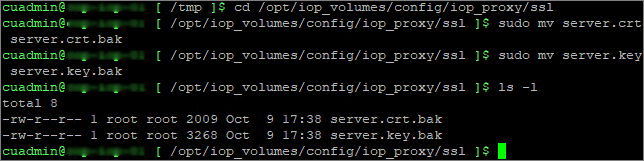

I back up the existing server.crt and server.key files in the folder: /opt/iop_volumes/config/iop_proxy/ssl.

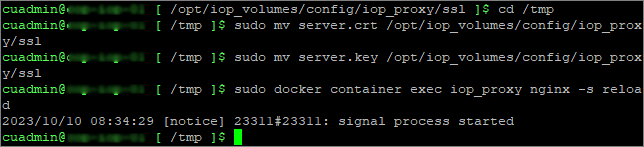

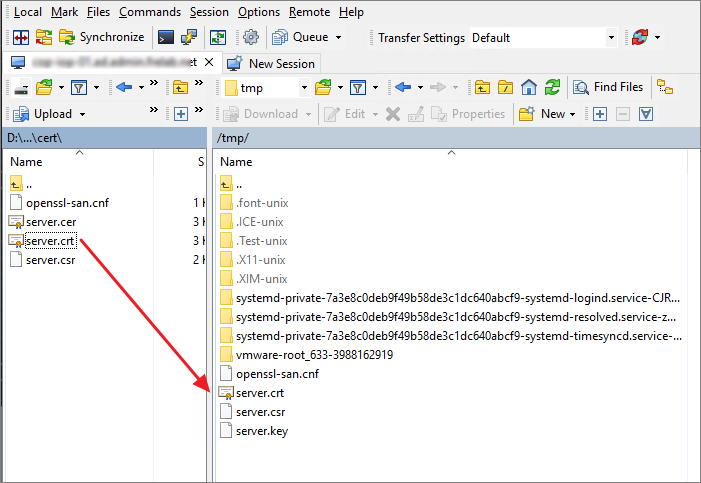

Next i copy the new server.crt to the IOP server using Winscp, before I copy both server.crt and the server.key file from /tmp to /opt/iop_volumes/config/iop_proxy/ssl.


sudo mv server.crt /opt/iop_volumes/config/iop_proxy/ssl
sudo mv server.key /opt/iop_volumes/config/iop_proxy/ssl

Finally, I reload NGINX using the following command:

sudo docker container exec iop_proxy nginx -s reload

I FINISH of by checking the IOP servers web-portal.
