Release date: November 10th 2025
Welcome to my Omnissa Horizon series. In this session I will describe how I upgraded my Horizon Connection Servers to v. 2506. According to the Release Notes below, these are some of the changes to the Horizon Connection Server:
What’s New
Support for Nutanix AHV – Limited Availability
Horizon 8 support for Nutanix AHV is now in Limited Availability (LA) as part of the Horizon 8 2506 release. Limited Availability (LA) is a phase of our software release cycle that means the Horizon 8 support for Nutanix AHV is a production-ready feature that is fully supported by Omnissa and ready for customer consumption by select, qualified customers. It is a step on the path towards General Availability, and as it is fully supported by Omnissa it can be used for production environments.
Administrators can deploy Horizon 8 infrastructure on Nutanix AHV and configure Horizon 8 to integrate with Nutanix Prism Central for provisioning automated pools. This is supported for on-premises and NC2 (Nutanix Cloud Clusters) deployments. Please see KB 6000988 for more details of functionality available in this LA release. Existing customers can contact their Omnissa sales representative or partner to request access to this feature. New customers can contact getHorizon8NutanixLA@omnissa.com to request access.
Previously I have shown how to do this with PowerShell and PowerCLI, in this session I will show how to do this manually, mainly due to the extensive changes in paths and names as describe by Omnissa here: Rebranding Changes in Omnissa Horizon Products (6000681)
Before I start, I review Omnissa’s documentation describing this topic:

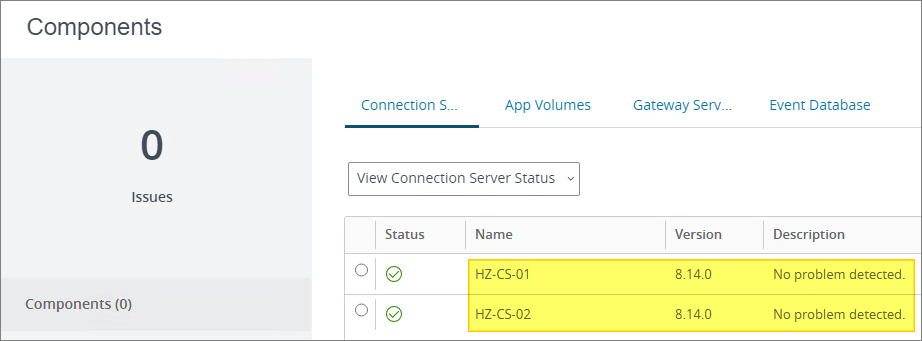

As I have a Cloud Pod Architecture, I also check that replication is flowing without errors, as described by Omnissa here:
In some cases, I have seen upgrade errors caused by replication problems and has had to seize the schema master node, as described by Omnissa here:
To identify the server holding the FSMO Schema Master role, I verify this in the System Health Dashboard in the Connection Server Console
This can also be verified by running the LDAP Browser (ldp.exe), as described by Omnissa here:
According to Omnissa’s official documentation, the Connection Server upgrade should be done as step 7 in the supported update sequence.
I start out by downloading the installation media from Omnissa Customer Connect

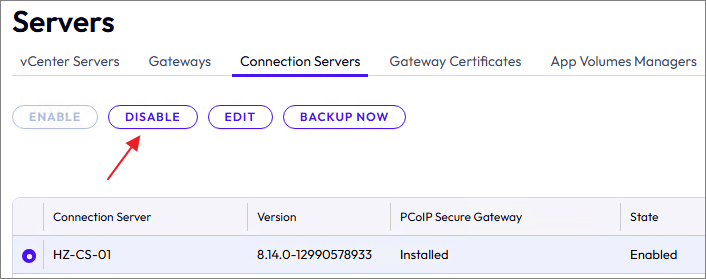

Before I start, I disable the Connection Server I’m going to upgrade
I log into the Connection Server thats not getting upgraded and transfer the SchemaMaster roles to this server. I allow replication to run and verify the status, before I continue.

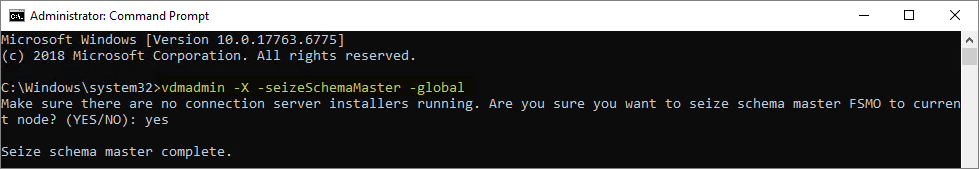

vdmadmin -X seizeSchemaMaster
vdmadmin -X seizeSchemaMaster -global
First, I verify the installed version:

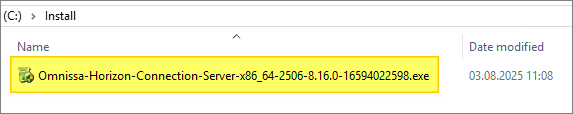

I start out by launching the installer

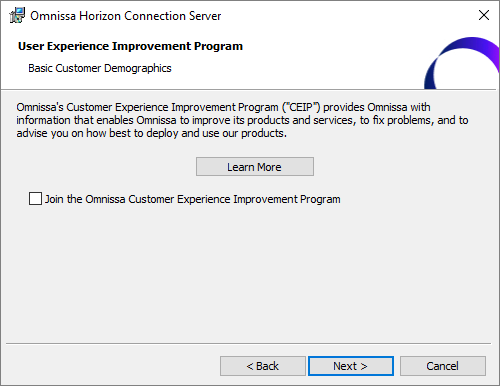

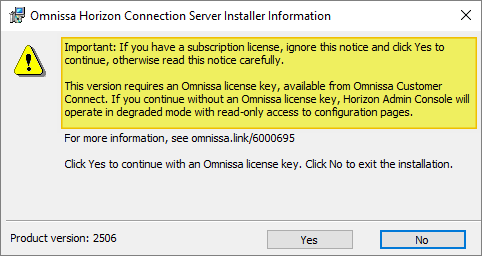

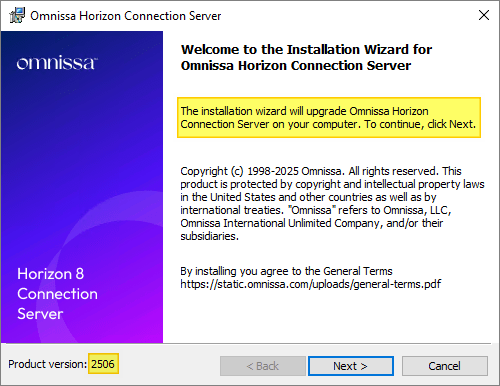

When the Installation Wizard opens and prompts to upgrade, Next, Next, Next…

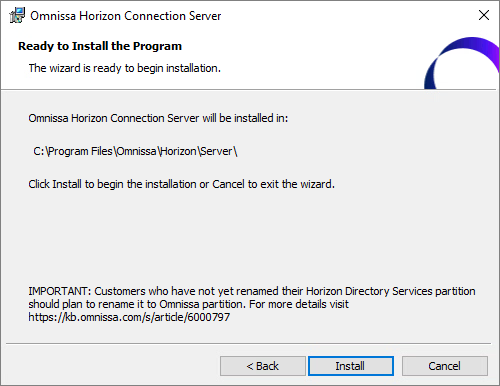

I confirm the destination folder, Next…
Once the installer finishes, click Finish…

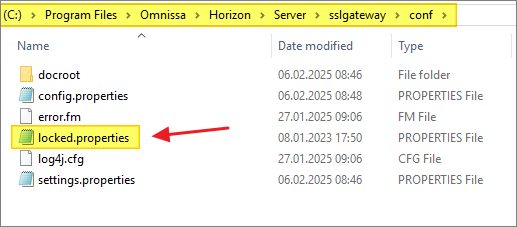

Before I restart the Connection Server, I verify the locked.properties-file, as I use UAG’s in my infrastructure
Once the installer has upgraded the Connection Server, I verify the installed version

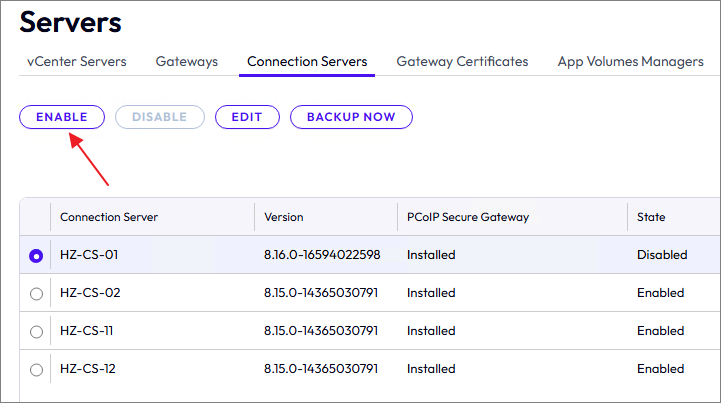

I can now verify that all setting are correct before I re-enable my upgraded Connection Server
I transfer the Schema Master roles to my upgraded Connection Server, wait for replication and verify status, before I proceed with upgrading my replica servers.
When my replica server is upgraded, I upgrade the connection server in my remote pod and verify that there are no errors after the upgrade.
With the Connection Servers upgraded, I can now proceed with upgrading the Horizon Enrollment Server, covered here: Horizon – Upgrade Enrollment Server to v. 2506
