Linux – FOG Server – Deploy Virtual Machine

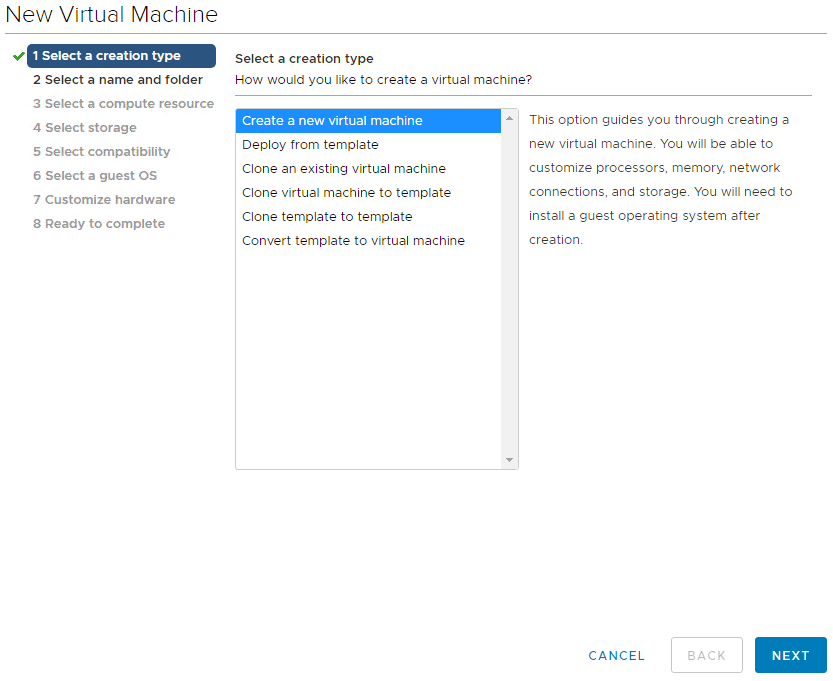

Welcome to my FOG Server series. In this session I will describe how I deployed the virtual machine for my FOG Server. This process is pretty straight forward and done from VMWare vSphere Client. I begin with launching the “New Virtual Machine” wizard. I Select “Create a new virtual machine”, Next…

Deploy_Virtual_Machine-01

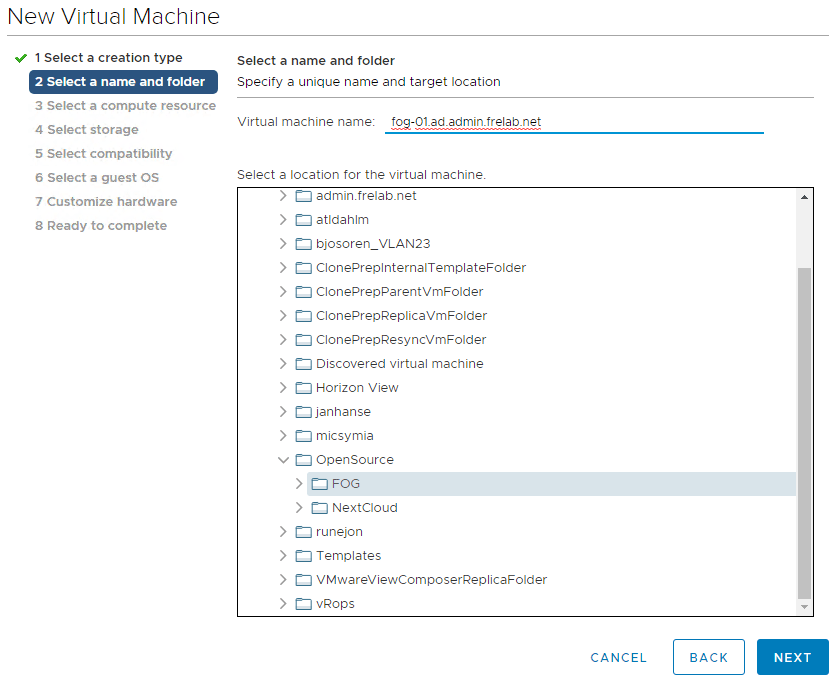

I give the virtual machine a name and select a location, Next…

Deploy_Virtual_Machine-02

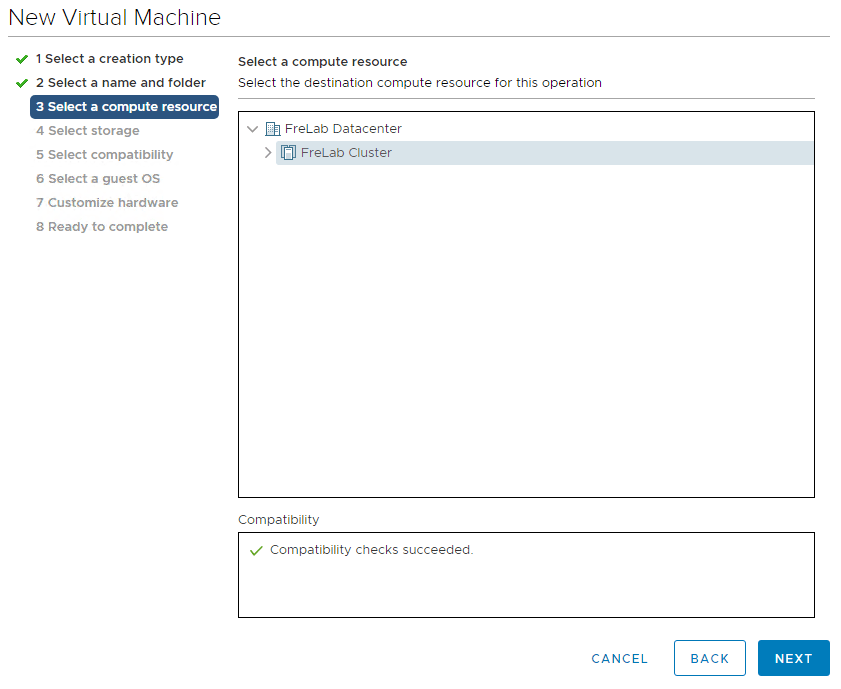

Select a compute resource, Next…

Deploy_Virtual_Machine-03

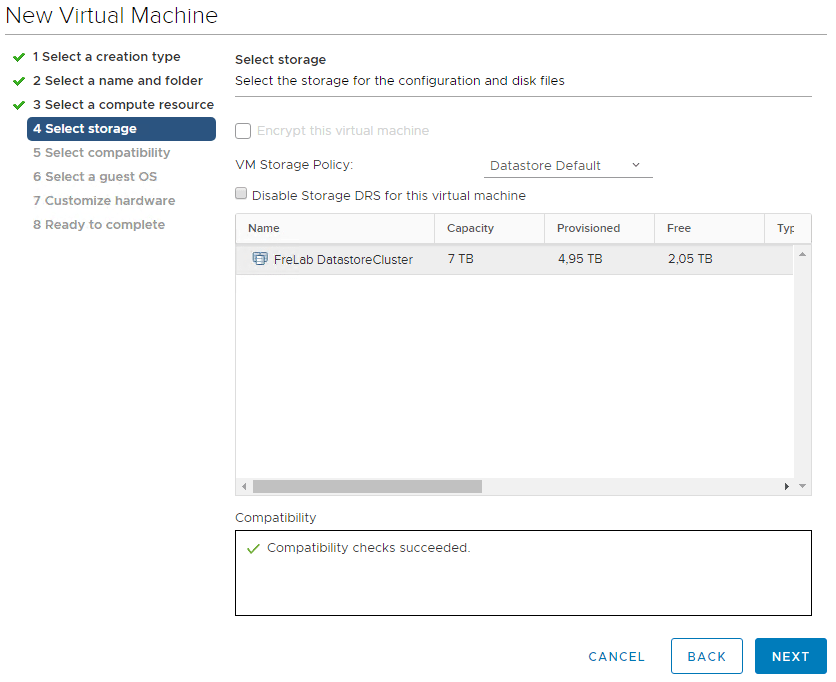

I choose a storage location, in my case this will be my Datastore Cluster, Next

Deploy_Virtual_Machine-04

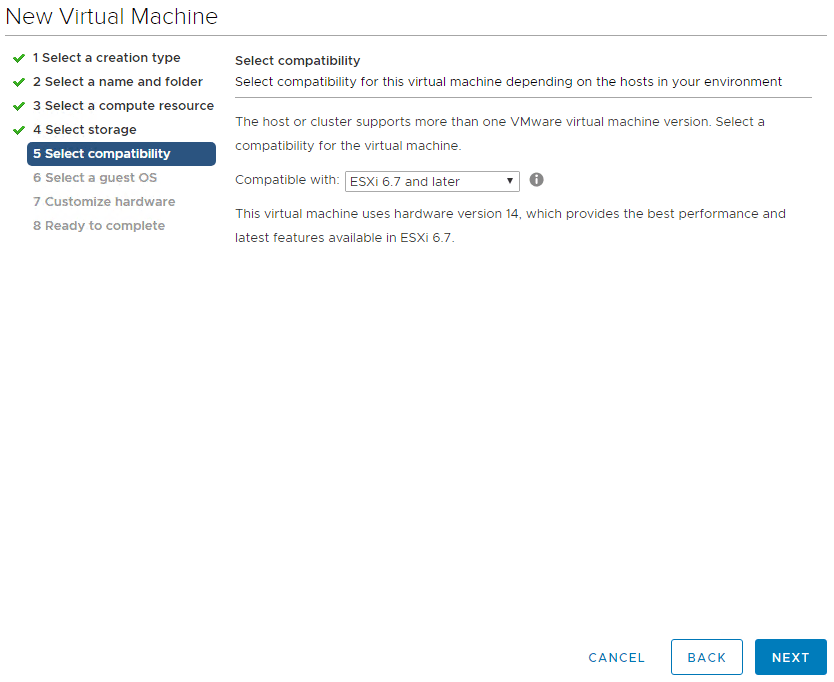

As I have a vSphere 6.7 environment, I select this compatibility, Next…

Deploy_Virtual_Machine-05

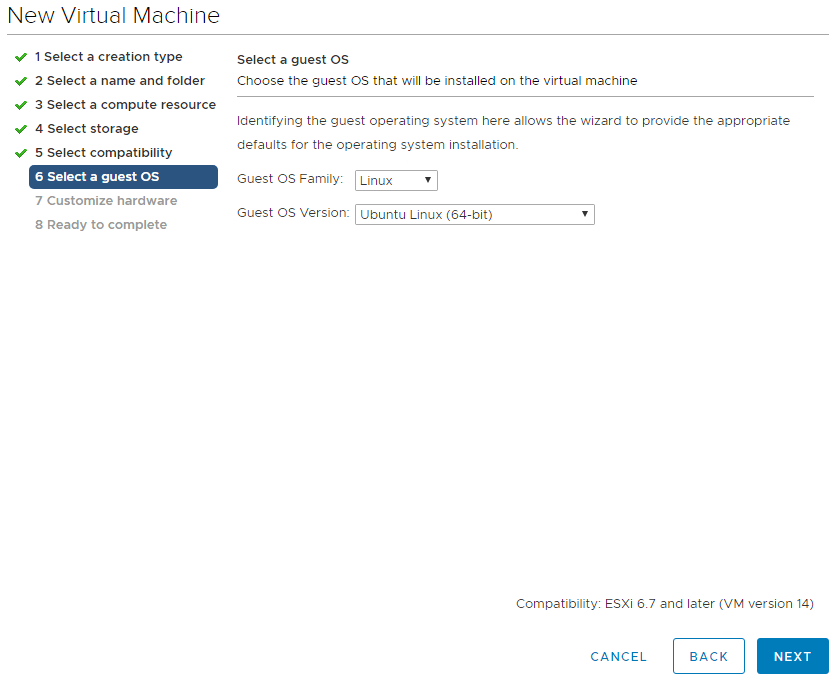

I select OS Family and Version, Next…

Deploy_Virtual_Machine-06

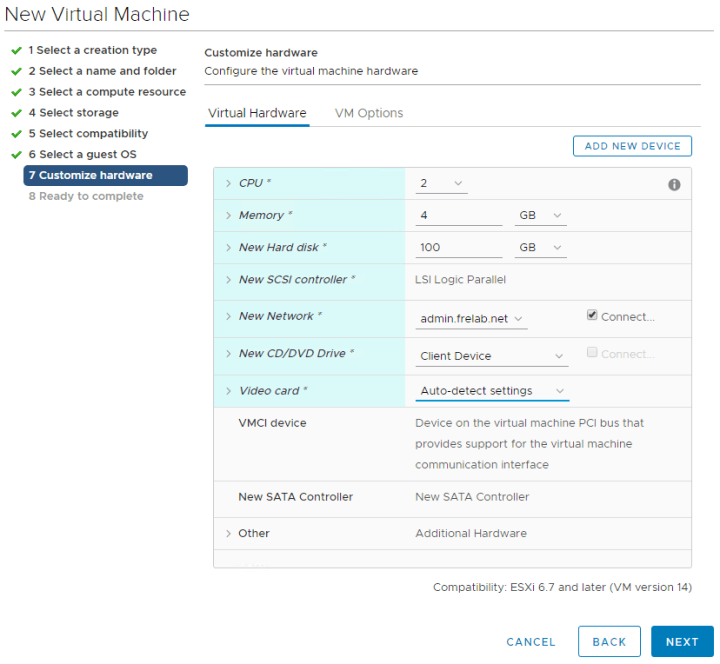

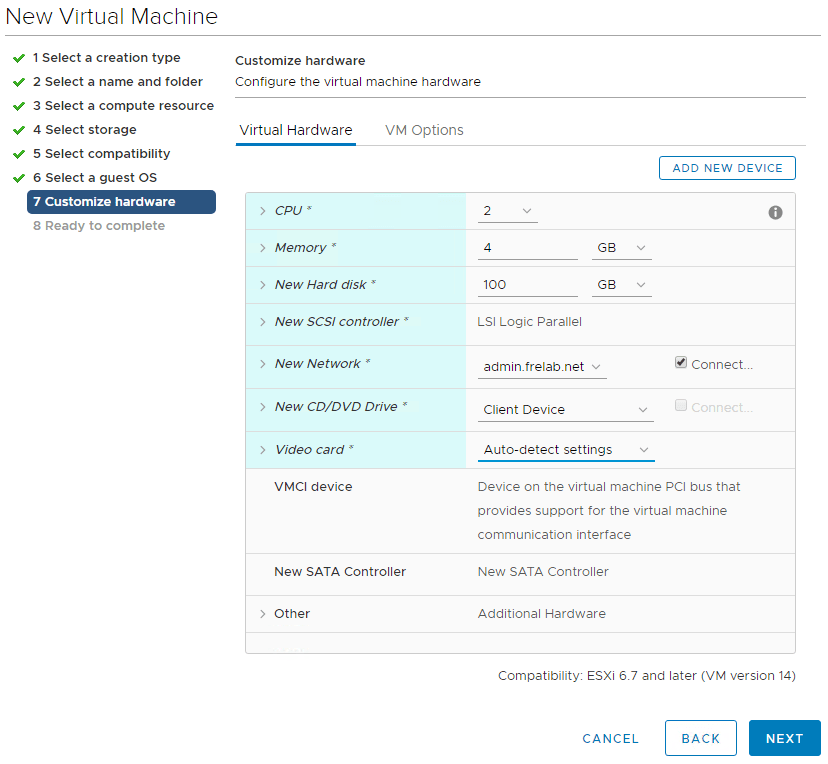

From the Virtual Hardware tab, I adjust the virtual hardware according to my needs. Note that I don’t attach any ISO to the CD/DVD Drive at this time.

Deploy_Virtual_Machine-07

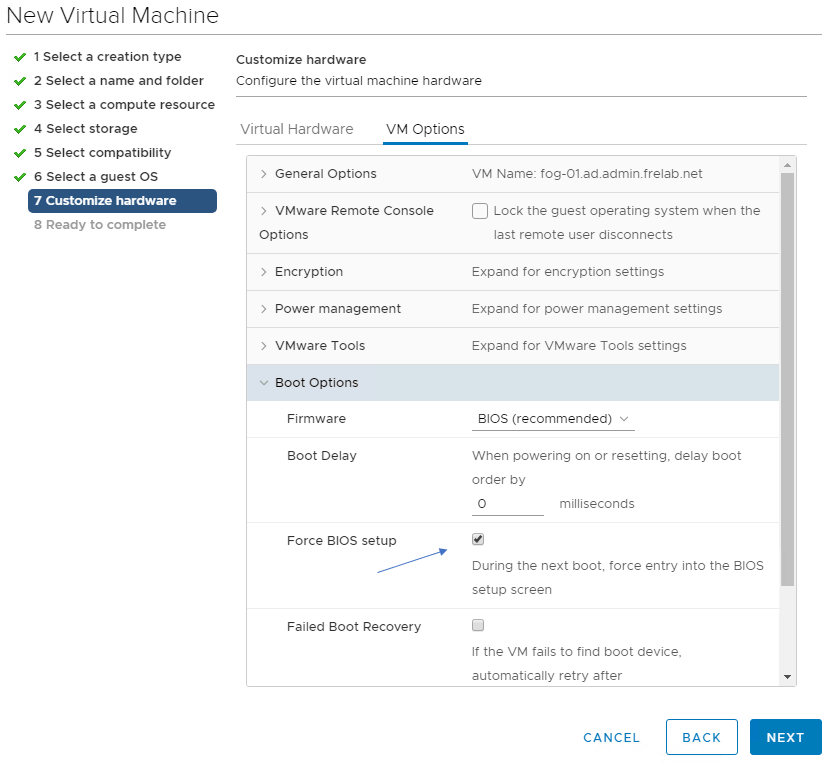

In VM Options, I select to boot to BIOS next time, Next…

Deploy_Virtual_Machine-08

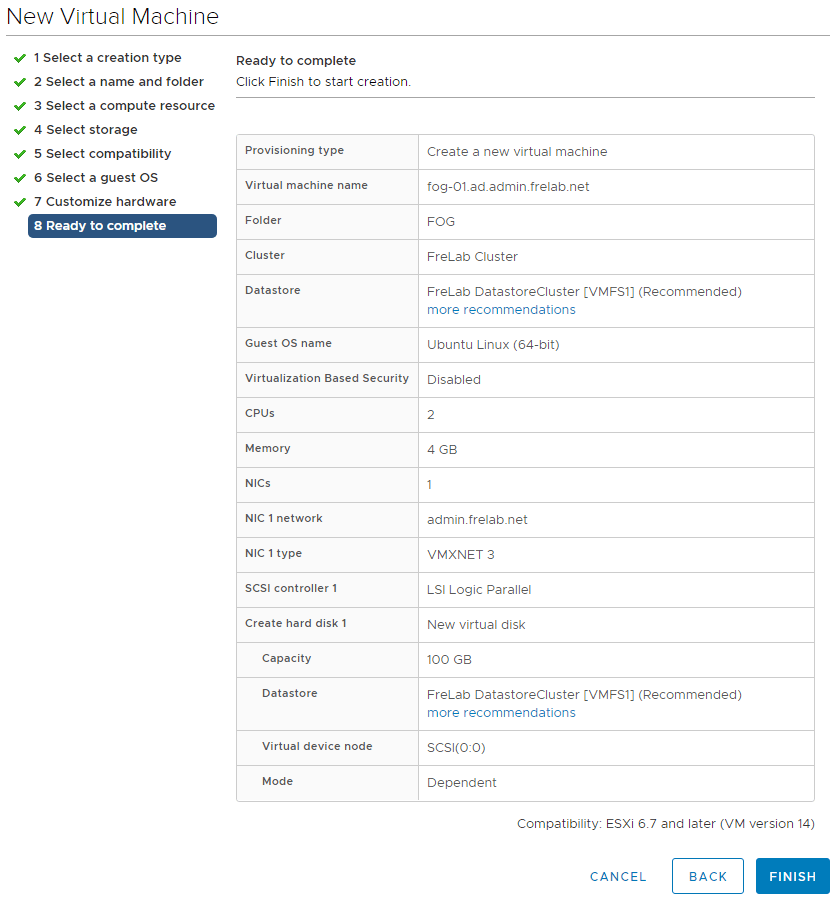

Everything looks fines, Finish…

Deploy_Virtual_Machine-09

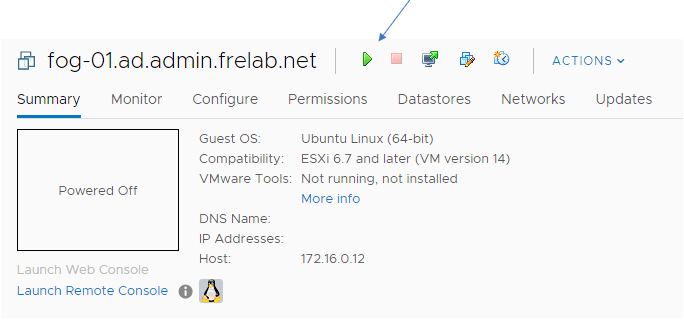

Once the virtual machine is created, I power it up.

Deploy_Virtual_Machine-10

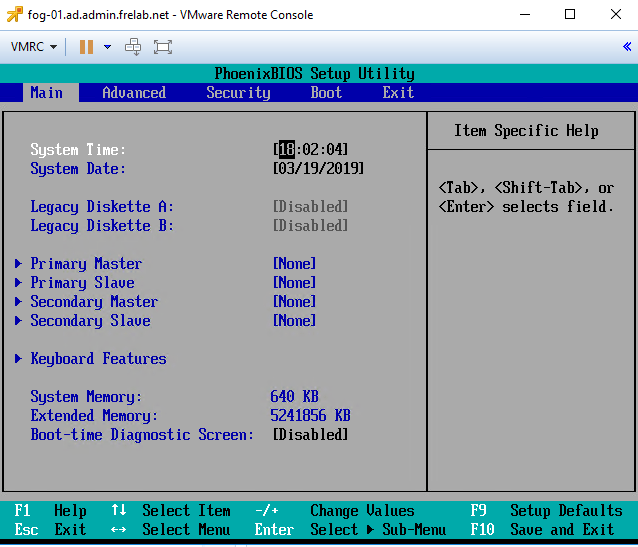

I open the VMware Virtual Console and can see the BIOS-screen

Deploy_Virtual_Machine-12

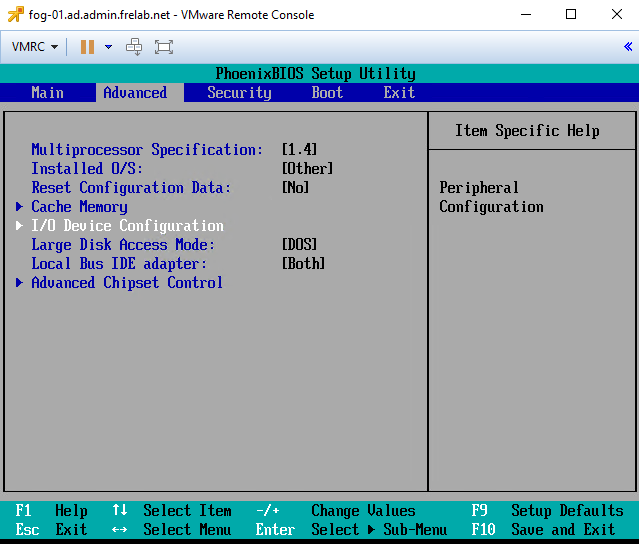

From the Advanced tab, I select I/O Device Configuration

Deploy_Virtual_Machine-13



I disable all serial, parallel and floppy devices.

Deploy_Virtual_Machine-14

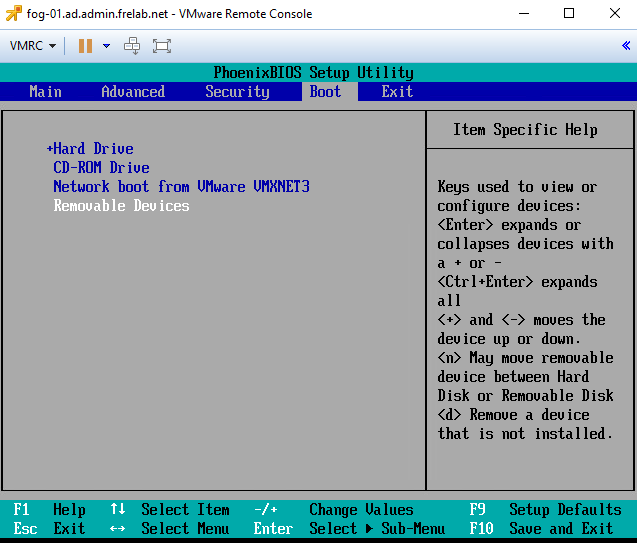

From the Boot tab, I edit the boot order, so I can boot the virtual machine from an ISO file.

Deploy_Virtual_Machine-15

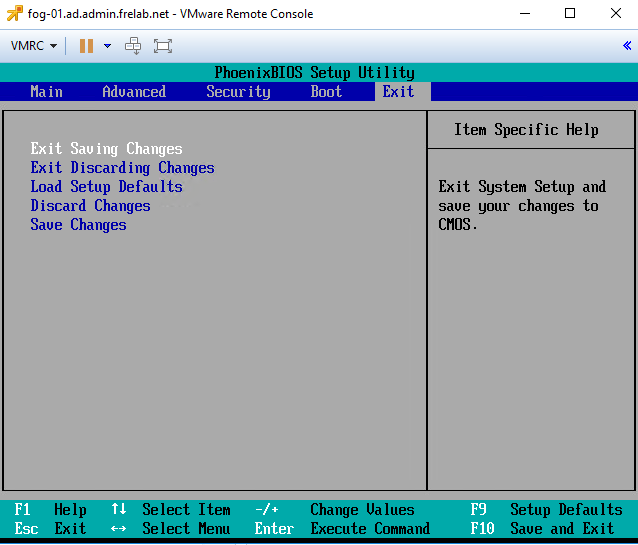

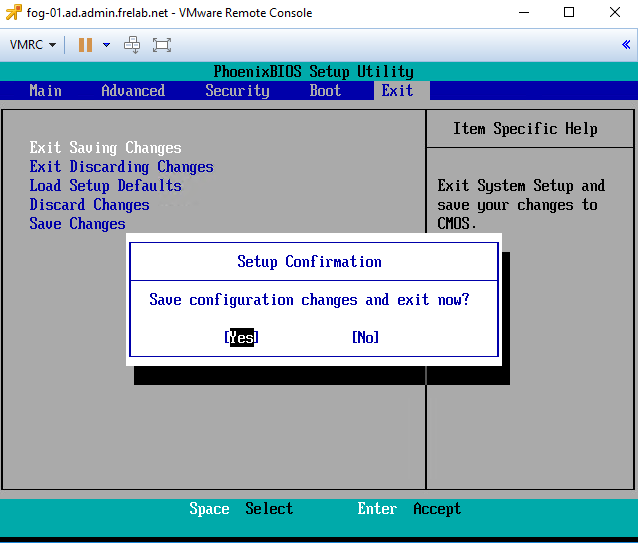

I save settings and exit

Deploy_Virtual_Machine-16



Deploy_Virtual_Machine-17



Next I shut down the virtual machine.

Deploy_Virtual_Machine-18

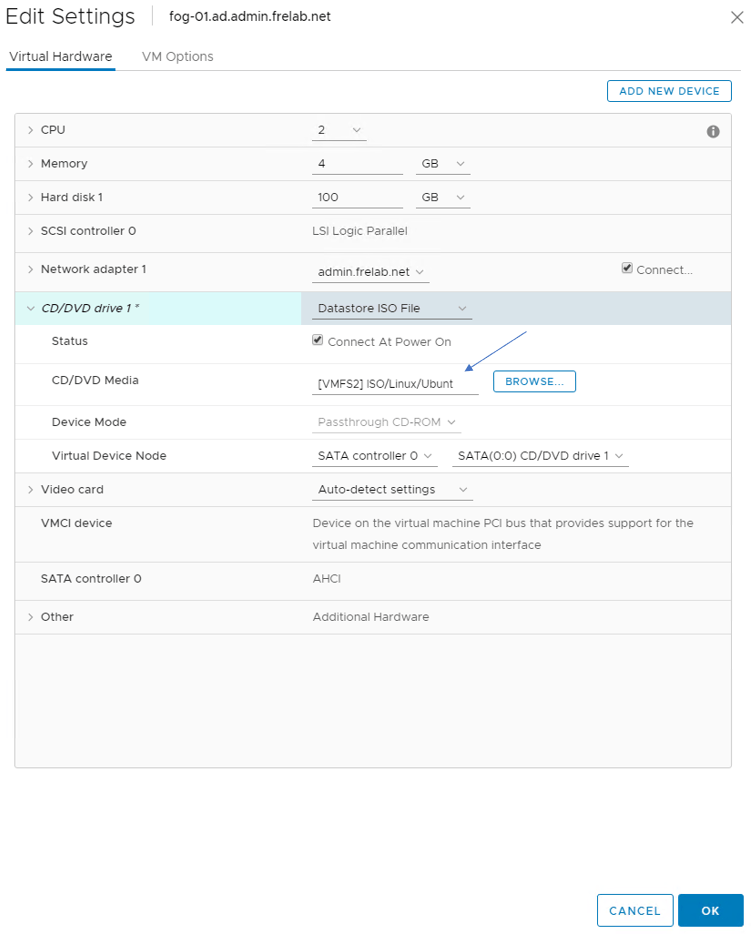

Finally I attach the Ubuntu Server ISO-file, select “Connect At Power On”, and power on the virtual machine.

Deploy_Virtual_Machine-19



This finishes my session about deploying a virtual machine to host FOG server. I can now start installing the server OS, Ubuntu Server 16.04. This I have made a session about posted here: Linux – FOG Server – Install Ubuntu Server OS
