Linux – FOG Server – Install Ubuntu Server OS

Welcome to my FOG Server series. In this session I will show how I installed the Ubuntu Server 16.04 that will host FOG Server. The Ubuntu server installation is pretty “vanilla”, except the partitioning part, which I have done accordingly to advice from FOG, posted here: Fog on Ubuntu 16.04 Server

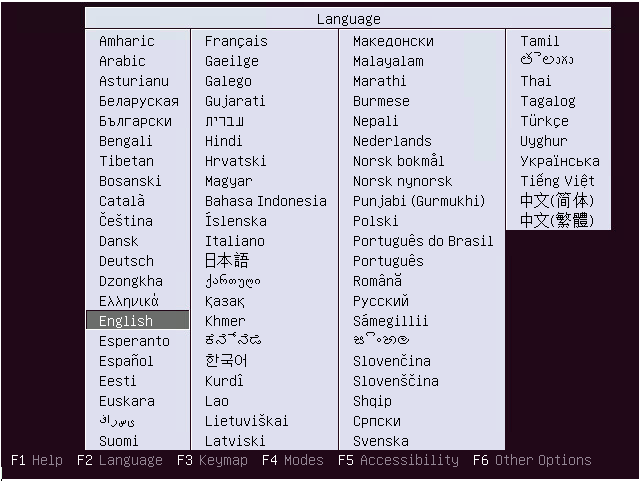

I select English

Install Ubuntu Server OS-01



I select “Install Ubuntu Server”

Install Ubuntu Server OS-02



I choose the language used during the installation

Install Ubuntu Server OS-03



I select “Other” as I’m not in any of the locations listed, I browse to the correct location

Install Ubuntu Server OS-04



Install Ubuntu Server OS-05



Install Ubuntu Server OS-06



I select “United States”

Install Ubuntu Server OS-07

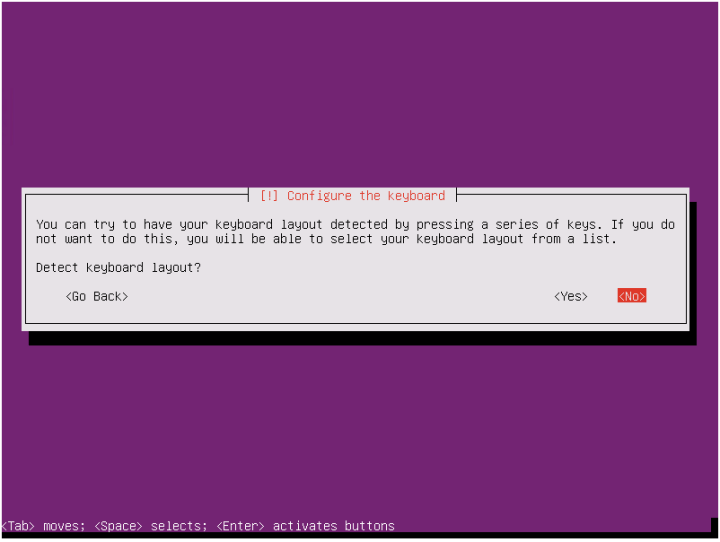

I will configure the keyboard layout manually, No…

Install Ubuntu Server OS-08

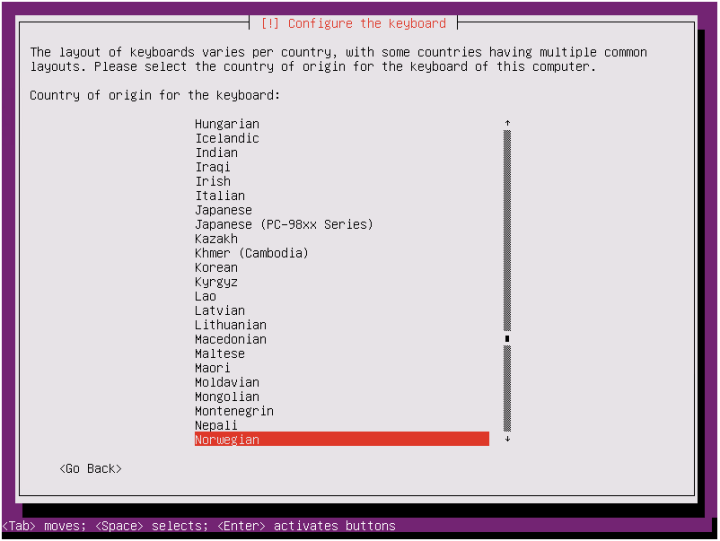

I select Norwegian as this is my language

Install Ubuntu Server OS-09



Install Ubuntu Server OS-10



Install Ubuntu Server OS-11

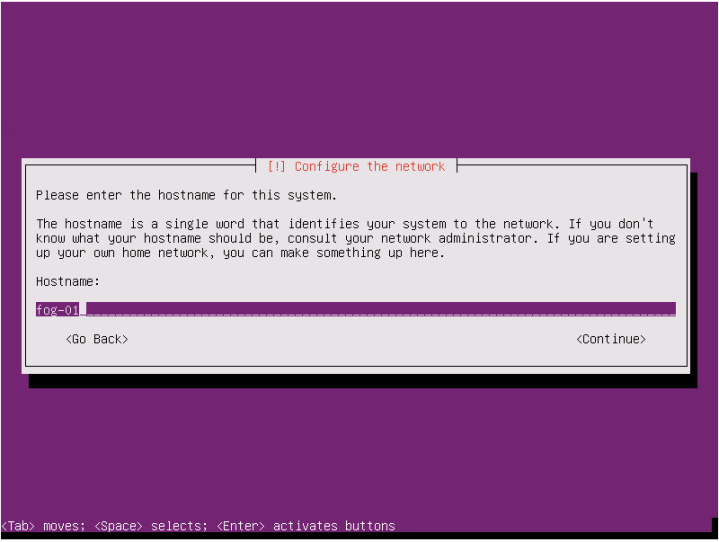

I enter a hostname for my server, fog-01 (Not very imaginative, I confess)

Install Ubuntu Server OS-12

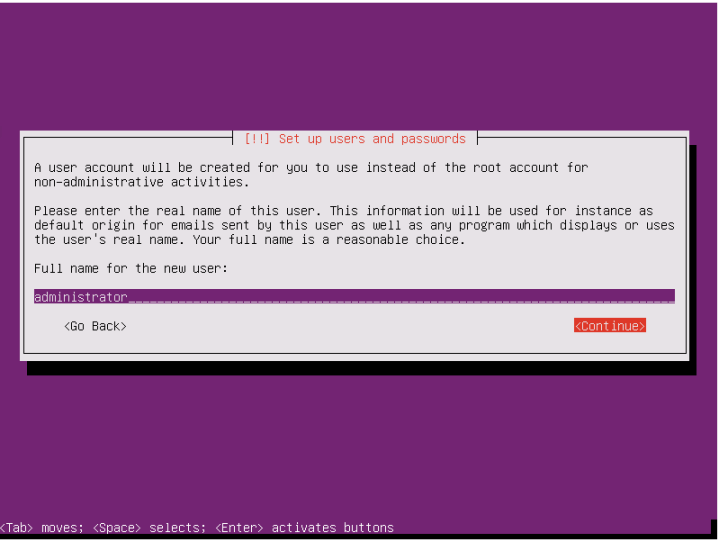

As I have a background in the “Windows-world”, i wrongly chose Administrator as username, in hindsight, this wasn’t optimal.

Install Ubuntu Server OS-13



Install Ubuntu Server OS-14

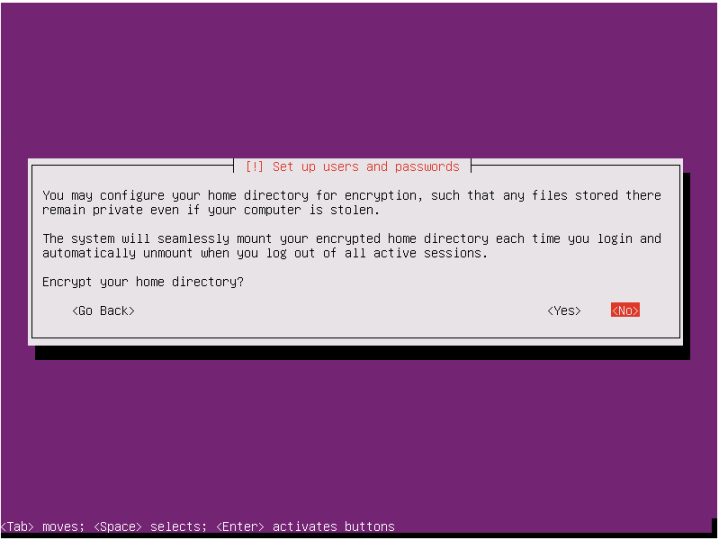

No encryption

Install Ubuntu Server OS-15



The time-zone is perfect, Yes…

Install Ubuntu Server OS-16



I set up the partitions by following the guidelines posted here: Ubuntu 16 04 Server – Optimal FOG Partitioning

I will create 3 partition:

  • Primary partition for operating system etc: 20 GB
  • Logical partition for Swap: 4 GB
  • Logical partition for my images: Remaining disk-space



I start out by choosing Manual…

Install Ubuntu Server OS-17



I will use my entire disk, sda, for this setup

Install Ubuntu Server OS-18



Yes

Install Ubuntu Server OS-19



I choose my FREE SPACE

Install Ubuntu Server OS-20

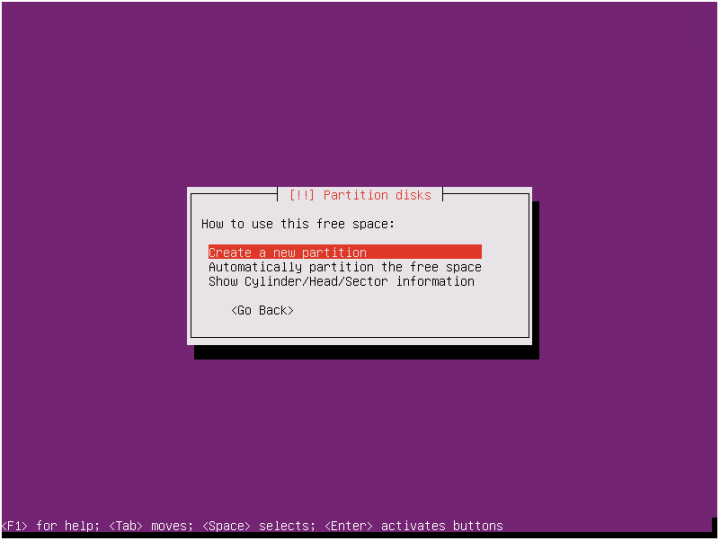

Install Ubuntu Server OS-21

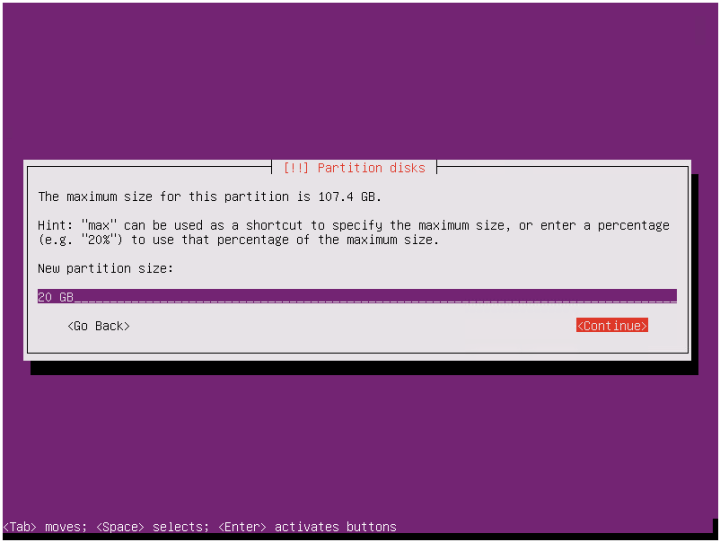

For this first partition, I will carve out 20 GB, Continue

Install Ubuntu Server OS-22



This will be the Primary partition

Install Ubuntu Server OS-23



Install Ubuntu Server OS-24

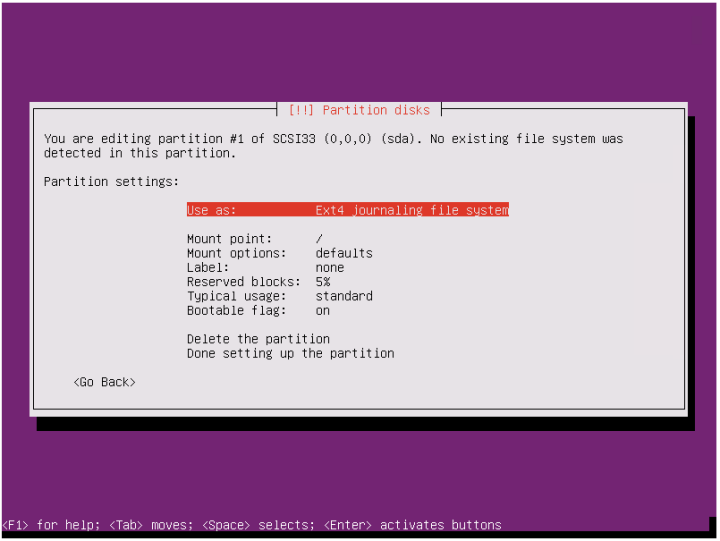

I set the Bootable flag to On

Install Ubuntu Server OS-25



Install Ubuntu Server OS-26



Install Ubuntu Server OS-27

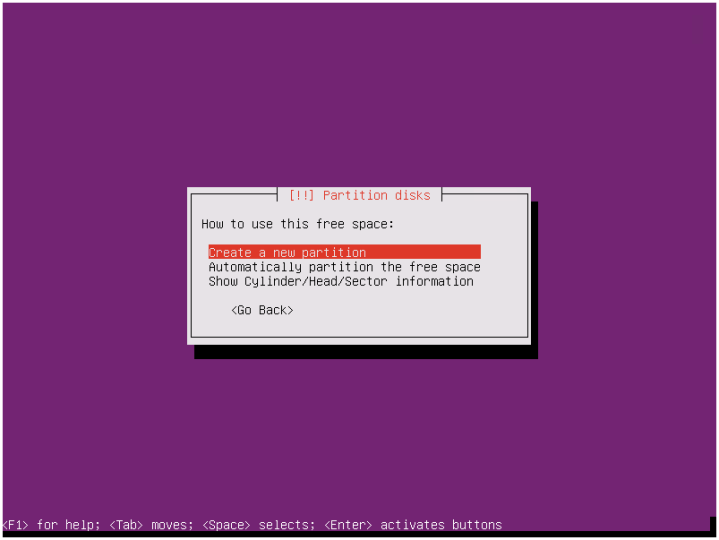

I will now proceed and create a logical Swap partition in FREE SPACE

Install Ubuntu Server OS-28



Install Ubuntu Server OS-29



As this will be the SWAP partition, I carve out 4 GB for this.

Install Ubuntu Server OS-30



Install Ubuntu Server OS-31

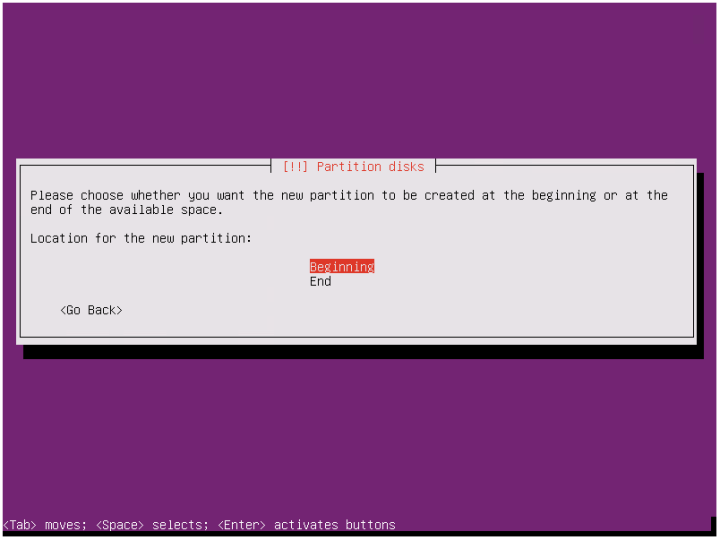

Install Ubuntu Server OS-32



Install Ubuntu Server OS-33

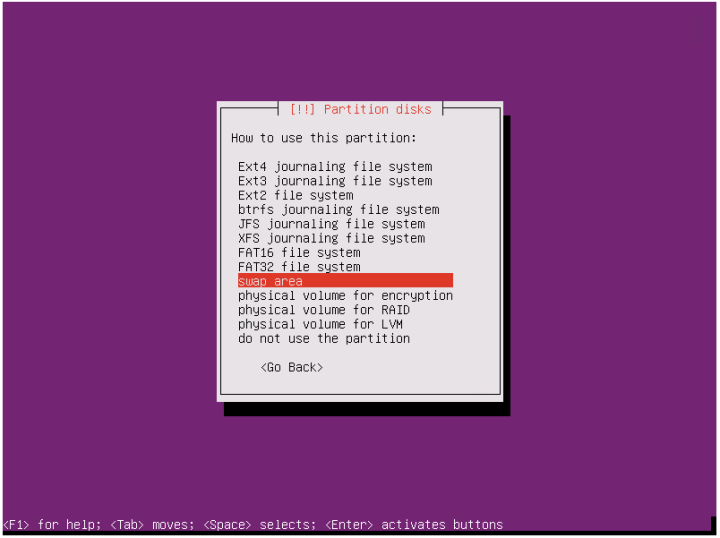

This will be used as “swap area”

Install Ubuntu Server OS-34



Install Ubuntu Server OS-35

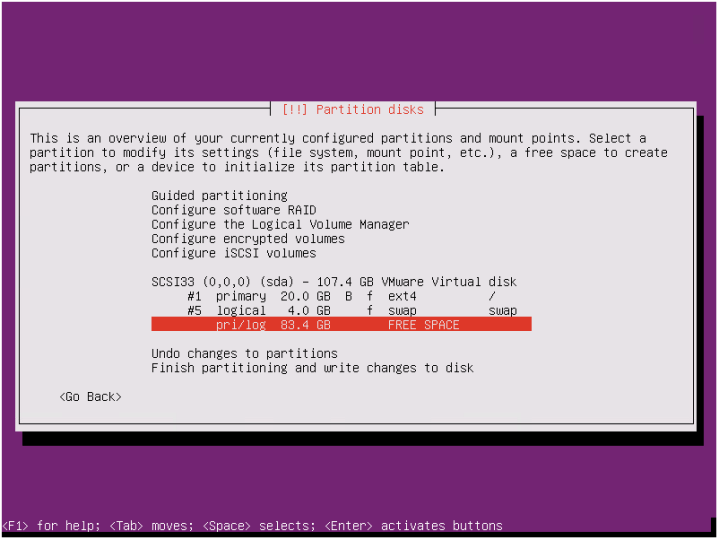

Finally I create a logical partition in FREE SPACE for my images, assigning the remaining disk space.

Install Ubuntu Server OS-36



Install Ubuntu Server OS-37



Install Ubuntu Server OS-38



Install Ubuntu Server OS-39



Install Ubuntu Server OS-40

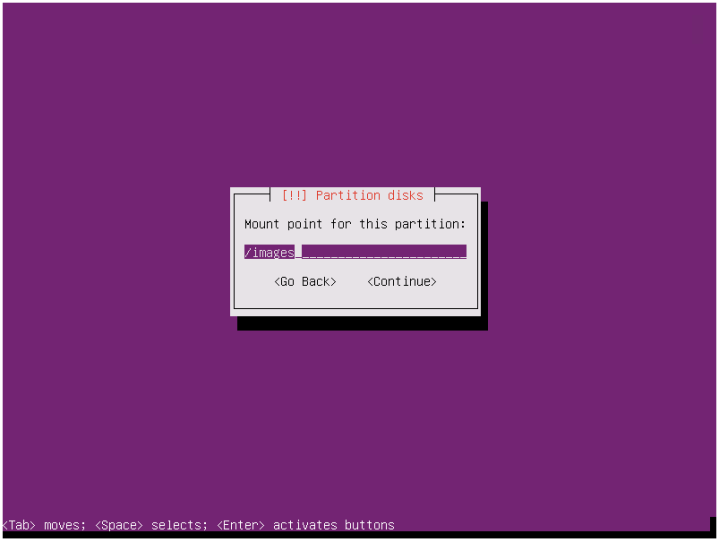

I change the mount point to /images

Install Ubuntu Server OS-41



Install Ubuntu Server OS-42



Install Ubuntu Server OS-43

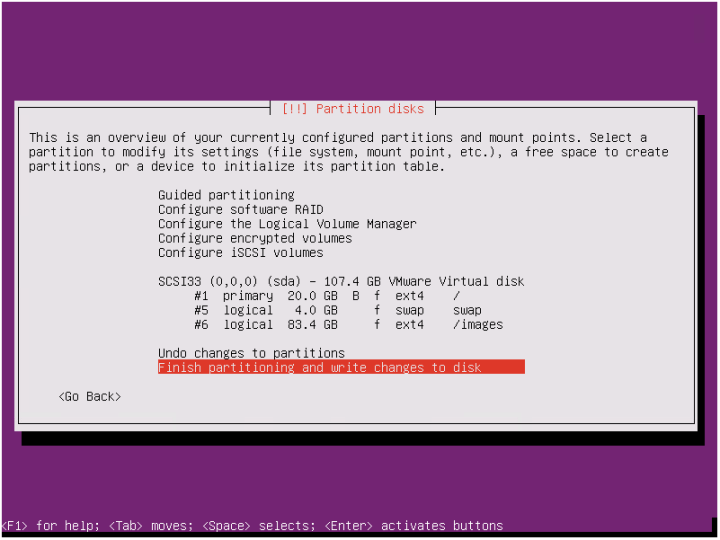

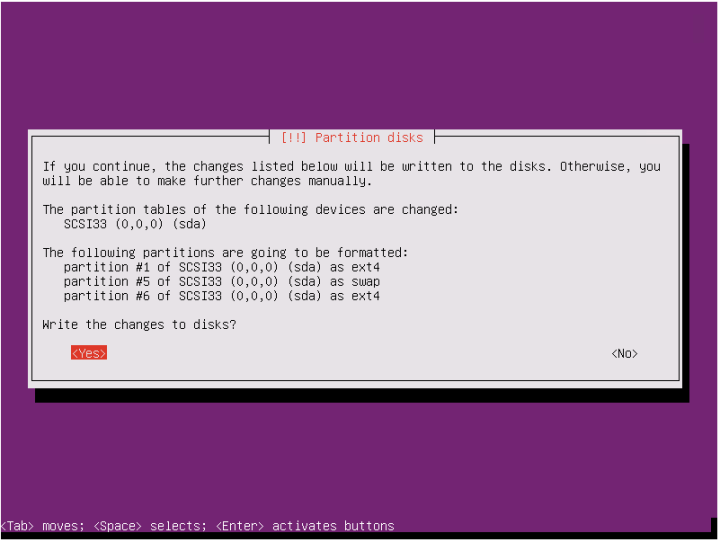

Partitioning done….

Install Ubuntu Server OS-44



Yes…

Install Ubuntu Server OS-45

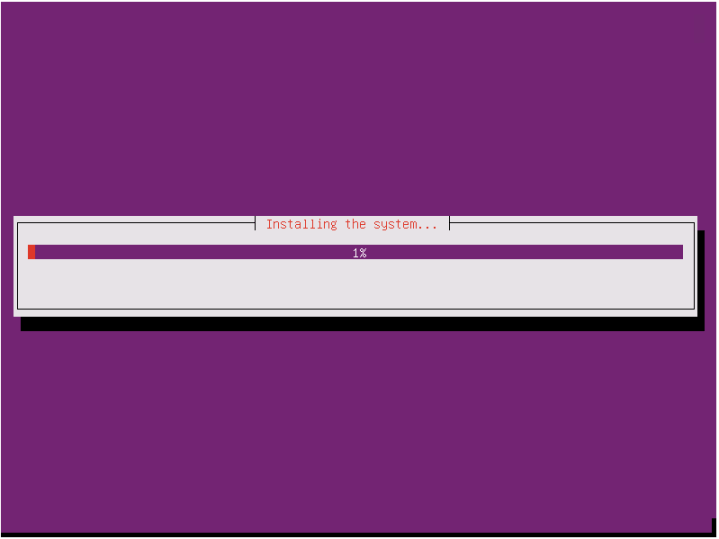

Install Ubuntu Server OS-46



Install Ubuntu Server OS-47

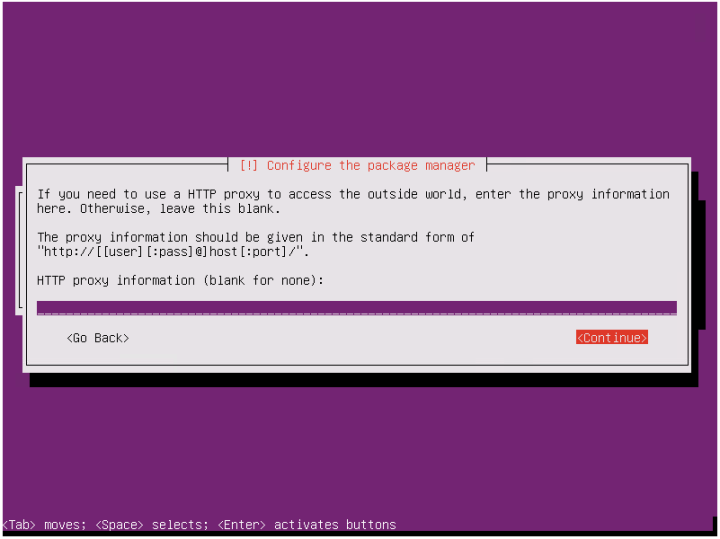

I don’t use any Proxy in my environment, Continue…

Install Ubuntu Server OS-48



No automatic updates…

Install Ubuntu Server OS-49



I make sure to add OpenSSH server, Continue…

Install Ubuntu Server OS-50



Yes…

Install Ubuntu Server OS-51



Continue…

Install Ubuntu Server OS-52



After the server has restarted, I shut down and remove the ISO from the virtual machine, boot to BIOS and change boot order to HDD as primary.

Install Ubuntu Server OS-53



This concludes the Operation System install session. I can now proceed with some basic configuration of the Ubuntu server, covered here:
