VMware App Volumes – Upgrade Agent to v. 2206

Release date: September 4th 2022

Welcome to my VMware App Volumes series. In this session I will describe how I upgraded the VMware App Volumes Agent in my Horizon Template to v. 2206. According to VMware’s official documentation, this should be done as step 11 in the supported update sequence, as shown below.

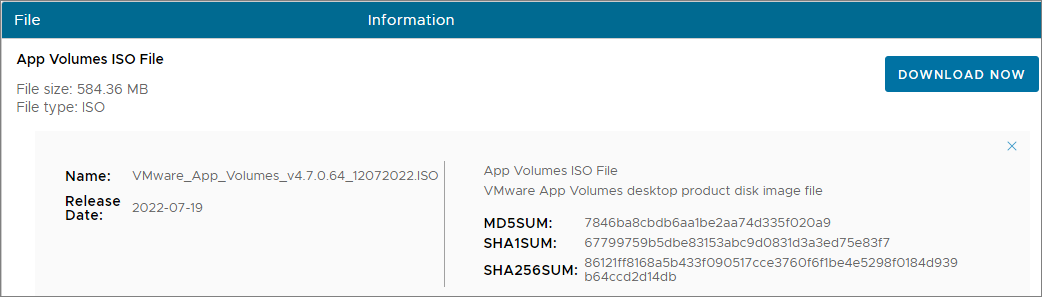

I start out by downloading the installation media from VMware Customer Connect

As I’ve gone over to using MDT to create templates, I will update the App Volumes Agent in the Deployment Share and run through the task sequence to create a new template. To update the App Volumes Agent in the Deployment Share, I will first delete the existing agent from the Deployment Share

Next, I copy the new VMware App Volumes Agent msi-file to the “AppVolumesAgent” folder in the Deployment Share. It is important to make sure that the executable isn’t blocked by Windows Security, therefore I right-click the msi-file, select Properties and tick the Unblock box, if it exists. This also applies to the other executable files under the “D:DeploymentShareVMware” folder.

When I now open the Deployment Workbench MMC, the new App Volumes Agent will be identified correctly

Finally, I update the deployment Share, before I run through a task sequence and push the new template to my desktop pool. In scenarios with persistent desktop pools, I would advice using “silent install” upgrades, as described by VMware here: Upgrade App Volumes Agent Silently

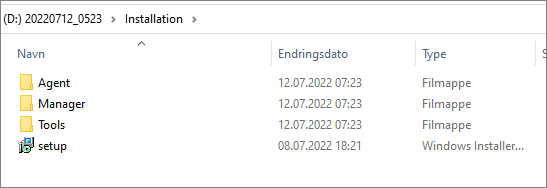

I will also update my App Volumes Capture VM by doing a manual upgrade of the App Volumes Agent. I start out by powering on the VM, attach the ISO-file and launch the setup-file

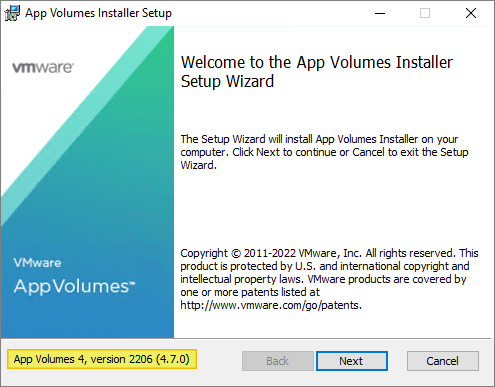

The App Volumes Installation Wizard launches, Next…

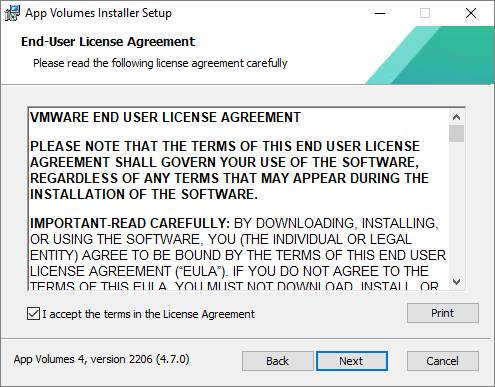

I accept the license terms, Next…

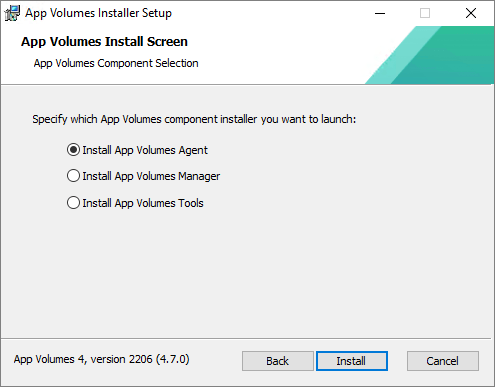

In the App Volumes Install Screen, I select “Install App Volumes Agent”, Install…

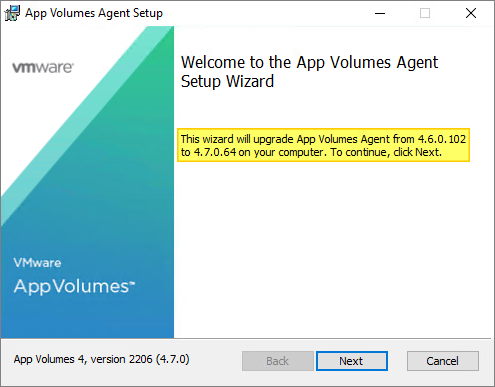

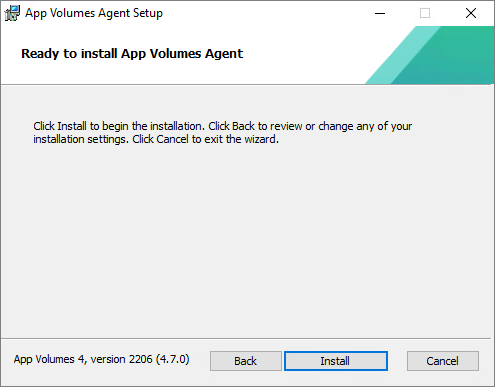

This selection launches the App Volumes Agent Upgrade Wizard, Next…

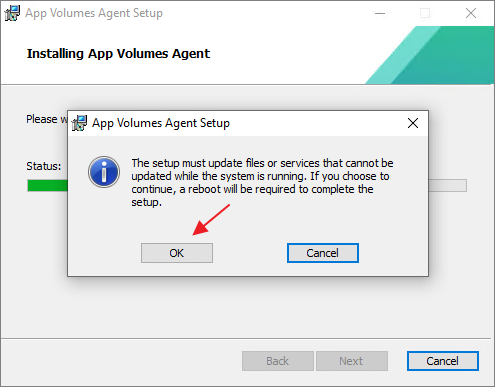

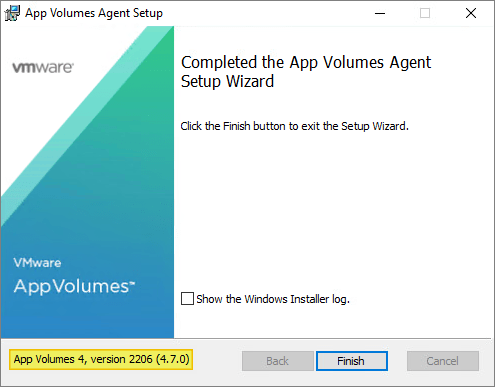

When the App Volumes Installation Wizard finishes, click Finish…

Click Yes to reboot the VM

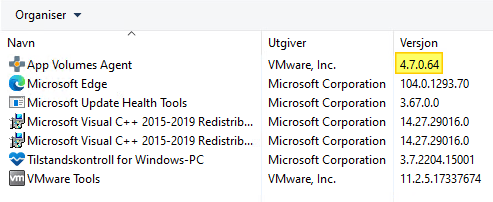

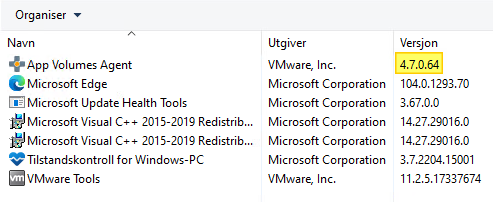

Once the VM has rebooted, I verify the new version in Control Panel. Finally, I prepare the VM for Application Capture by shutting it down and take a snapshot.

This completes my upgrade of the VMware App Volumes Agent. My next logical step would now be to upgrade the VMware App Volumes Templates, this I have posted here: VMware App Volumes – Upgrade Templates to v. 2206
