VMware App Volumes – Upgrade Agent to v. 2212

Release date: January 16th 2023

Welcome to my VMware App Volumes series. In this session I will describe how I upgraded the VMware App Volumes Agent in my Horizon Template to v. 2212. According to VMware’s official documentation, this should be done as step 11 in the supported update sequence, as shown below.

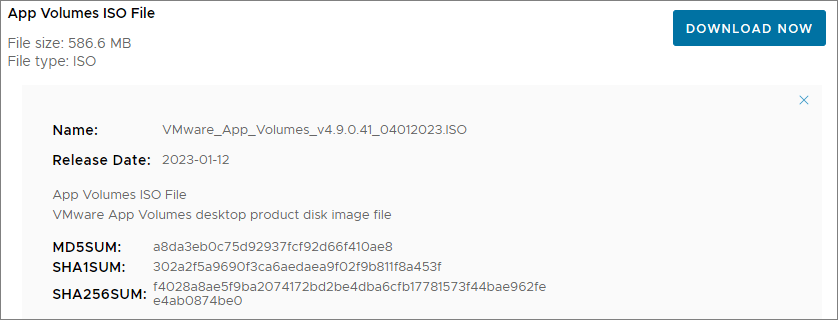

I start out by downloading the installation media from VMware Customer Connect

As I’ve gone over to using MDT to create  VMware Horizon Windows images, described here: Automating Template Creation & Maintenance, I will update the App Volumes Agent in the Deployment Share, and run through the task sequence to create a new Windows image. Before I begin, I open the task sequence and can see that it has found the 4.8.0.33 build in the Deployment Share.

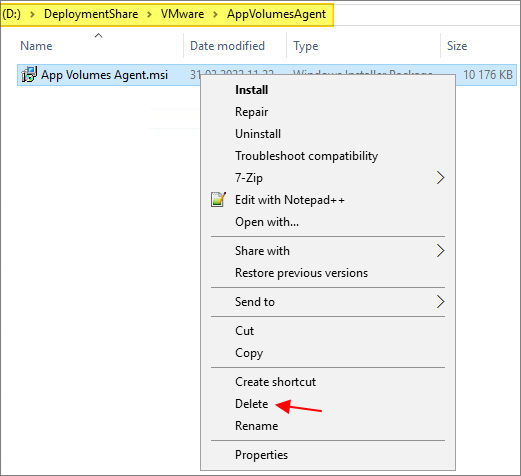

I close the Deployment Workbench MMC before I continue.. To update the App Volumes Agent in the Deployment Share, I will first delete the existing agent from the Deployment Share

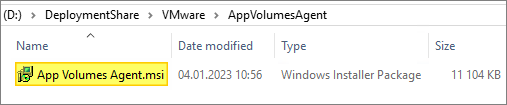

Next, I copy the new VMware App Volumes Agent msi-file to the “AppVolumesAgent” folder in the Deployment Share. It is important to make sure that the executable isn’t blocked by Windows Security, therefore I right-click the msi-file, select Properties and tick the Unblock box, if it exists. This also applies to the other executable files under the “D:\DeploymentShare\VMware” folder.

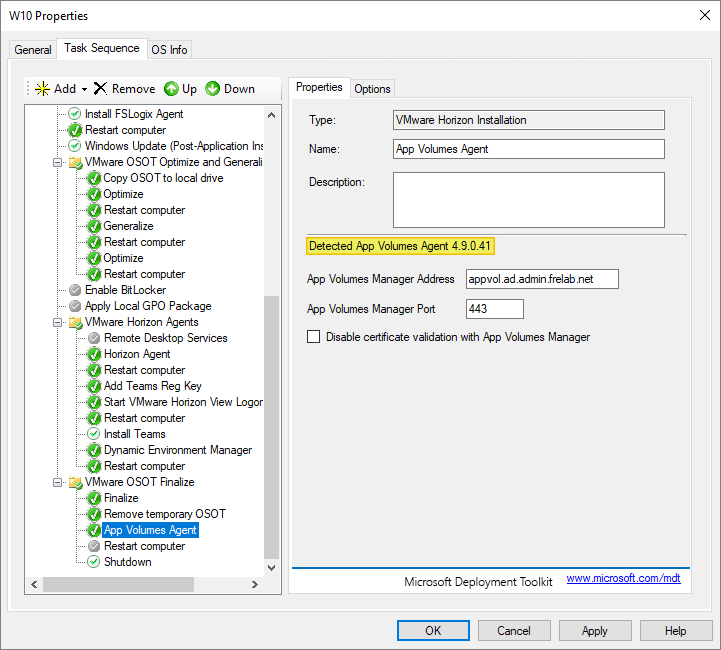

When I now open the Deployment Workbench MMC, the new App Volumes Agent will be identified correctly

Finally, I update the deployment Share, before I run through a task sequence and push the new template to my desktop pool.

This completes my upgrade of the VMware App Volumes Agent. My next logical step would now be to upgrade the VMware App Volumes Templates, this I have posted here: VMware App Volumes – Upgrade Templates to v. 2212
