Release date: January 30th 2024
Welcome to my VMware Horizon series. In this session I will describe how I upgraded my VMware Horizon Connection Servers to v. 2312. According to the VMware Horizon 8 2312 Release Notes, these are the changes to the Horizon Connection Server:
- Horizon Connection Server
- Horizon Connection Server and Horizon Enrollment Server are no longer supported on Windows Server 2012 R2. Please use Windows Server 2016 or later.
- The Certificate Management feature now supports management of cluster level certificates (vdm.ec) from Horizon console. Earlier, this feature was limited to machine level certificates (vdm). With this addition, Admins can generate CSR and import CA-signed certificates into a certificate store on Connection Server. Admins can also view certificate information, export in-use certificates and delete certificates from Horizon console. This feature also adds a capability to temporarily remove certificates and then restore them when necessary allowing Admins to keep the certificates without permanently deleting them from the certificate store.
- The tombstone-lifetime period for Horizon LDAP is decreased from 180 to 60 days for new and upgraded environments, thereby reducing the length of time that deleted objects remain in Horizon LDAP and improving replication performance. This change affects both the local pod LDAP as well as the global LDAP used in CPA environments. For a description of the tombstone-lifetime attribute, see https://learn.microsoft.com/en-us/windows/win32/adschema/a-tombstonelifetime.
- The Horizon Cloud Entitlement On-Ramp feature eliminates the requirement for multiple URLs, logouts, or additional authentication for users when accessing Horizon 8 and Horizon Cloud on Azure desktops. This feature is currently supported for users of Horizon Client for Windows 2312 and later.
Previously I have shown how to do this manually, in this session I will show how to do this with PowerShell and PowerCLI, remotely from a management server. Before I start, I review VMware’s documentation describing this topic:
As I have a Cloud Pod Architecture, I also check that replication is flowing without errors, as described by VMware here:
In some cases I have seen upgrade errors caused by replication problems and has had to seize the schema master node, as described by VMware here:
To identify the server holding the FSMO Schema Master role, I run LDAP Browser (ldp.exe), as described by VMware here:
According to VMware’s official documentation, this should be done as step 7 in the supported update sequence.

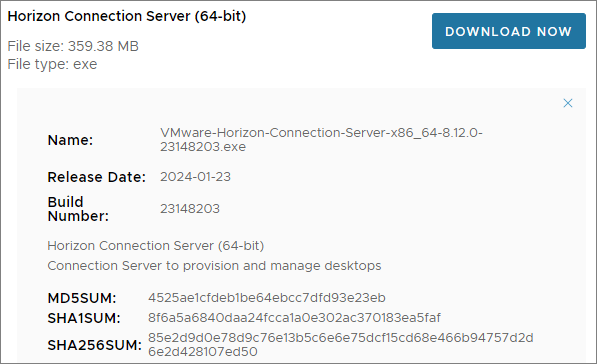

I start out by downloading the installation media from VMware Customer Connect

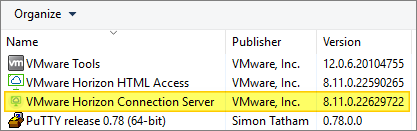

First, I verify the installed version:
Before I start I make myself a little workflow as show below.
Prerequisites:
- PowerShell Administrative access to the Connection-server
I first created the following credentials to be used in the script:
- vCenter admin-user:
New-VICredentialStoreItem -User <user> -Password <user> -Host <server> -File C:<your location.xml>- Horizon admin-user:
$credential = Get-Credential
$credential | Export-CliXml -Path '<path>hz_admin.xml'Now that I had the credentials created, I was good to go. (PS: I know I’m no programmer and a lot of this script have the potential for improvement, but, it gets the job done, and that’s good enough for me. If You have input to making this script even better, please leave a comment below, it will be very much appreciated!)
UpgradeCS.ps1
# --- Initialize PowerCLI Modules ---
Import-Module VMware.VimAutomation.Core
Import-Module VMware.VimAutomation.Common
Set-PowerCLIConfiguration -Scope User -ParticipateInCeip $false -Confirm:$false
Set-PowerCLIConfiguration -InvalidCertificateAction ignore -Confirm:$false
Set-PowerCLIConfiguration -DefaultVIServerMode Multiple -Confirm:$false
# --- Connect to vCenter with Get-VICredentialStoreItem ---
$viserver = "vCenter fqdn"
$viuser = Get-VICredentialStoreItem -File "<path to vCenter Credentials>.xml" -host $viserver
Connect-viserver -Server $viserver -User $viuser.user -Password $viuser.password
$cs = "cs fqdn"
# Check for Snapshots and remove any
Get-Snapshot $cs | Remove-Snapshot -confirm:$false
# --- Shut Down VM ---
Try{
$vm = Get-VM -Name $cs -ErrorAction Stop
switch($vm.PowerState){
'poweredon' {
Shutdown-VMGuest -VM $vm -Confirm:$false
while($vm.PowerState -eq 'PoweredOn'){
sleep 5
$vm = Get-VM -Name $cs
}
}
Default {
Write-Host "VM '$($cs)' is not powered on!"
}
}
Write-Host "$($cs) has shutdown. It should be ready for configuration."
}
Catch{
Write-Host "VM '$($cs)' not found!"
}
# --- Take Snapshot ---
$SnapshotName = "Pre-Upgrade"
Get-VM $cs | New-Snapshot -Name $SnapshotName
# --- Power On VM ---
Start-VM -VM $cs
# Wait 5 minutes - SLOW LAB :)
Start-Sleep 300
# --- Configure PSSession ---
$credential = Import-CliXml -Path "<path to horizon admin>hz_admin_${env:USERNAME}_${env:COMPUTERNAME}.xml"
$session = New-PSSession -ComputerName $cs -Credential $credential -Authentication CredSSP
# --- Define, Copy and Run Installer ---
Invoke-Command -Session $session -ScriptBlock {
# Variables
$InstallDir = "C:Install"
$ExeName = "VMware-Horizon-Connection-Server*"
$ExeFile = "<Network-Path>Latest$ExeName"
$Vendor = "VMware"
$Product = "Horizon Connection Server"
# Creating temp-folder, copy installer
New-Item -Path $InstallDir -type directory -Force
Copy-Item -Path $ExeFile -Destination $InstallDir -Force
# VMware Connection Server MSI Switches
$MsiArgs = @(
"/qn"
"VDM_SERVER_INSTANCE_TYPE=1" # Connection Server
"VDM_INITIAL_ADMIN_SID=S-1-5-32-544"
)
# Upgrade Connection Server
Write-Host "Upgrading $Vendor $Product" -ForegroundColor Green
$Exe = (Get-ChildItem -Path $InstallDir | Where-Object {$_.name -like $ExeName}).Fullname
$Install = (Start-Process -Filepath $Exe -Wait -ArgumentList "/s /v""$MsiArgs" -PassThru)
$Install.ExitCode
if ($Install.ExitCode -ne '0')
{
Write-Host "The upgrade failed, revert to snapshot, remediate error and try again" -ForegroundColor Red
#exit
[System.Environment]::Exit(0)
}
# Copy locked.properties to .sslgatewayconf folder - Just in case....
$LockedPropertiesFile = "<Network Path>locked.properties"
$SslGatewayDir = "C:Program FilesVMwareVMware ViewServersslgatewayconf"
Copy-Item -Path $LockedPropertiesFile -Destination $SslGatewayDir -Force
Remove-Item –path $installDir –Recurse -Force
}
Remove-PSSession $session
Get-VM $cs | Restart-VMGuest
# Wait 3 minutes - SLOW LAB :)
Start-Sleep 180
# --- Remove Temp folder and install media ---
Write-Verbose "Remove temp folder and snapshot" -Verbose
$session = New-PSSession -ComputerName $cs -Credential $credential -Authentication CredSSP
Invoke-Command -Session $session -ScriptBlock {
# Waiting for VMware Horizon View Connection Server Service to start"
$SvcName = 'wsbroker'
$SvcDisplayName = "VMware Horizon View Connection Server Service"
$Svc = Get-Service -Name $SvcName
Write-Host "Waiting for VMware Horizon View Connection Server Service to start" -ForegroundColor Green
if ($Svc.Status -eq 'Running')
{
Write-Host "$SvcDisplayName is Running" -ForegroundColor Green
}
if ($Svc.Status -ne 'Running')
{
Write-Host "Waiting for $SvcDisplayName to start" -ForegroundColor Green
$Svc.WaitForStatus("Running")
Write-Host "$SvcDisplayName is now running" -ForegroundColor Green
}
# Tidying up
$installDir = "C:Install"
Remove-Item –path $installDir –Recurse -Force
}
Remove-PSSession $session
# Remove Snapshot
Read-Host "Press Any Key to remove Snapshot"
Get-VM $cs | Get-snapshot -Name $SnapshotName | Remove-Snapshot -Confirm:$false
# Disconnect from vCenter
write-host "Disconnecting from vCenter" -ForegroundColor Green
Disconnect-VIServer -Server $viserver -Confirm:$falseOnce the script finishes, I can now verify the new version.
With the Connection Server upgraded, I can now proceed with upgrading the Horizon Enrollment Server, covered here: VMware Horizon – Upgrade Horizon Enrollment Server to v.2312
