VMware App Volumes – Capture AppStack

Welcome to my VMware App Volumes series. In this session I will create an AppStack with two applications in it. Although this is quite arbitrary, it is a nice start to using App Volumes to distribute applications. Before I can start capturing a new AppStack, I power up the W10APPVCAPTURE-vm I created in my previous session.

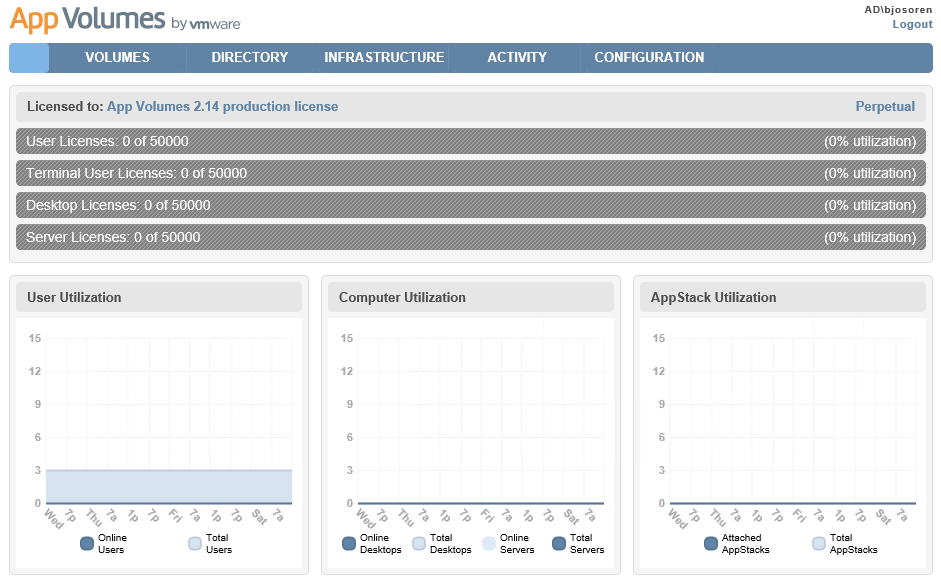

I first log into App Volumes Manager

CaptureAppStack-01



Next, I go to Volumes and click Create in AppStacks

CaptureAppStack-02

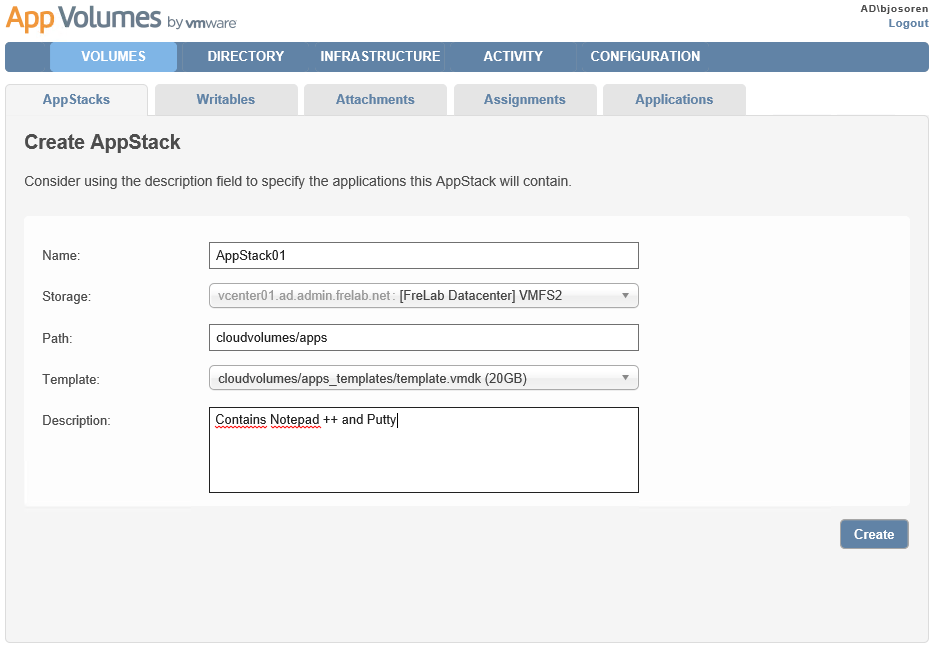

I give the new AppStack a name and description. The default path will work just fine.

CaptureAppStack-03

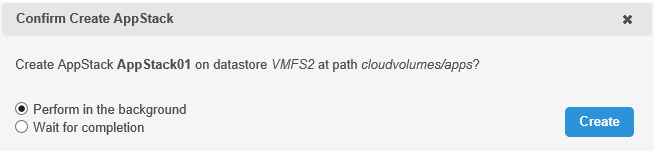

Confirm Create AppStack, Create

CaptureAppStack-04

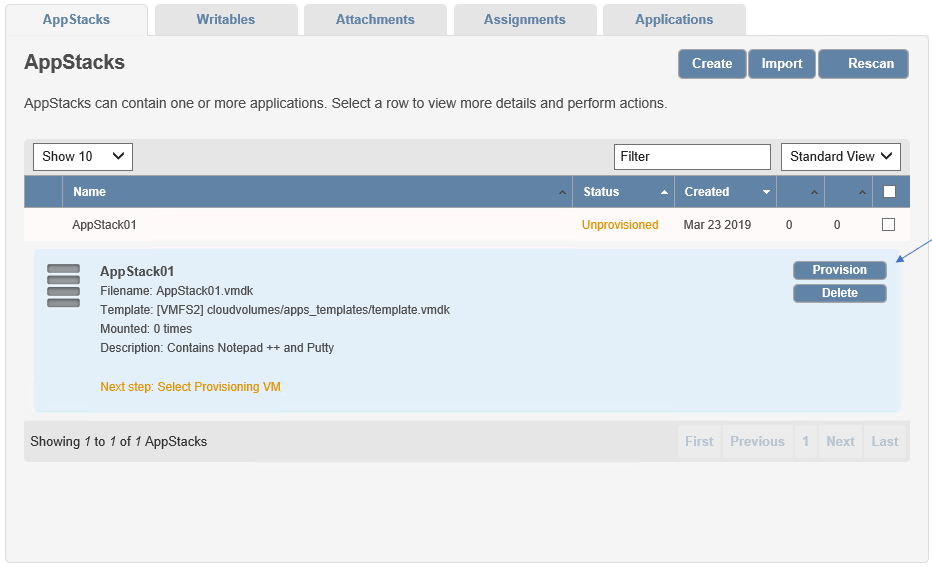

Next I will provision my new AppStack to the W10APPVCAPTURE host I created in my previous session

CaptureAppStack-05

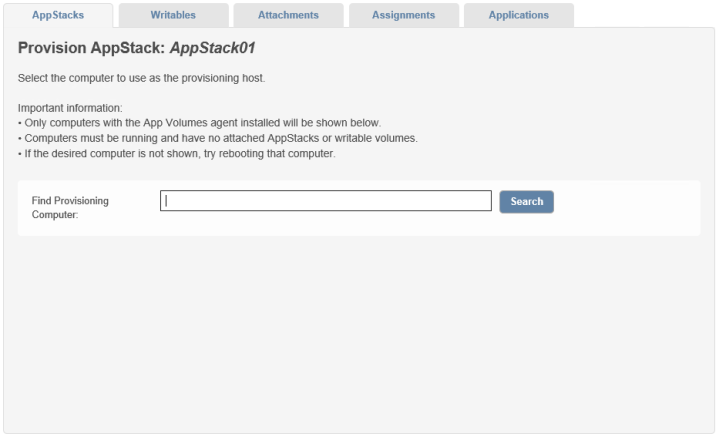

I type in my W10APPVCAPTURE computername and click Search

CaptureAppStack-06

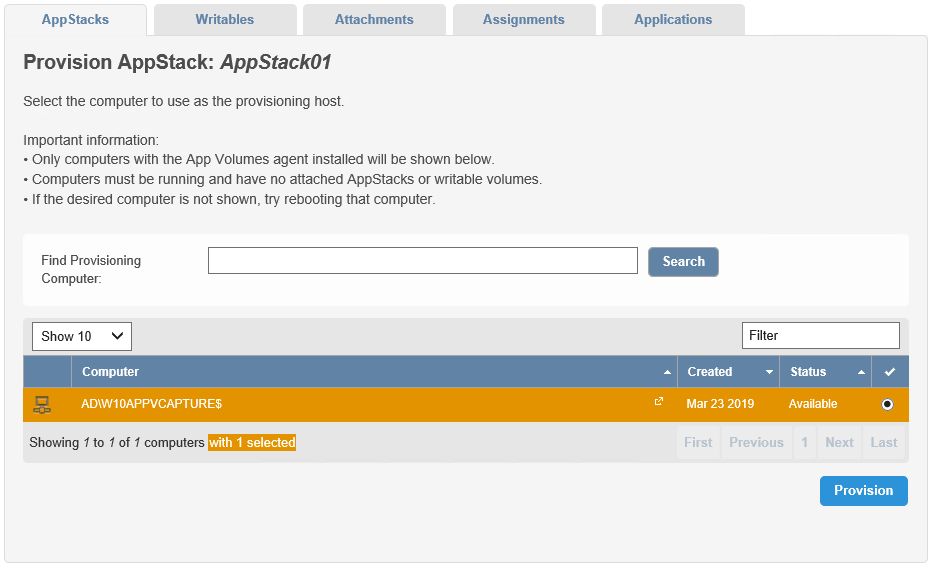

I verify the status as available, Provision

CaptureAppStack-07



I Confirm Start Provisioning

CaptureAppStack-08



Now I head over to my W10APPVCAPTURE host and open VMware Remote Console. As we can see from the info-prompt, we are now in provisioning mode.

CaptureAppStack-09



I next install my two applications, Putty and Notepad ++

CaptureAppStack-10

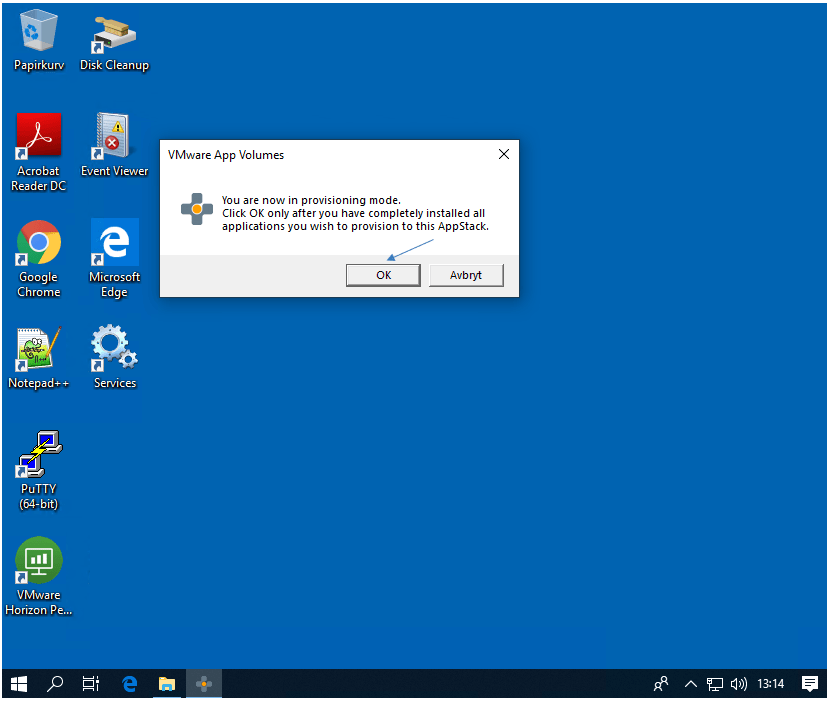

When the applications are installed I click OK in the info-prompt

CaptureAppStack-11

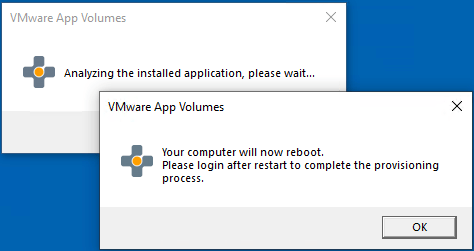

I confirm Yes to finish and reboot the computer

CaptureAppStack-12



After reboot I click OK to the info-prompt and revert my vm back to most recent snapshot.

CaptureAppStack-13

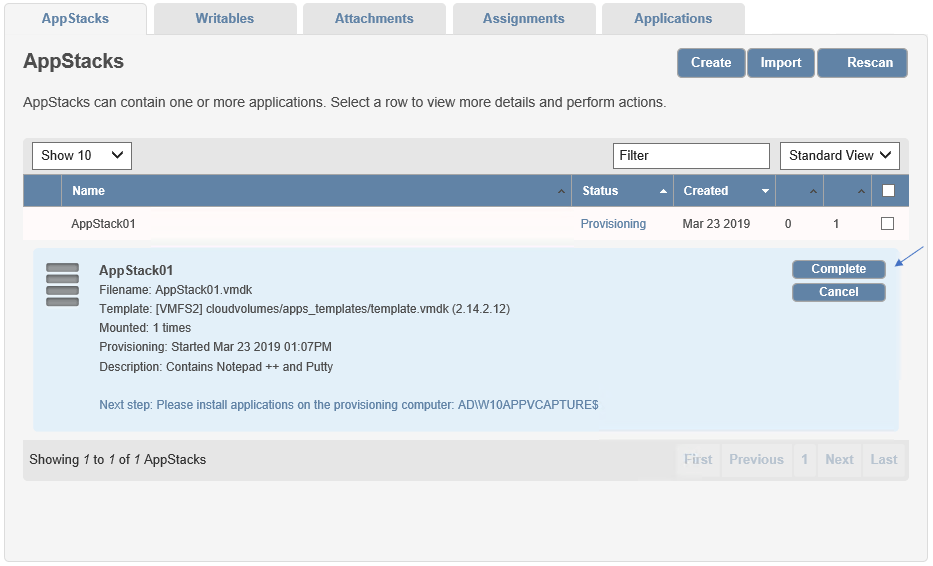

Back in App Volumes Manager I click Complete to finish provisioning

CaptureAppStack-14

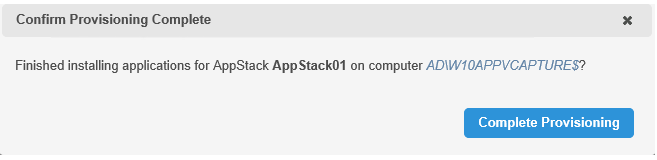

I confirm Complete Provisioning

CaptureAppStack-15

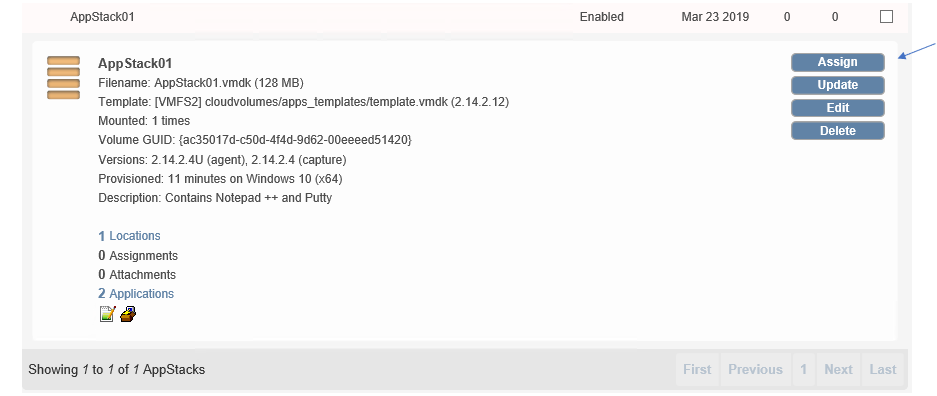

Now that my new AppStack is provisioned, I can assign it to users

CaptureAppStack-16

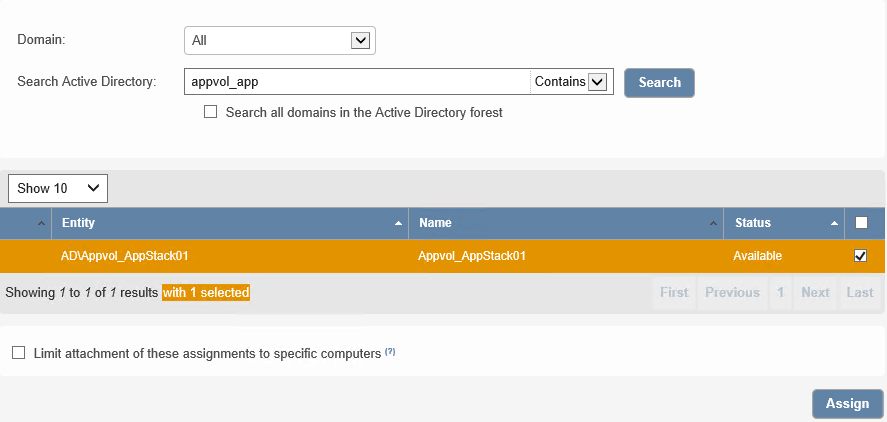

I search my domain for the user group I created for this AppStack: Appvol_AppStack01, Assign

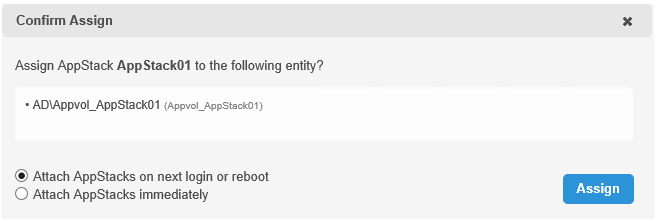

I confirm Assign with “Attach AppStacks on next login or reboot”

CaptureAppStack-18



I verify my assignment of AppStack01

CaptureAppStack-19

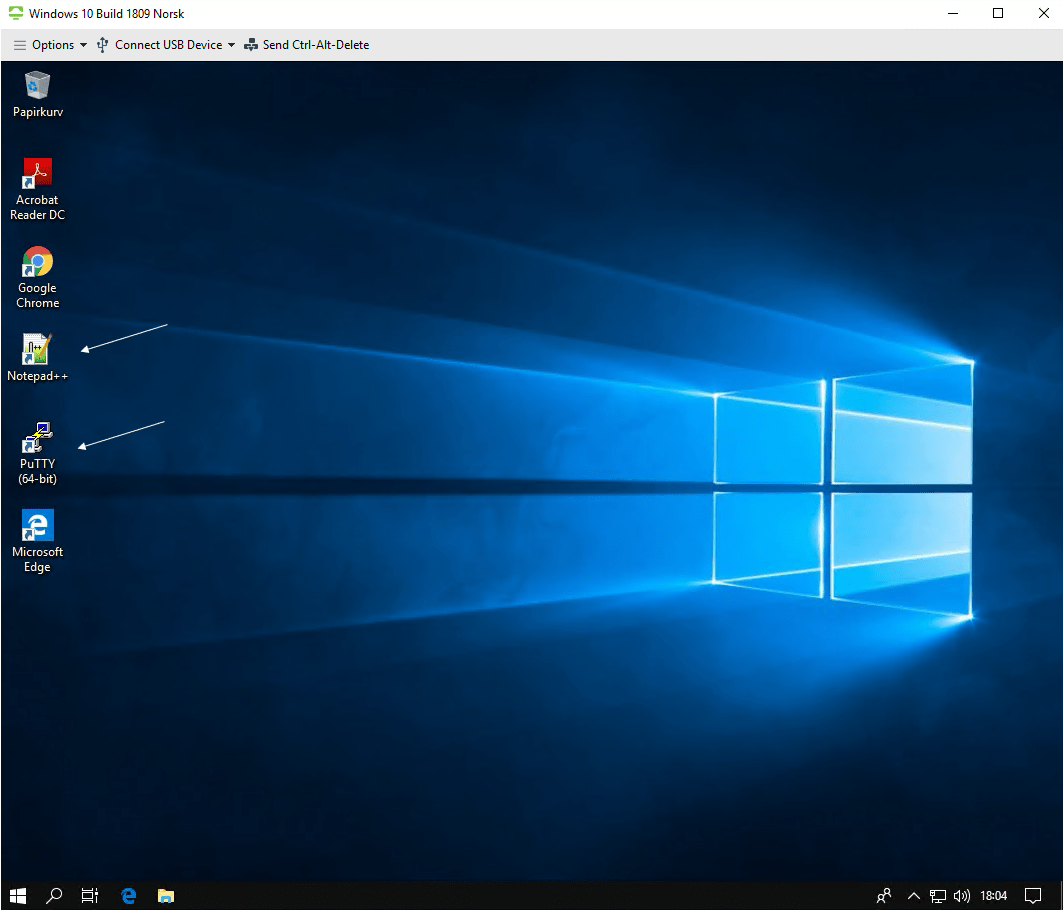

If I login into one of my desktop pools with a test-user, I now see that the new AppStack is attached and the applications available.

CaptureAppStack-20

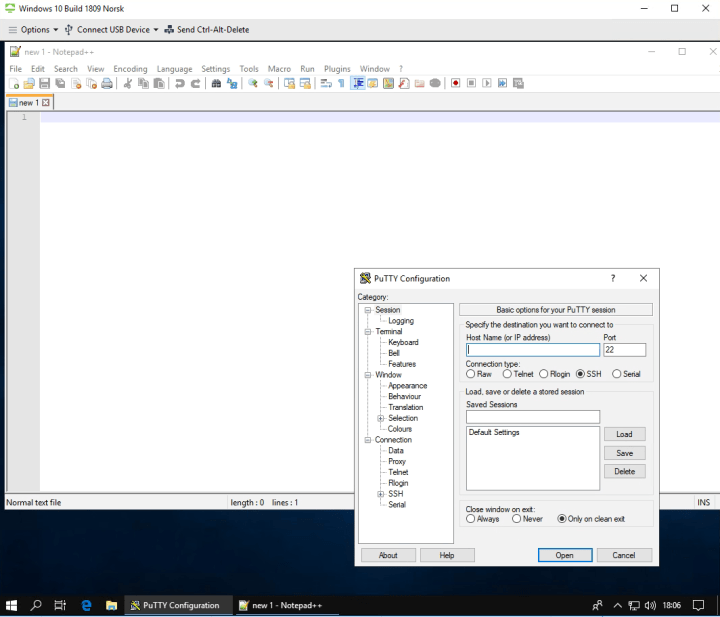

Finally, I launch the applications to see that they start as expected

CaptureAppStack-21



I can now head over to User Environment Manager and make sure that the settings for these two applications are stored in the user’s profile.
