VMware App Volumes 2.xx – Capture Drivers AppStack

Welcome to my VMware App Volumes series. In this session I will create an AppStack with drivers for the Contour Pointing Devices in it. Before I can start capturing a new AppStack, I power up the W10APPVCAPTURE-vm.

I first log into App Volumes Manager and go to Volumes, click “Create” in AppStacks

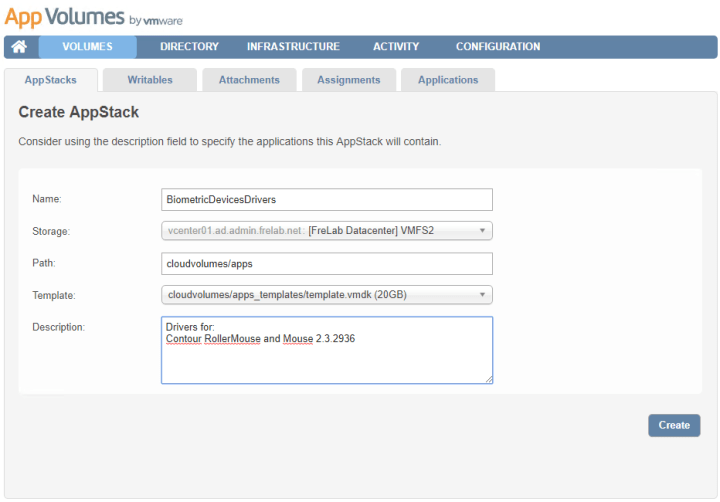

I give the new AppStack a name and description. The default path will work just fine.

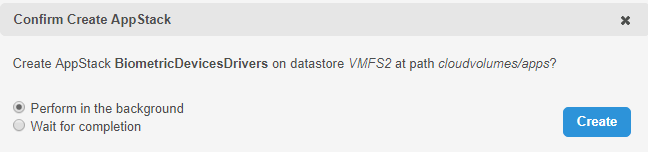

Confirm Create AppStack, Create

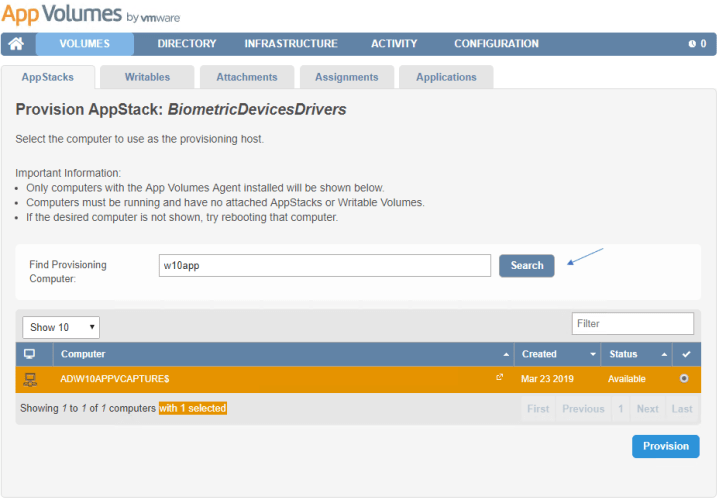

Next I will provision my new AppStack to the W10APPVCAPTURE vm.



I verify the status as available, Provision



I Confirm Start Provisioning



My new Appstack is now ready for provisioning



Now I head over to my W10APPVCAPTURE vm and open VMware Remote Console. As we can see from the info-prompt, we are now in provisioning mode.

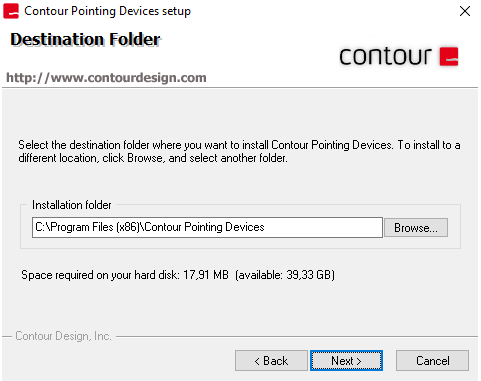

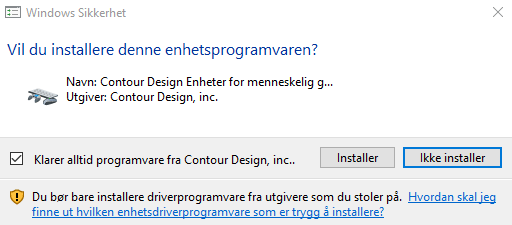

I download the driver package and launch the installer with default settings



I choose Yes to reboot the computer

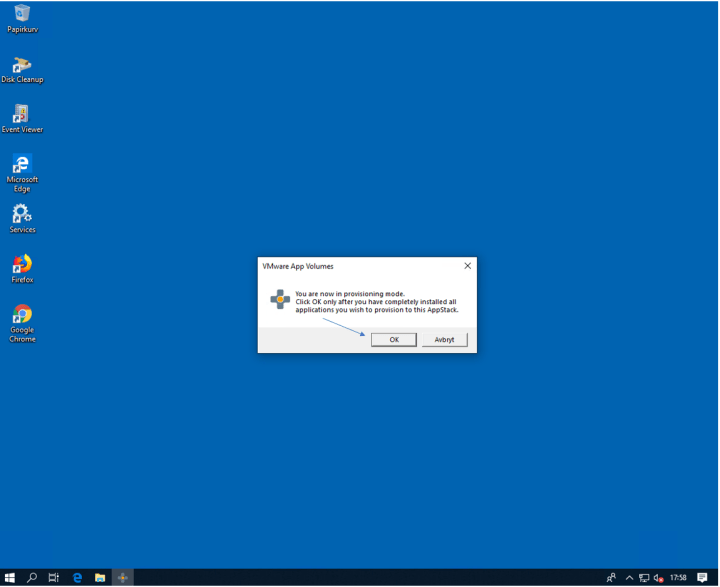

When the vm is rebooted, I log in again and click OK in the info-prompt



I confirm Yes to finish and reboot the computer



After reboot, I click OK to the info-prompt and revert my vm back to most recent snapshot.

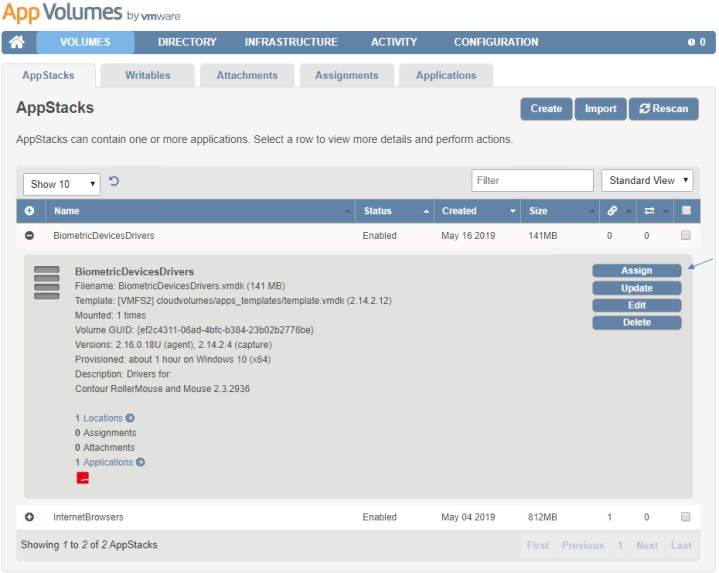

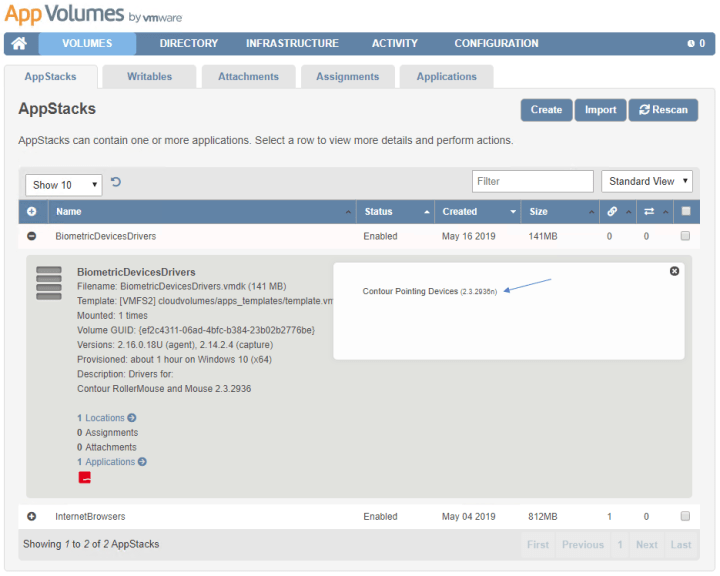

Now that my new AppStack is provisioned, I can assign it to users

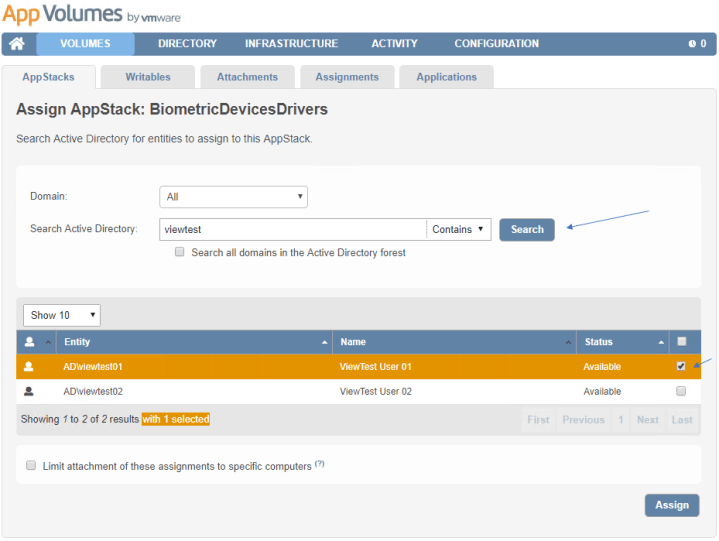

I search the domain for my test user, Assign



I confirm Assign with “Attach AppStacks on next login or reboot”

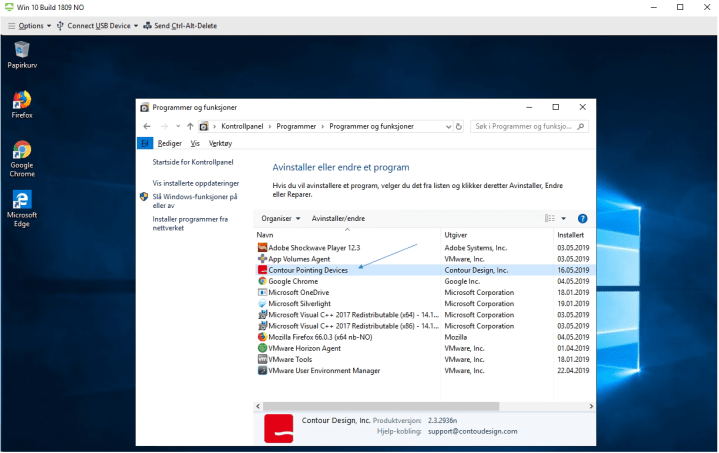

If I log in to one of my desktop pools with a test-user, I now see that the new AppStack is attached and the drivers are available.



VMware App Volumes Product Page

VMware App Volumes planning, deployment etc.

Disclaimer: Every tips/tricks/posting I have published here, is tried and tested in different it-solutions. It is not guaranteed to work everywhere, but is meant as a tip for other users out there. Remember, Google is your friend and don’t be afraid to steal with pride! Feel free to comment below as needed.
