VMware App Volumes 2.xx – Capture Internet Browser AppStack

Welcome to my VMware App Volumes series. In this session I will create an AppStack with two applications in it, Mozilla Firefox and Google Chrome. Before I can start capturing a new AppStack, I power up the W10APPVCAPTURE-vm.

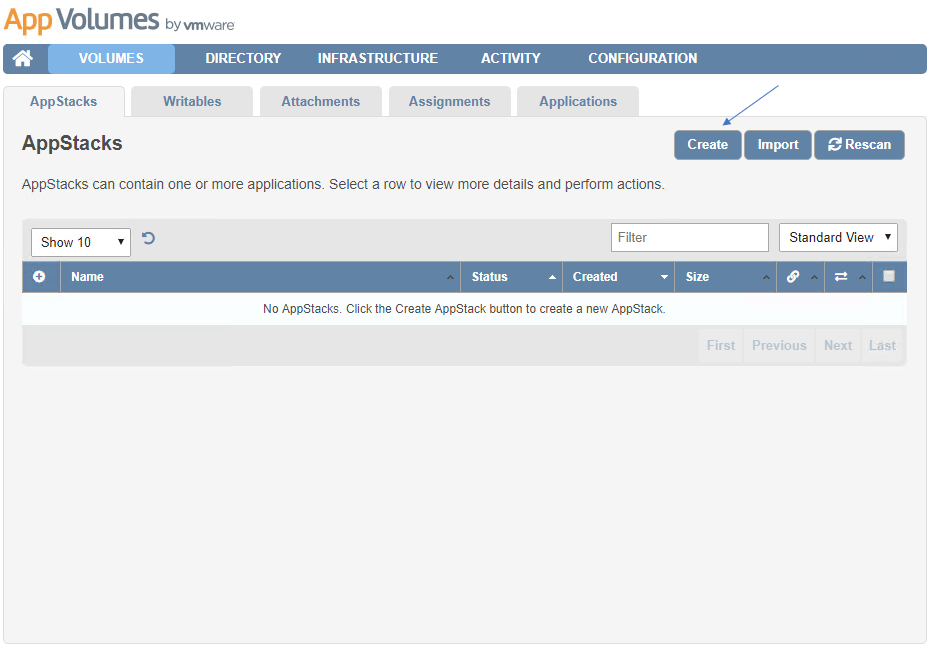

I first log into App Volumes Manager and go to Volumes, click “Create” in AppStacks

CaptureBrowserAppstack-01

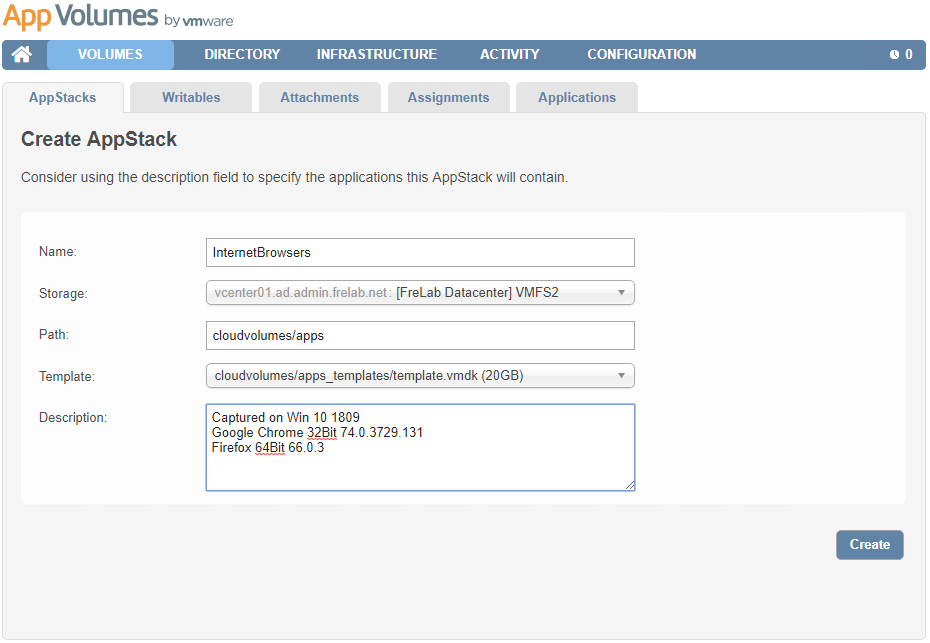

I give the new AppStack a name and description. The default path will work just fine.

CaptureBrowserAppstack-02

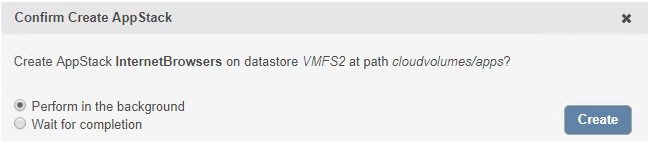

Confirm Create AppStack, Create

CaptureBrowserAppstack-03

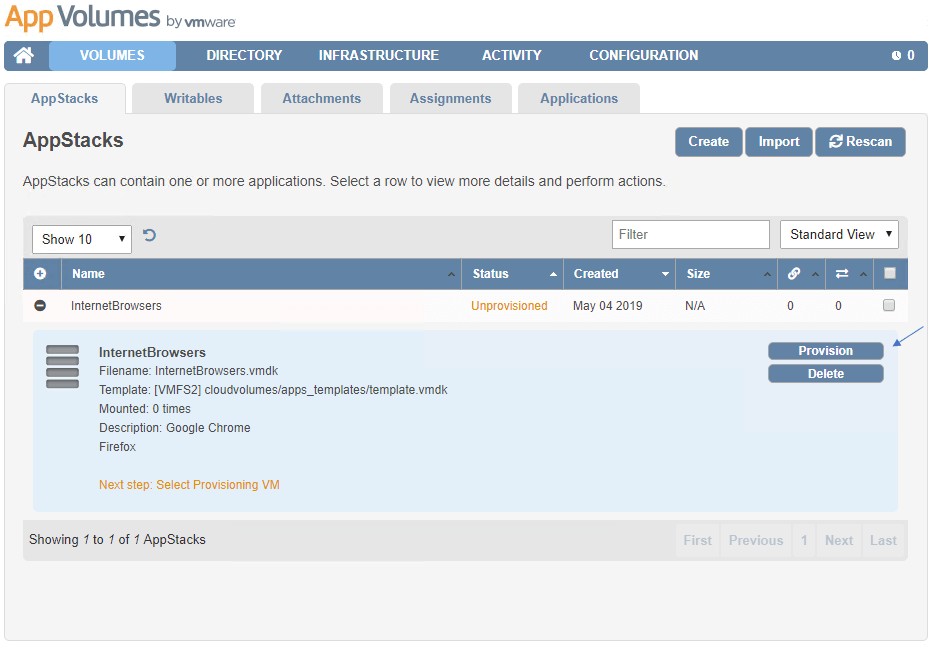

Next I will provision my new AppStack to the W10APPVCAPTURE host.

CaptureBrowserAppstack-04

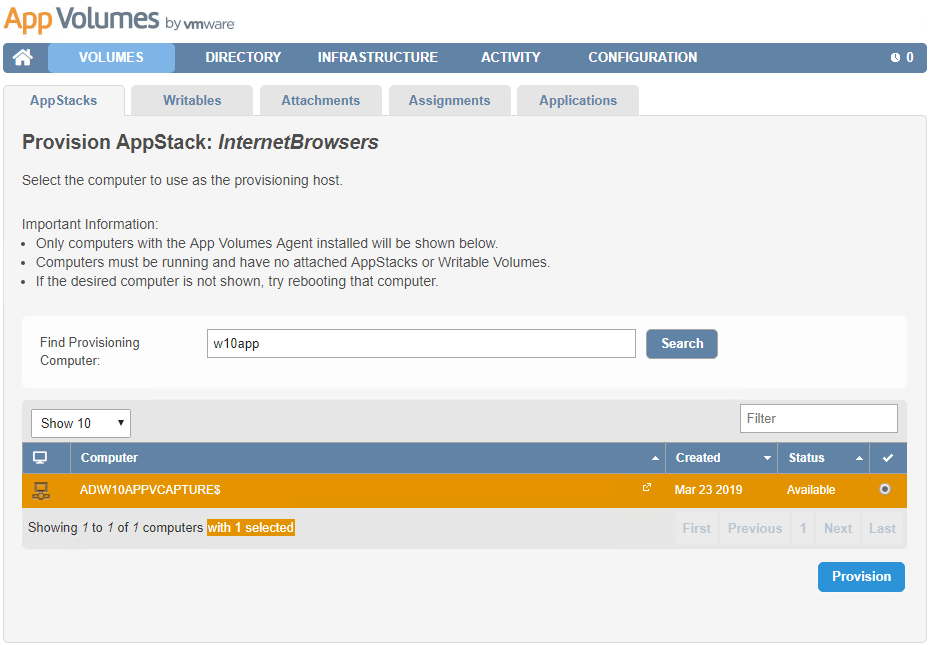

I verify the status as available, Provision

CaptureBrowserAppstack-05

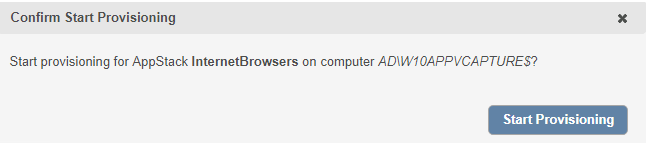

I Confirm Start Provisioning

CaptureBrowserAppstack-06

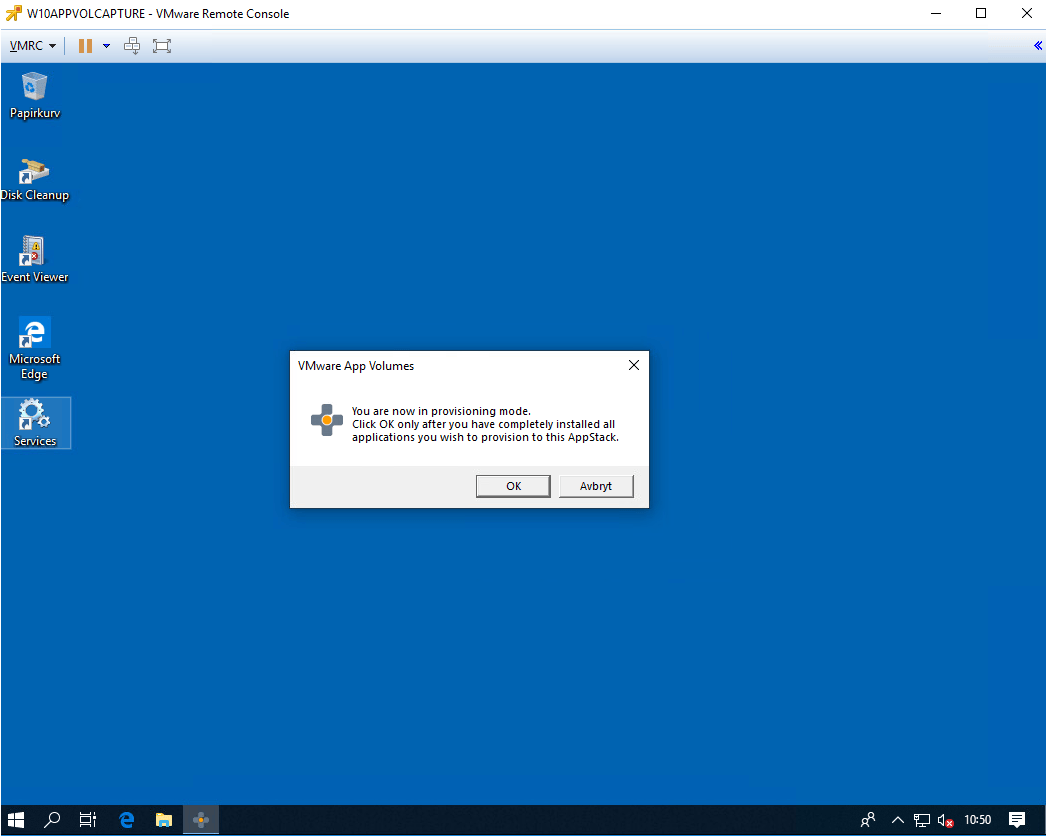

Now I head over to my W10APPVCAPTURE host and open VMware Remote Console. As we can see from the info-prompt, we are now in provisioning mode.

CaptureBrowserAppstack-08

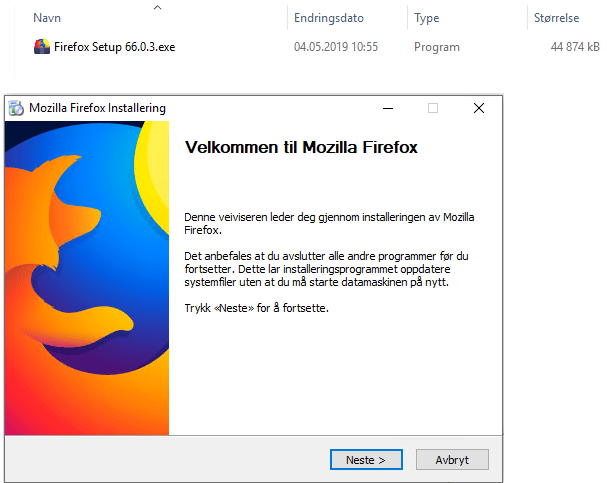

I next install my two applications, Mozilla Firefox and Google Chrome. The installation-language is Norwegian, I will translate at points.

CaptureBrowserAppstack-09

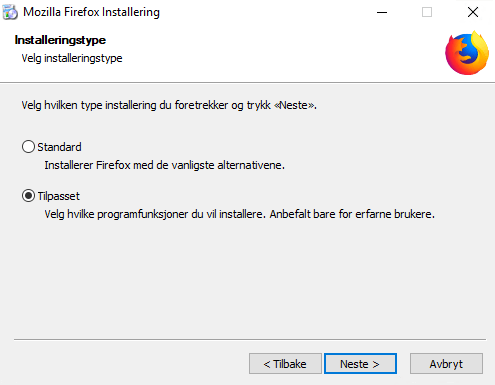

I choose Custom installation

CaptureBrowserAppstack-10

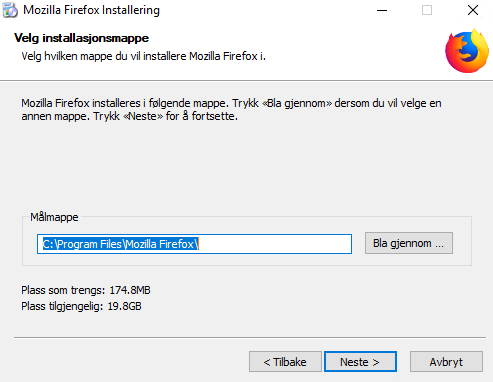

Default installation-path is OK, Next

CaptureBrowserAppstack-11

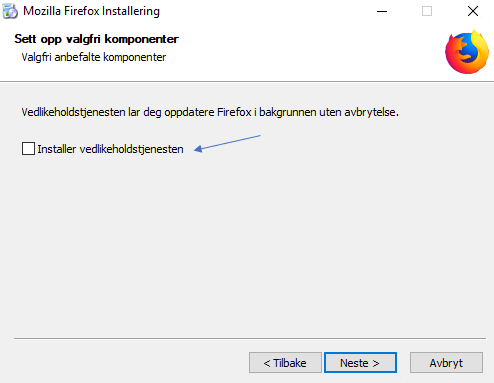

I deselect Maintenance service, Next

CaptureBrowserAppstack-12

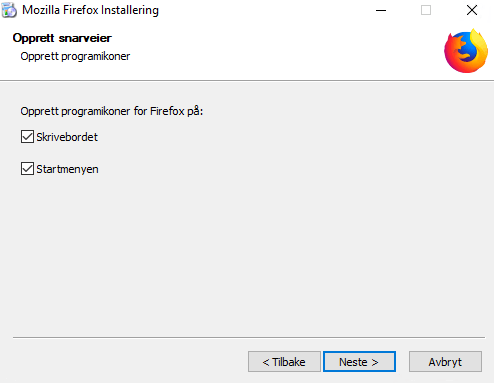

Create shortcuts on desktop and start menu, Next

CaptureBrowserAppstack-13

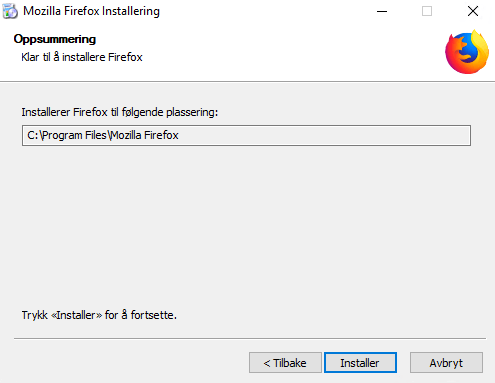

In summary, Install

CaptureBrowserAppstack-14

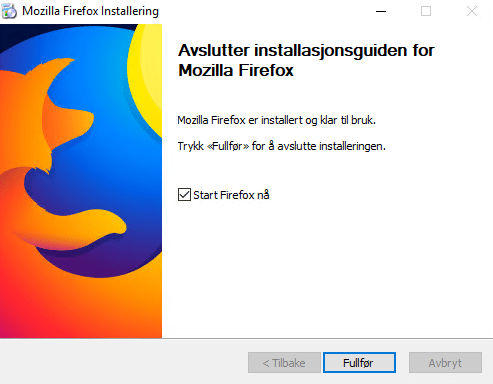

Finally I choose to start Firefox, Complete

CaptureBrowserAppstack-15

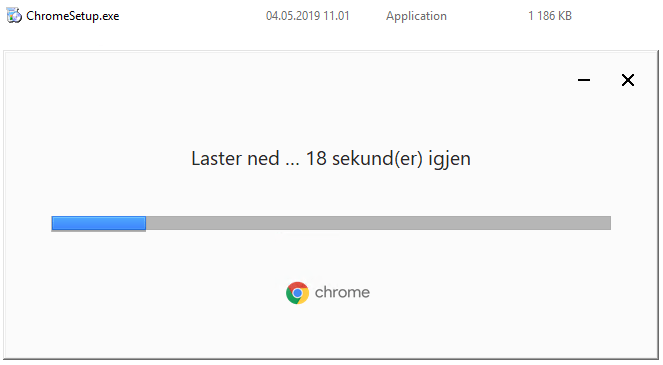

I will next launch the Chrome-installer

CaptureBrowserAppstack-16

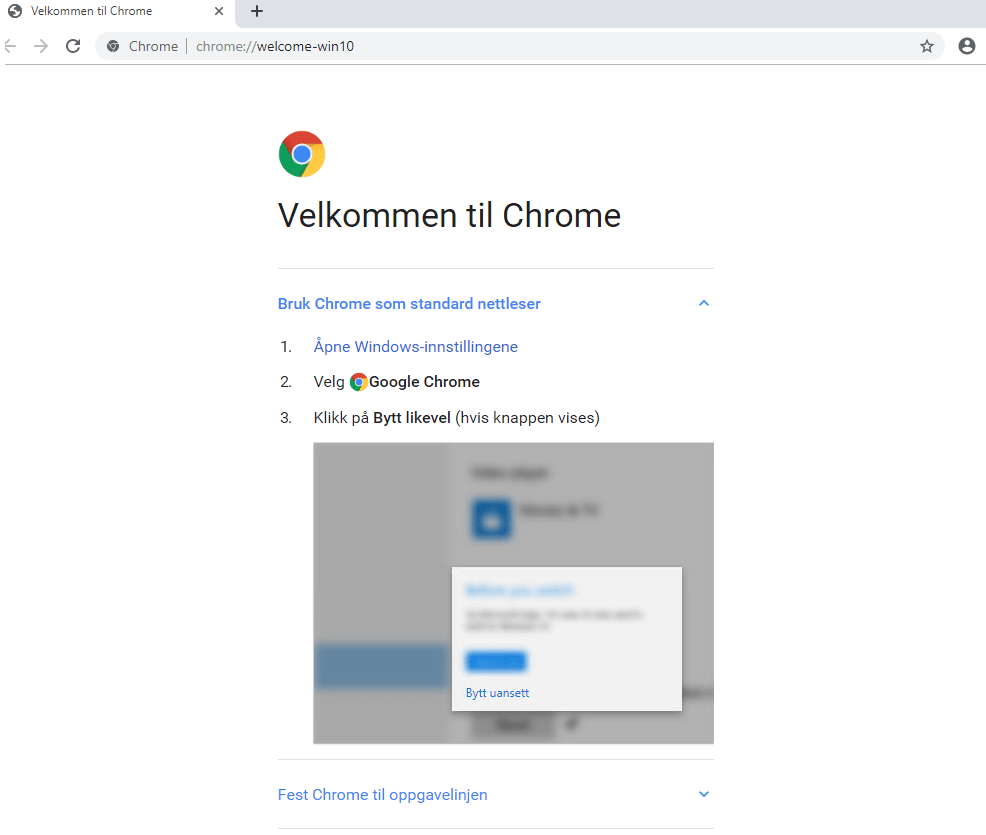

I open Chrome to verify functionality

CaptureBrowserAppstack-17

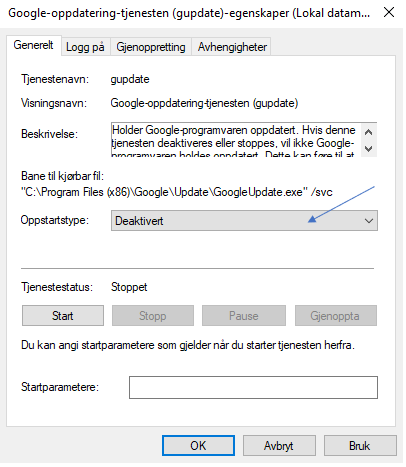

Finally, I disable the Google Update service

CaptureBrowserAppstack-18

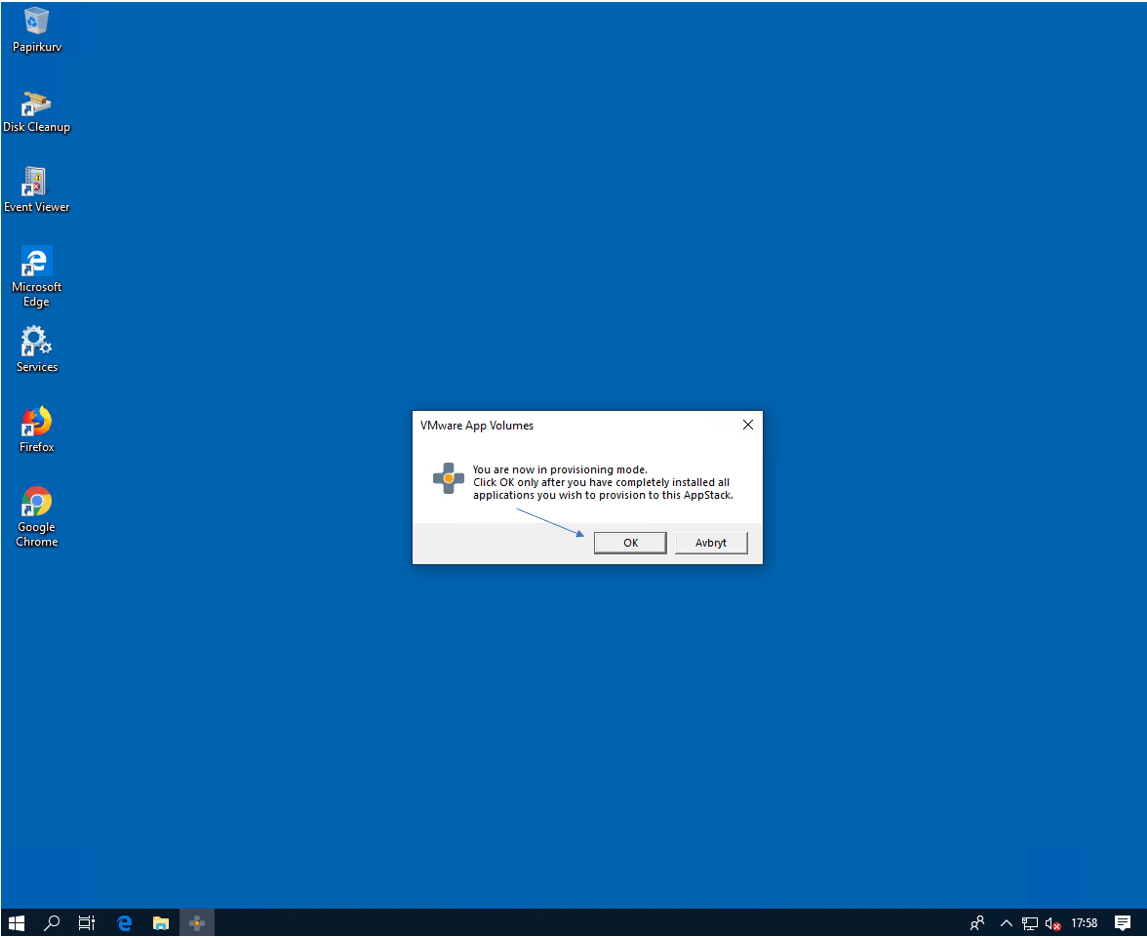

When the applications are installed, I click OK in the info-prompt

CaptureBrowserAppstack-19

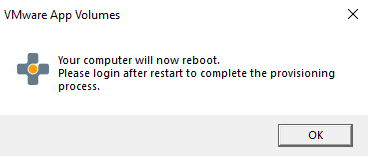

I confirm Yes to finish and reboot the computer

CaptureBrowserAppstack-20

CaptureBrowserAppstack-21



After reboot I click OK to the info-prompt and revert my vm back to most recent snapshot.

CaptureAppStack-13

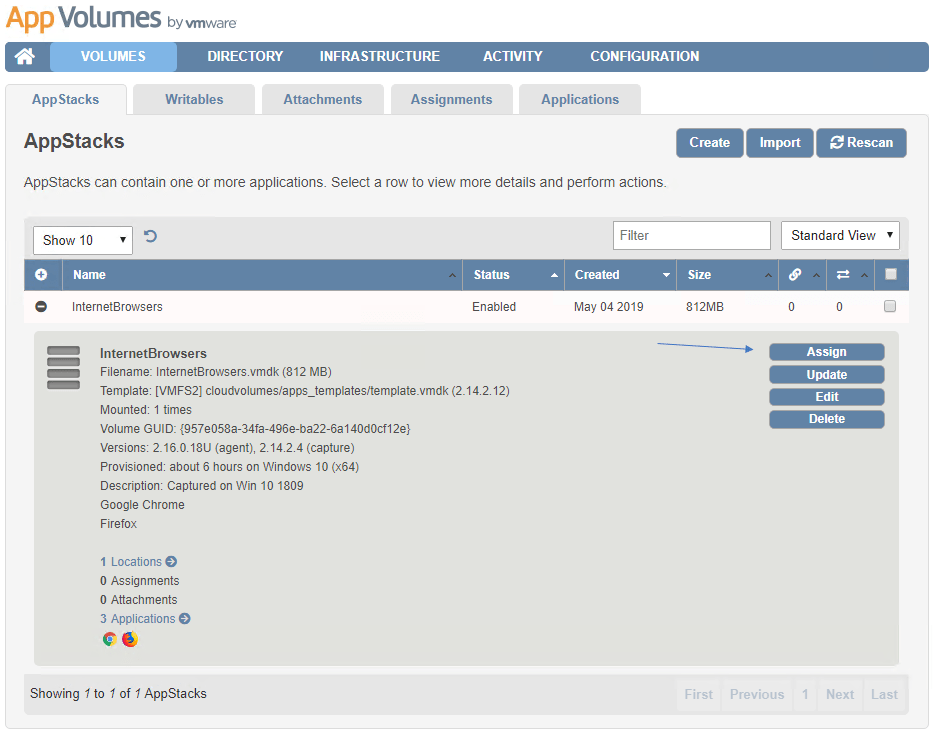

Now that my new AppStack is provisioned, I can assign it to users

CaptureBrowserAppstack-23

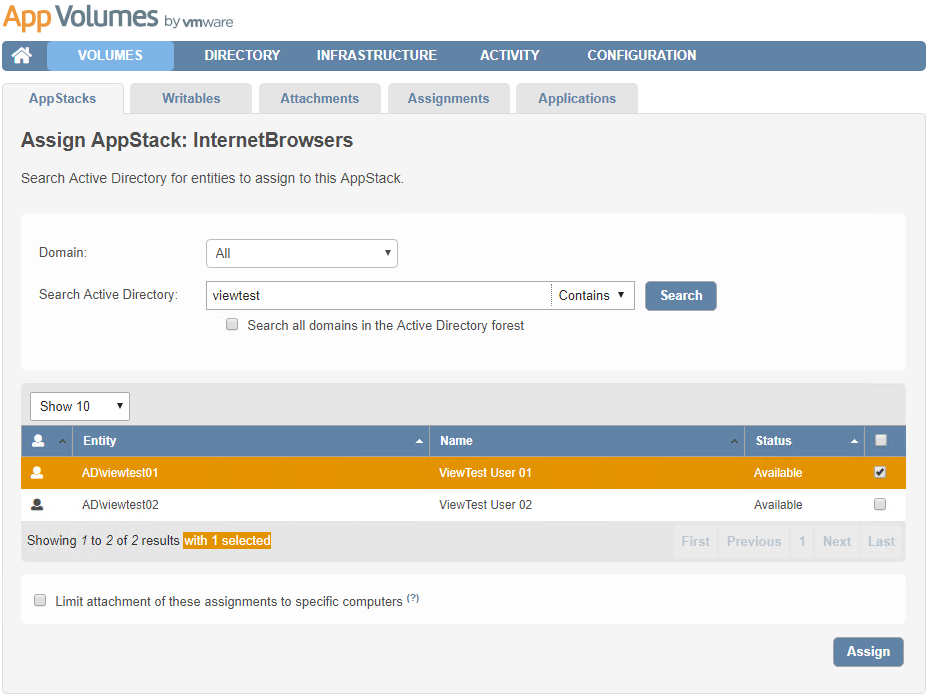

I search the domain for my test user, Assign

CaptureBrowserAppstack-24

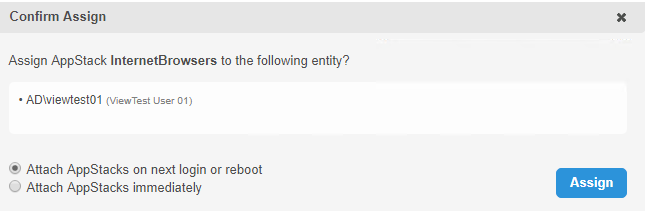

I confirm Assign with “Attach AppStacks on next login or reboot”

CaptureBrowserAppstack-25

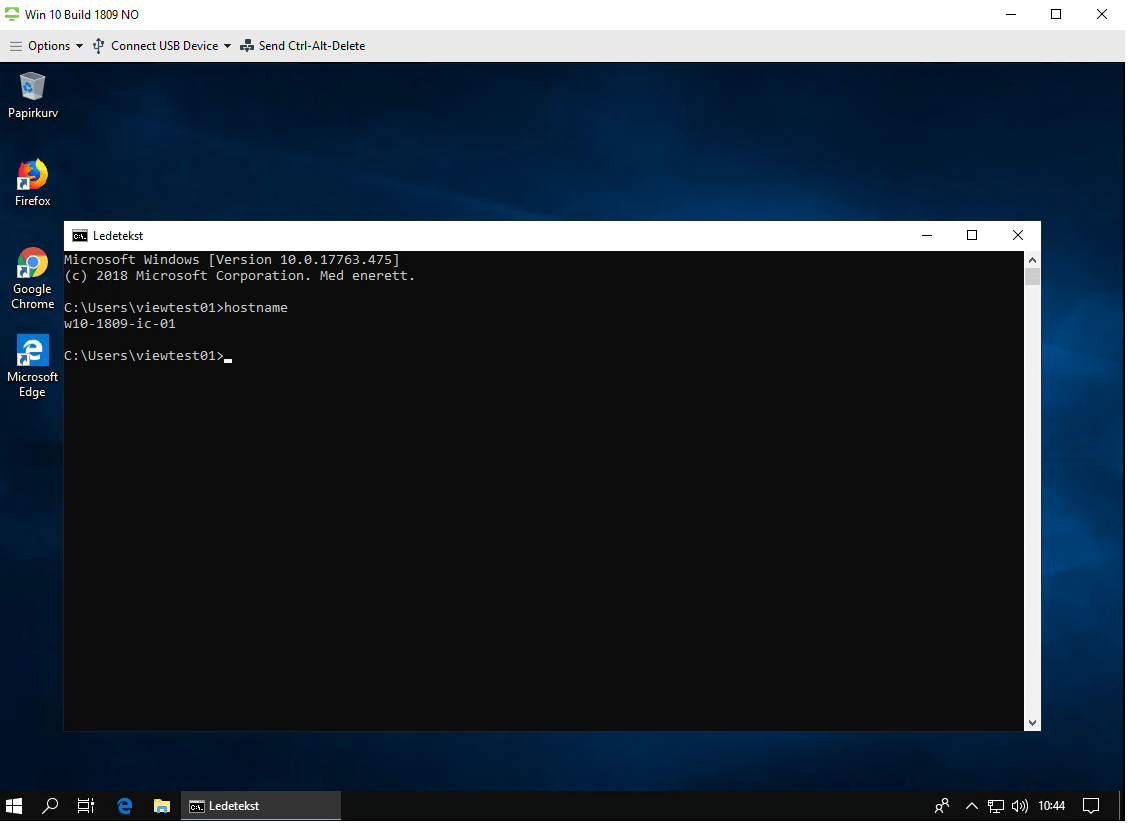

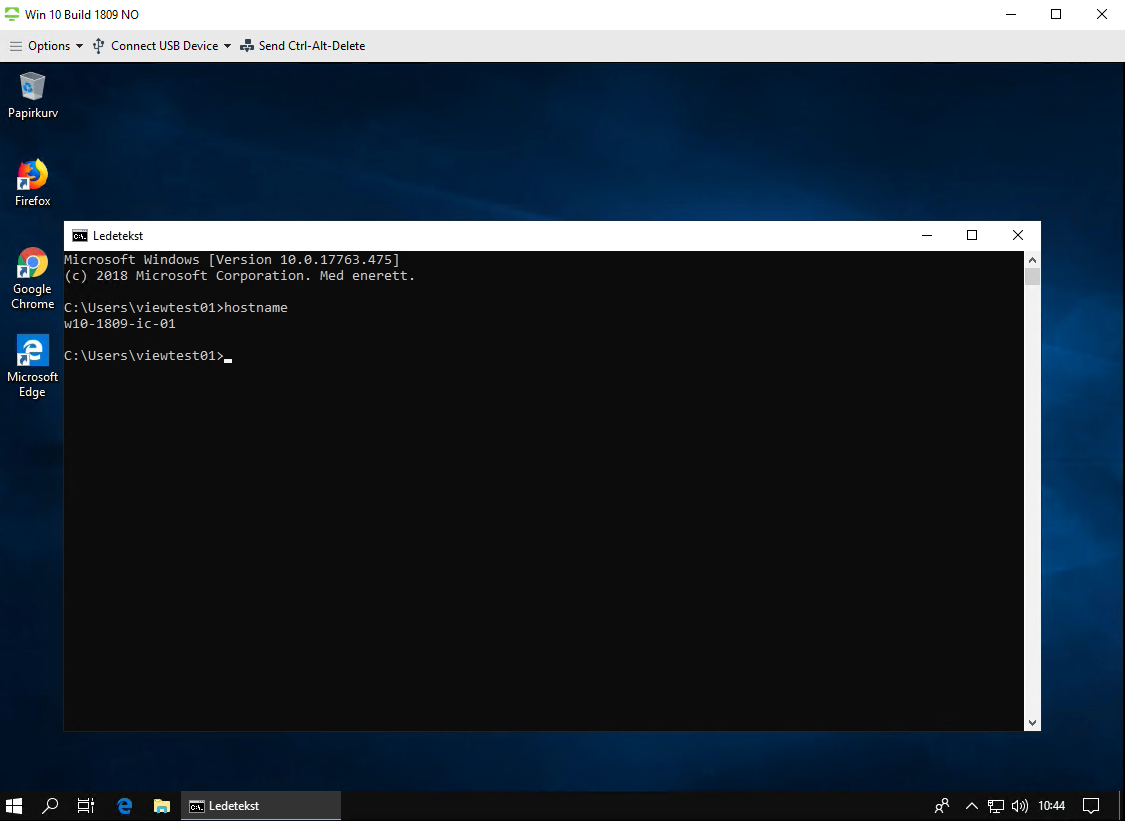

If I login into one of my desktop pools with a test-user, I now see that the new AppStack is attached and the applications available. I verify my computer-account: “w10-1809-ic-01”

CaptureBrowserAppstack-26

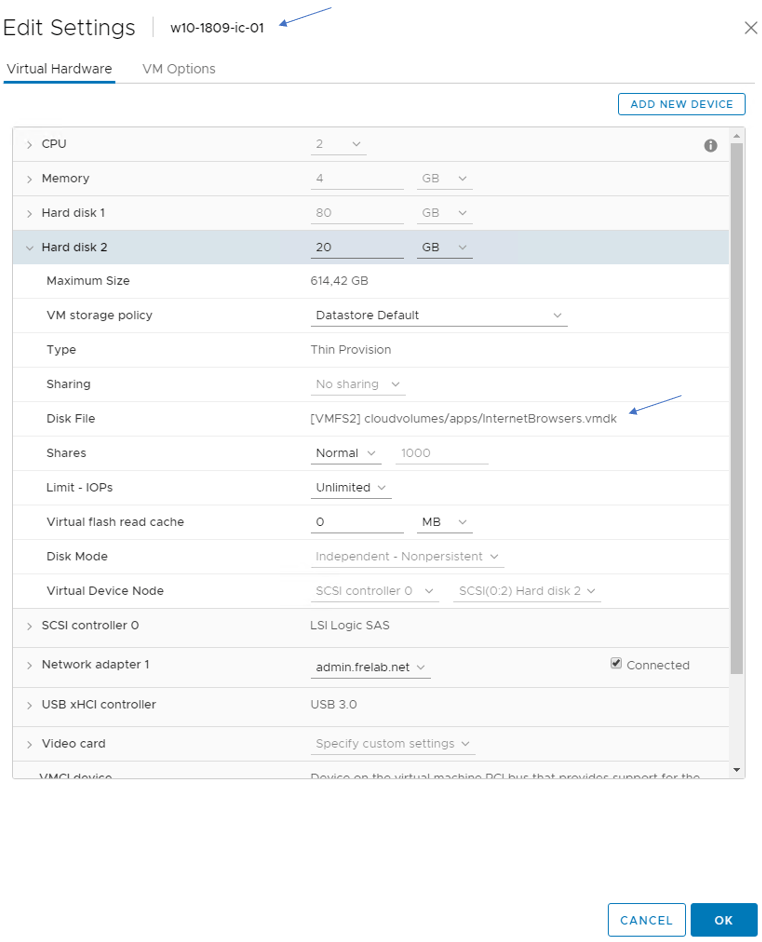

I can also verify in vSphere that the vm has the AppStack connected

CaptureBrowserAppstack-27

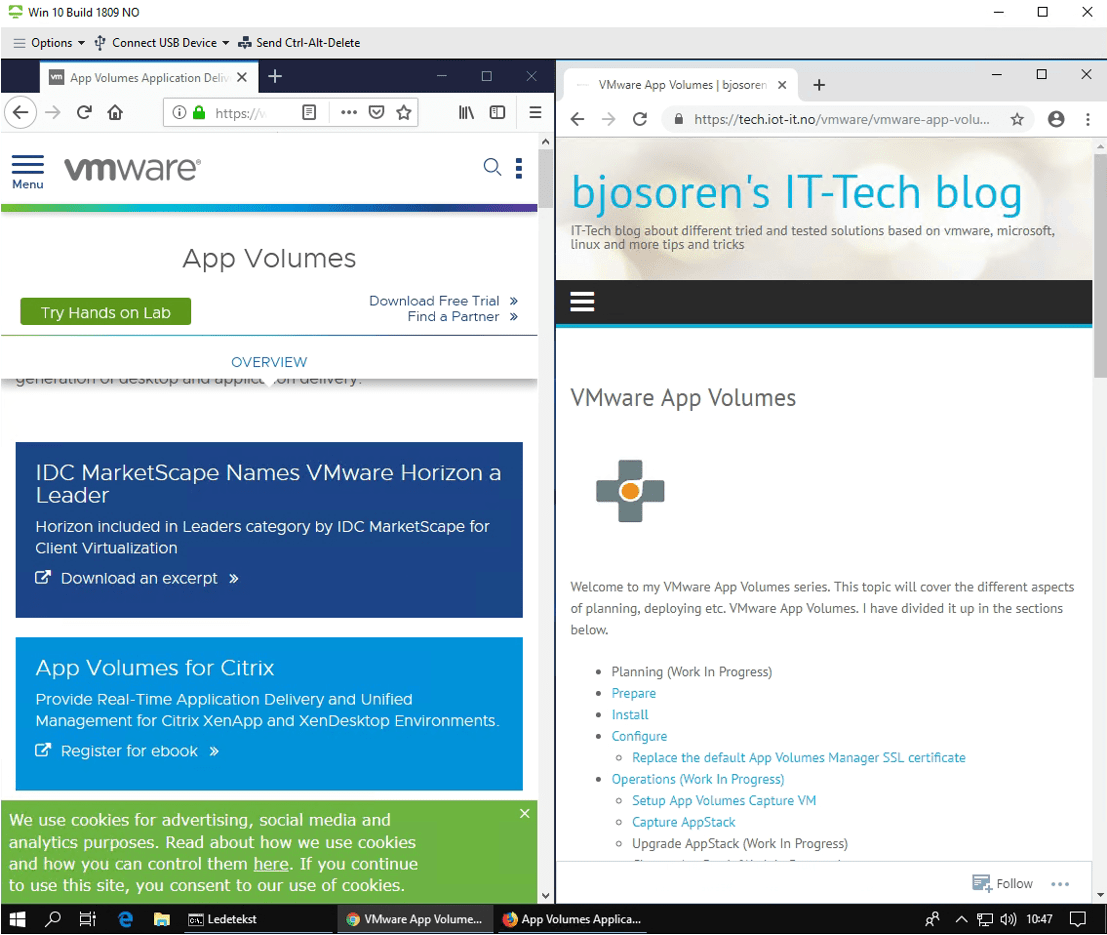

Finally, I launch the applications to see that they start as expected

CaptureBrowserAppstack-28

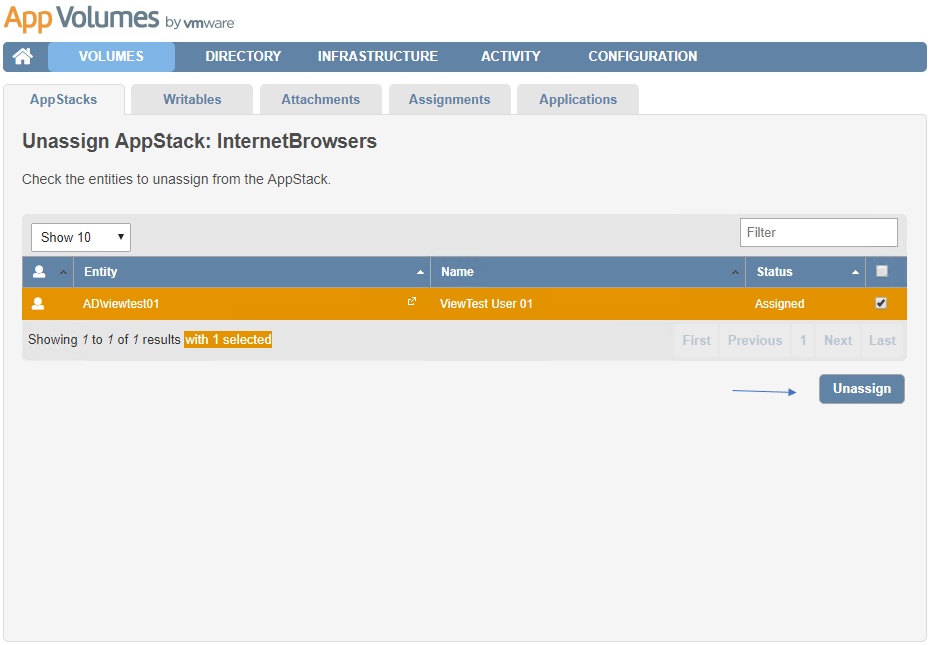

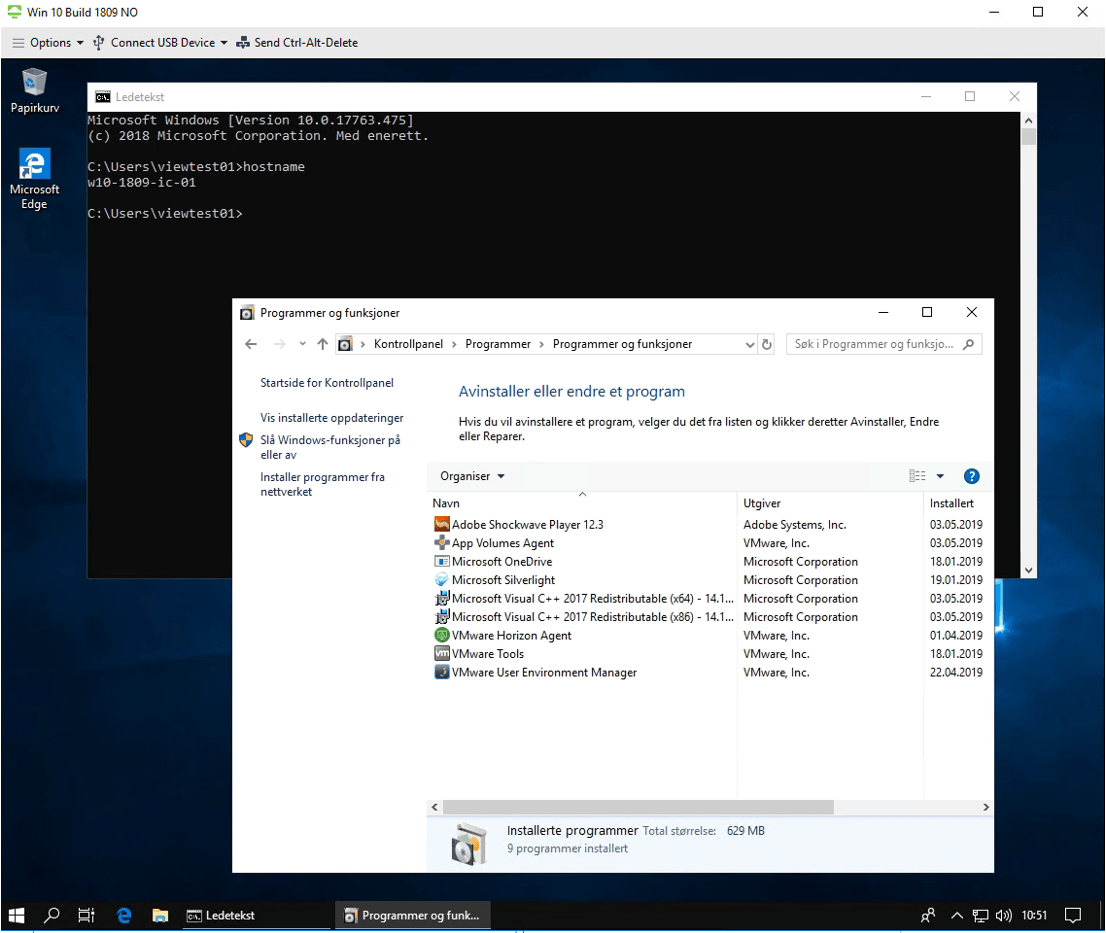

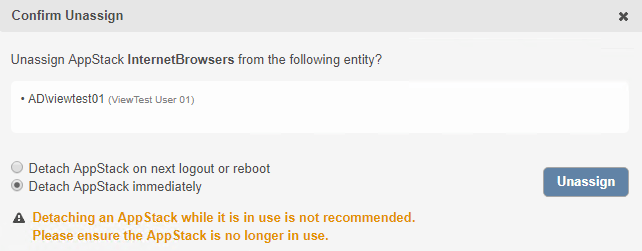

If I click Unassign in App Volumes Manager, I can verify that the AppStack is removed from the vm immediately.

CaptureBrowserAppstack-29

CaptureBrowserAppstack-30

CaptureBrowserAppstack-31



I can now head over to User Environment Manager and make sure that the settings for these two applications are stored in the user’s profile.
