VMware App Volumes – Update AppStack to v. 2.17

Welcome to my VMware App Volumes series. As it has been quite some time since I captured my InternetBrowsers Appstack, I will in this session update this Appstack. When I captured this, it was with Google Chrome 74.0.3729.121 and Firefox 66.0.3. These version will be upgraded and I will add another browser, Opera.

The first I do is to start my capture machine. I don’t login in at this point.

Upgrade_Appstack-01



Next, I log into VMware App Volumes Manager, click Update on the AppStack I’m going to update, InternetBrowsers

Upgrade_Appstack-02

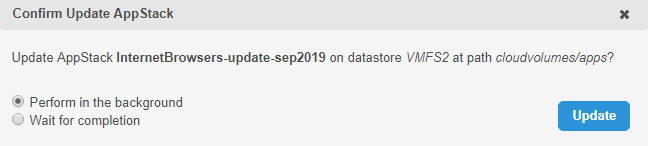

I provide a name for the updated AppStack and make any needed changes to the storage or path location. Create…

Upgrade_Appstack-03

Upgrade_Appstack-04

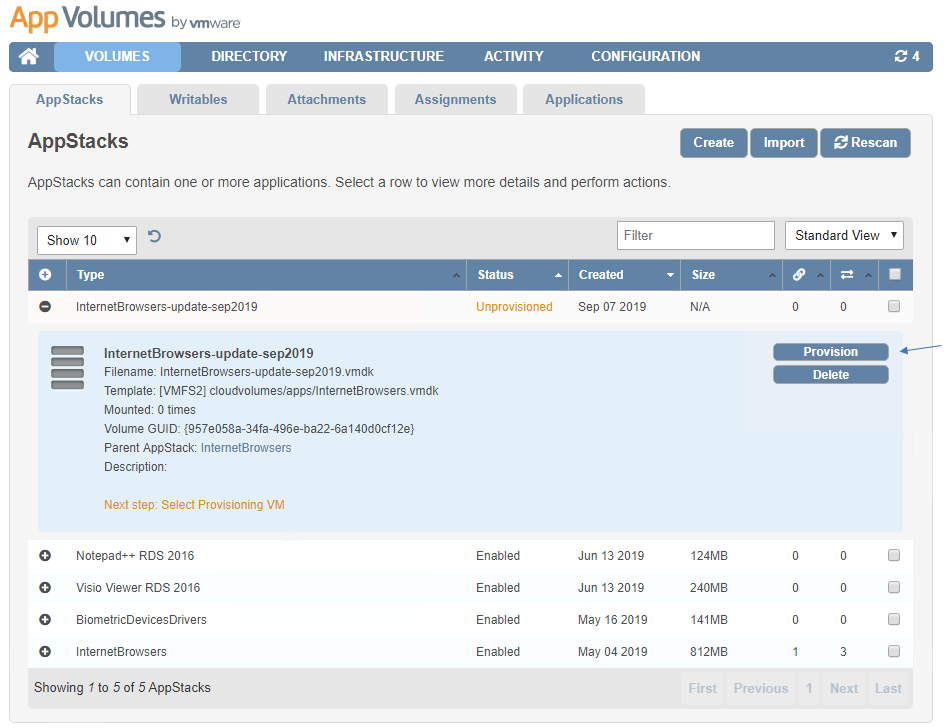

Now that my new AppStack is ready for provisioning, I click Provision…

Upgrade_Appstack-05



I search for my capture machine, W10APPCAPTURE, and click Provision…

Upgrade_Appstack-06

Upgrade_Appstack-07



The AppStack’s status is now changed to Provisioning

Upgrade_Appstack-08

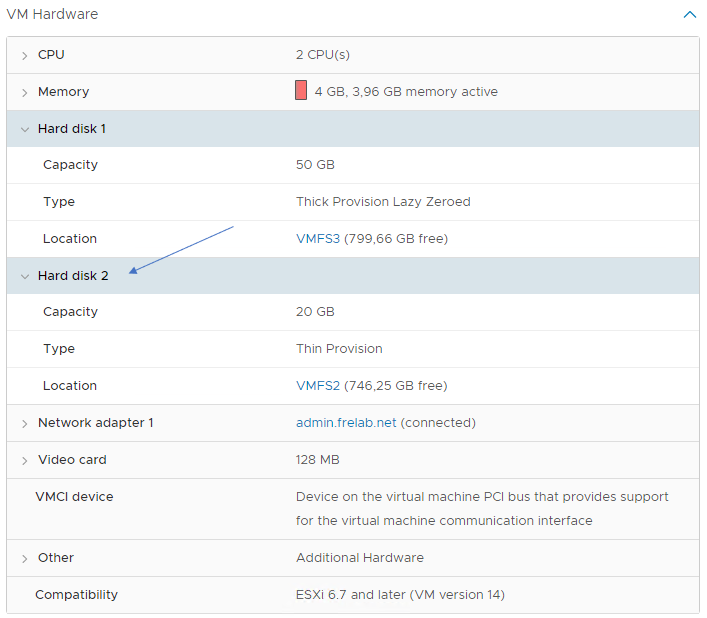

In vSphere I can verify that the AppStack is attached to my capture machine

Upgrade_Appstack-09

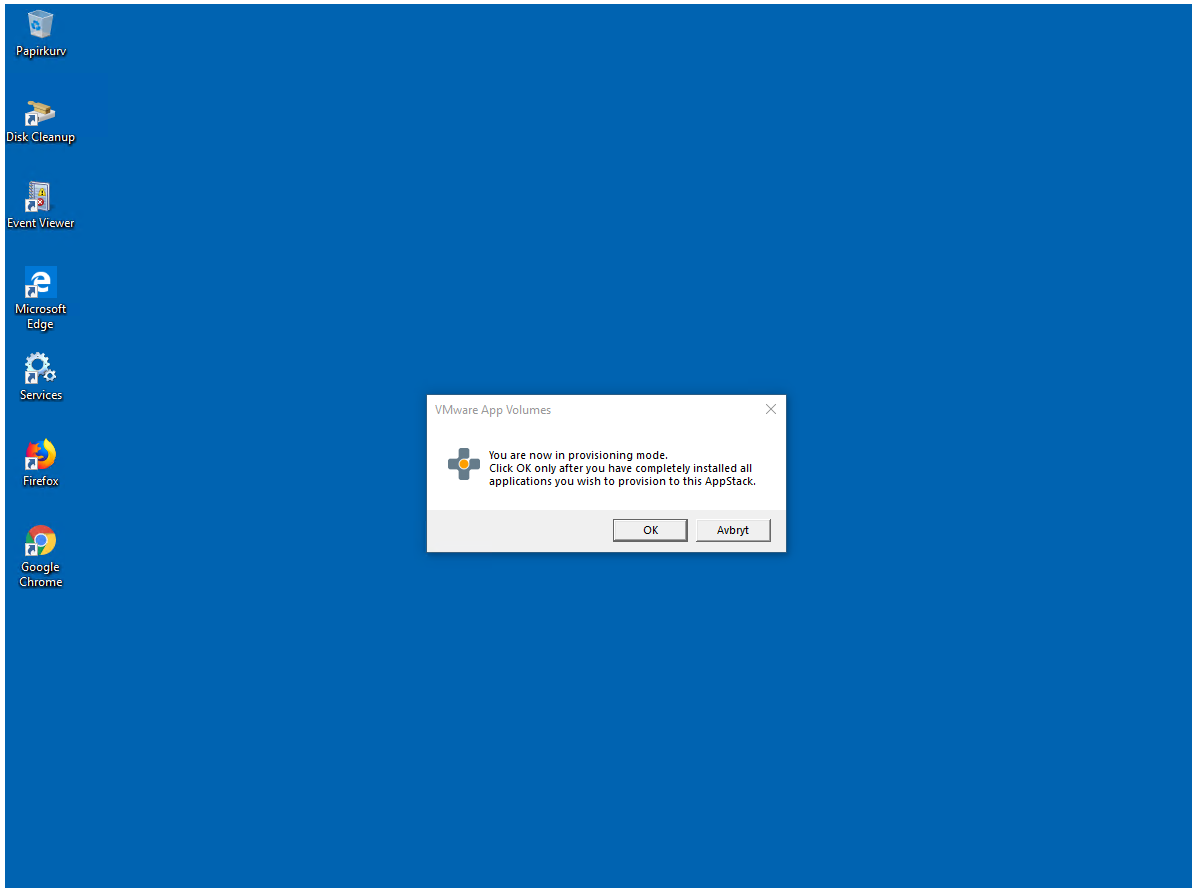

When I log in to the capture vm, I will see the familiar provisioning prompt.

Upgrade_Appstack-10



Now that I’m in provisioning mode, I upgrade Google Chrome, Mozilla Firefox and install the Opera browser. I launch all my browsers to verify functionality and reboot the capture vm. Once more I launch the browsers before I click OK in the capture prompt.

Upgrade_Appstack-11

Upgrade_Appstack-12

Upgrade_Appstack-13

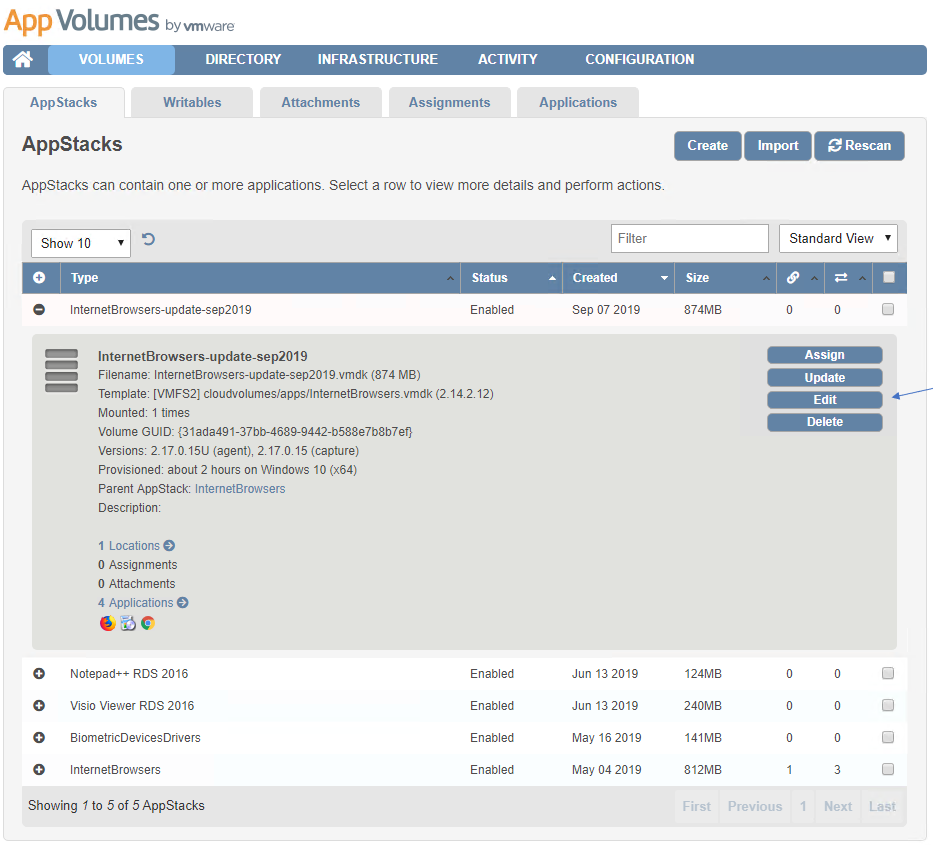

I revert to my latest snapshot and head over to the App Volumes Manager to proceed. My new AppStack is now ready for use, but before I assign it, I will update the description with version info. I click Edit and update the description.

Upgrade_Appstack-14

Upgrade_Appstack-15



At this time, I can delete the ParentAppstack, but before that, I have to unassign the current assignments.

Upgrade_Appstack-16



As I chose to unassign at logout or reboot, I will have to reboot the desktops before I proceed

Upgrade_Appstack-17



Now that there are zero Assignments and Attachments, I click Delete to remove the AppStack

Upgrade_Appstack-18



This concludes my session about updating AppStacks. I have seen in some environments with 2.17, that the capture process doesn’t launch, if I log into the capture vm before I start the provisioning in App Volumes Manager. Although I can see that the vmdk is attached to the VM, the capture prompt doesn’t launch in Windows 10. If I log off and log in again, the capture prompt does launch…weird. I suspect that this is a little bug in 2.17 but haven’t found any other workaround except the one i mentioned above.
