VMware App Volumes – Upgrade Manager to v. 2.17

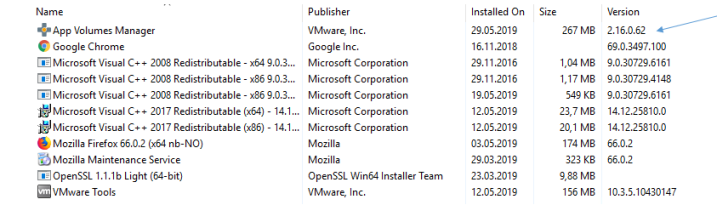

Welcome to my VMware App Volumes series. In this session I will describe the steps I took to upgrade my App Volumes Manager. My initial installation of VMware App Volumes was done with v. 2.14. I have since upgraded it to 2.16. In this session I will upgrade from 2.16 to 2.17 which was released on July 2 2019. When I log in on my App Volumes Manager server, I can verify the installed version in Control Panel.

UppgradeAppvolMgr-01



Before I do the upgrade of App Volumes manager, I shut down the server and take a snapshot. I also make sure to do a database backup of the App Volumes database. I furthermore check out the release notes from VMware posted here: VMware App Volumes 2.17 Release Notes

I also check out the compability vs. Horizon, here: VMware Product Interoperability Matrices

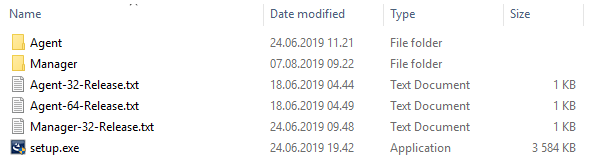

The necessary installation media I download from My VMware and unpack the ISO-file. From the «Installation» folder I launch the setup.exe file

UppgradeAppvolMgr-02



The App Volumes 2.17 Installation Wizard launches, Next…

UppgradeAppvolMgr-03

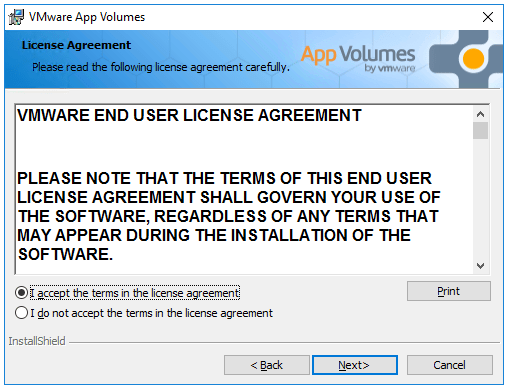

I accept the license terms, Next…

UppgradeAppvolMgr-04

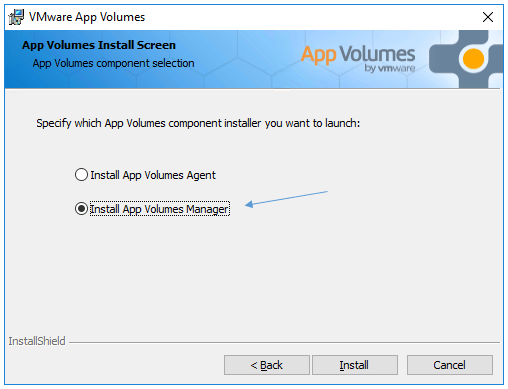

In the App Volumes Install Screen, I select “Install App Volumes Manager”, Install…

UppgradeAppvolMgr-05



This selection launches the App Volumes Manager Installation Wizard, Next…

UppgradeAppvolMgr-06



Install…

UppgradeAppvolMgr-07

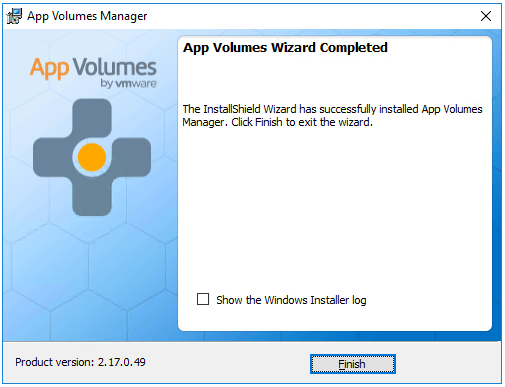

When the App Volumes Installation Wizard finishes, Finish…

UppgradeAppvolMgr-08



After the upgrade is complete, I verify installed version and reboot the server. (Although this probably isn’t necessary, I do this anyway to make sure changes are activated). When the server is up and running again, I log into the web GUI and verify my settings, AppStacks etc.

This completes my upgrade of the VMware App Volumes Manager. I will now proceed with updating the App Volumes Agent in my VDI Template, posted here: VMware App Volumes – Upgrade Agent
