VMware Horizon – Setup Server 2016 Instant Clone Template – Create Pool and test functionality

Release date: May 26th 2019

Welcome to my VMware Horizon series. In this sub-session I will describe how I created a pool for testing and verifying functionality.

Now that I’m done with all preparations of my template, I can finally log in to Horizon Administrator and create a pool.

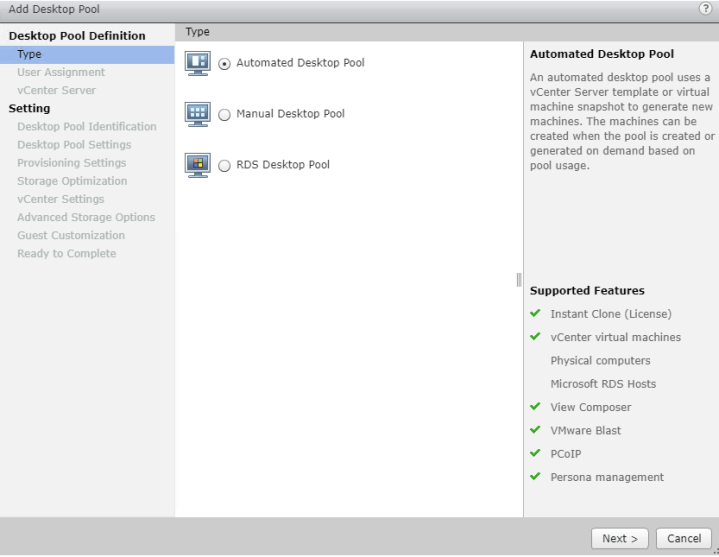

From the menu on the left, I select Desktop Pools, Add…In this session I will create an Automated Desktop Pool with Server 2016 Desktops, Next

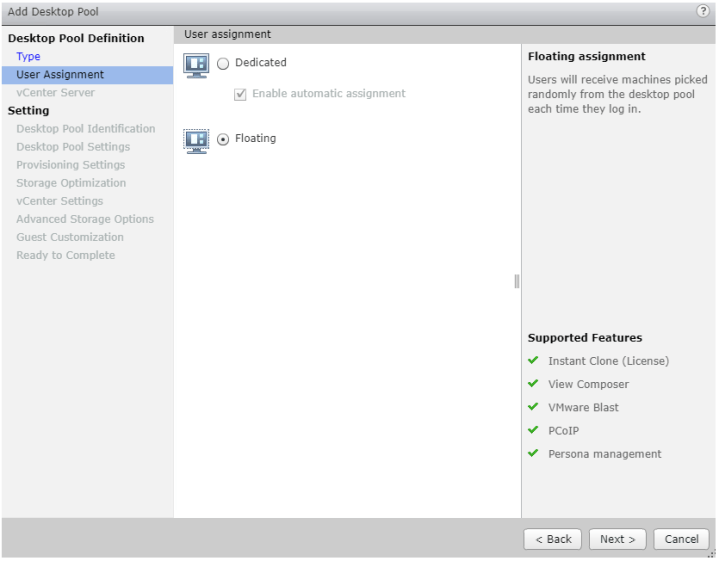

As I don’t have Distributed vSwitch in my lab, as of yet, my only possible option here is «Floating», see VMware’s documentation about Instant-Clone Desktop Pools here: https://docs.vmware.com/en/VMware-Horizon-7/7.7/horizon-virtual-desktops/GUID-D7C0150E-18CE-4012-944D-4E9AF5B28347.html

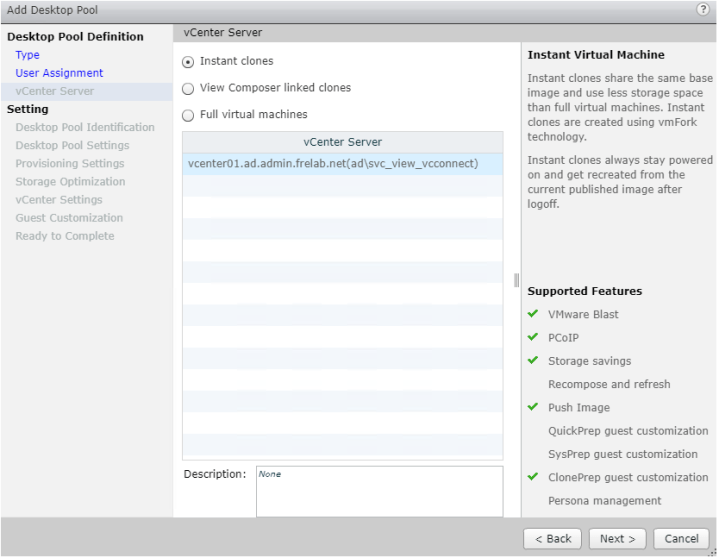

This pool will consist of Instant Clones, Next

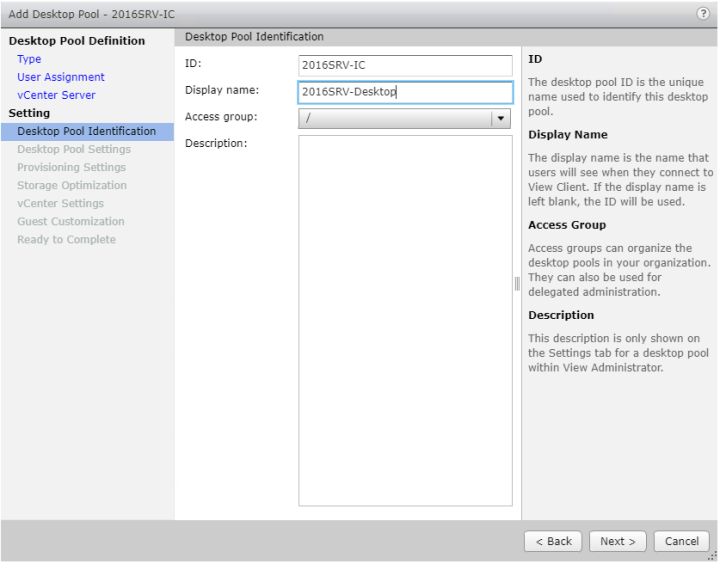

I give my pool an ID and a display name, this is what the users will see in their client, Next

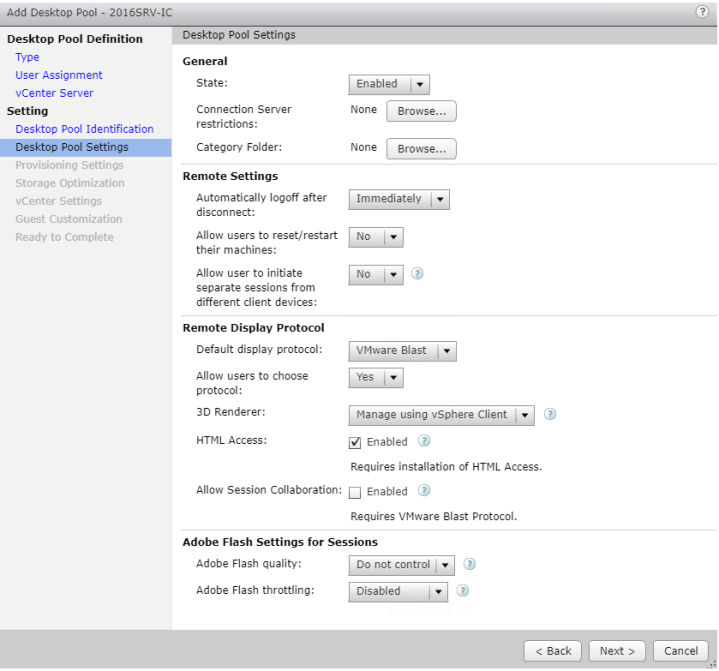

I adjust the desktop pool settings, Next

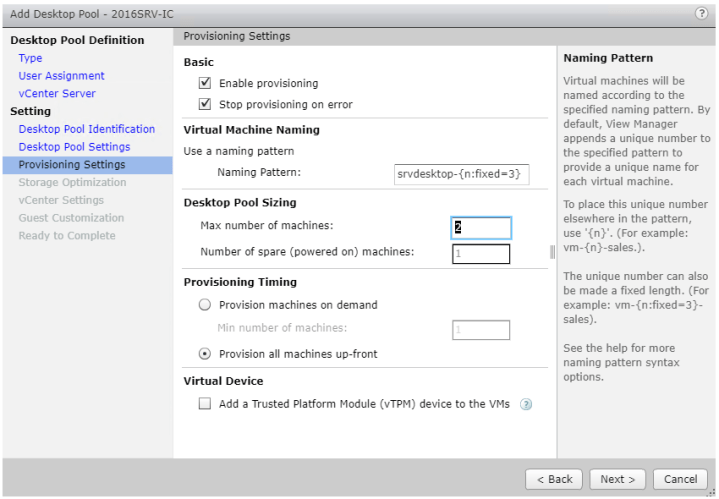

I fill in my vm naming pattern and desktop pool sizing, Next

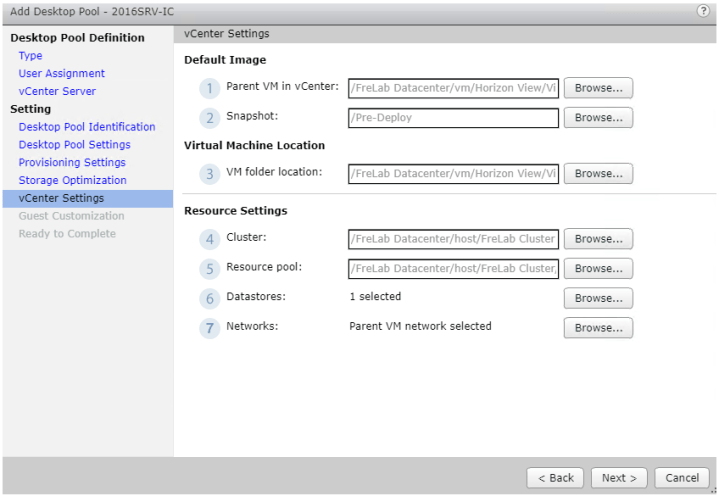

I add my vCenter settings….



Next I will browse MS Active Directory and select the correct OU for placing the computer accounts in, Next

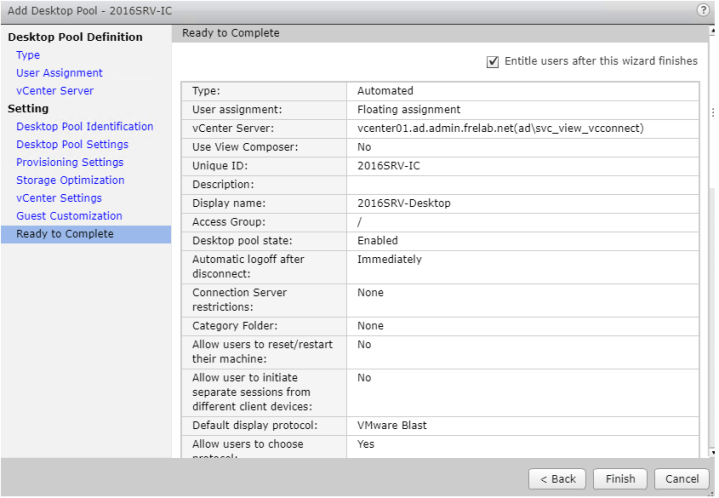

I tick «Entitle users after this wizard finishes», Finish

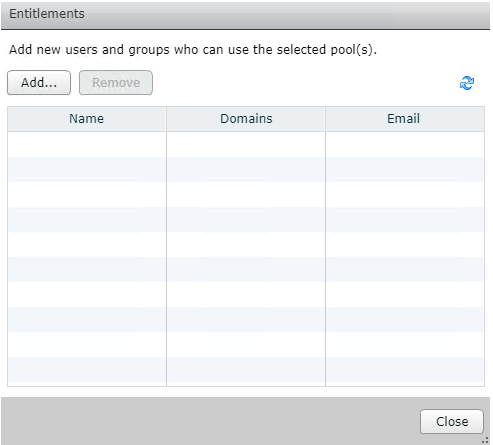

Click Add… to open the «Find Users or Groups»-wizard

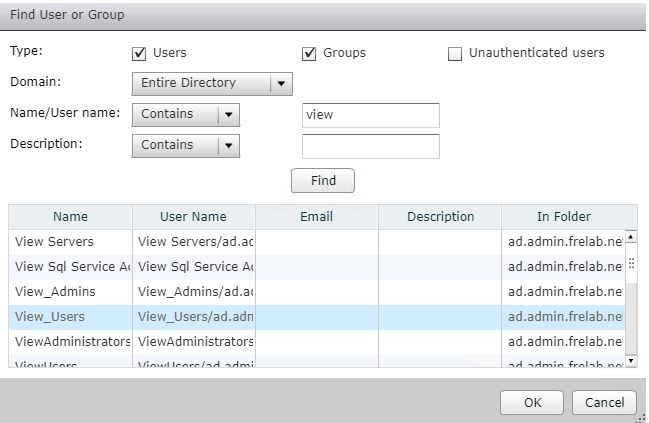

I search for my test-users group, View_Users, and adds this, OK

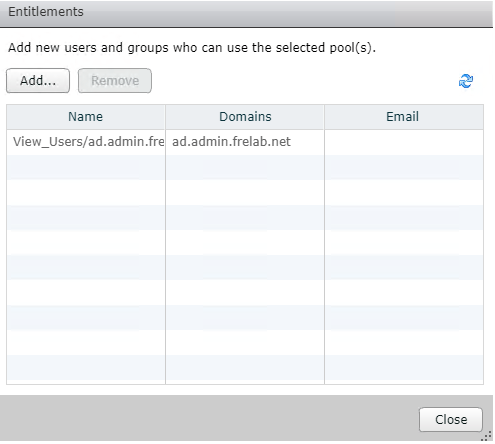

Entitlements done, Close



During provisioning I can verify status in Horizon Administrator



After deployment of the pool finishes, the state changes to «Published»

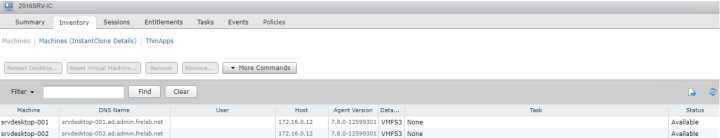

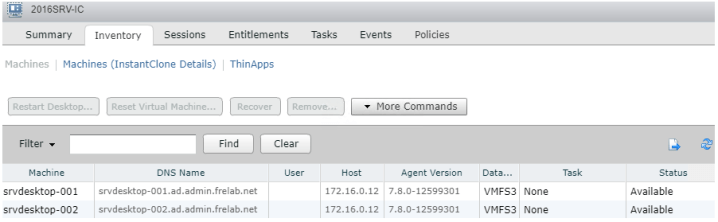

From the Inventory tab I can see two available virtual machines

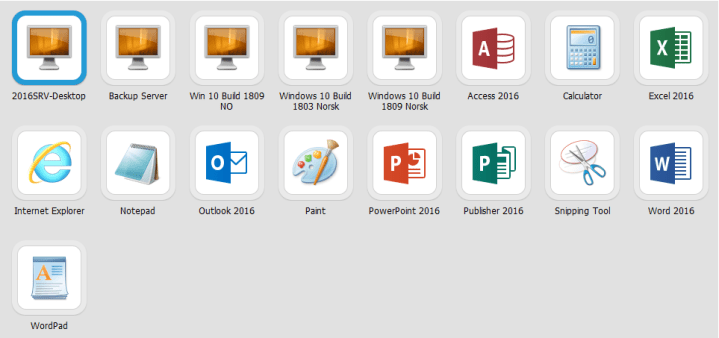

I fire up my VMware Horizon Client and see my new pool available

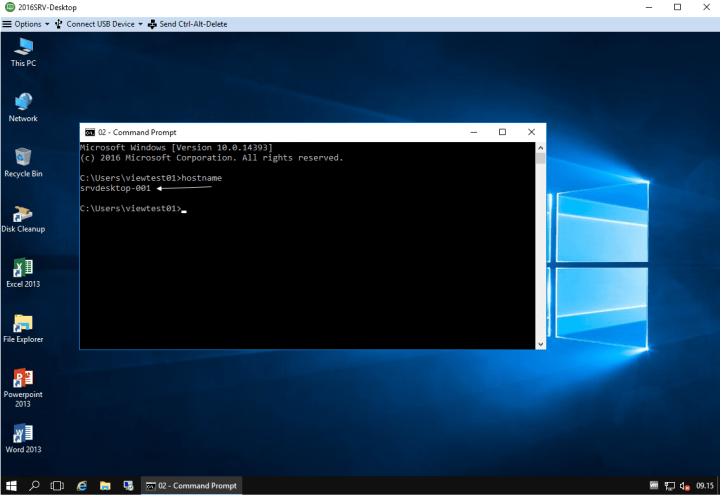

I log in to my 2016SRV-Desktop and verify functionality. In a cmd-prompt I check the hostname

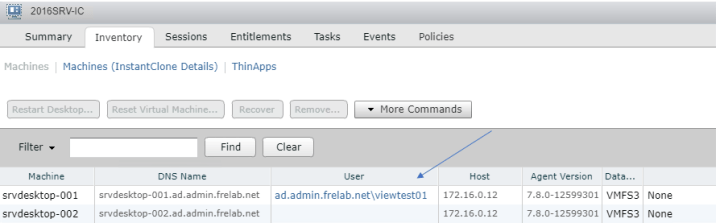

Back in VMware Horizon Administrator I can verify that my test-user is now connected to the vm: srv-desktop-001

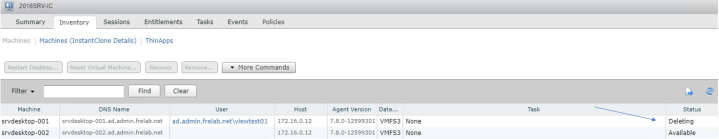

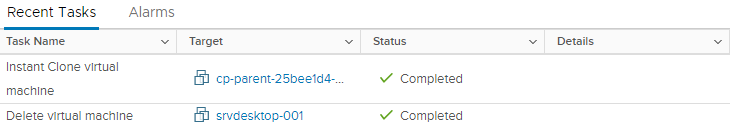

When I log out of my session, I see that the vm is deleted and a new created, both in Horizon Administrator and vSphere Web Client, as pr. design with all instant clones.




After a little while, the new instant clone is available in Horizon Administrator



Conclusion: Using a server operating system in an instant clone pool is totally doable if your license situation allows it. I would reccomend applying som gpo’s and settings to lock down the desktop afterwords.
