Release date: May 26th 2019
Welcome to my VMware Horizon series. In this sub-session I will describe how I generalized my Windows 2016 Server for Instant Clone usage.
I’m now ready to Sysprep and create a mandatory profile. Before I sysprep my image, I need to disable Password Complexity Requirements on Windows Server.
From gpedit.msc I change the local policy setting
Now it’s time to sysprep the image. First, I will create an answer-file for sysprep, unattend.xlm. I have modified mine as follows. A sample file is attached at the end of this page.
I copy unattend.xml to “C:\Windows\System32\Sysprep”

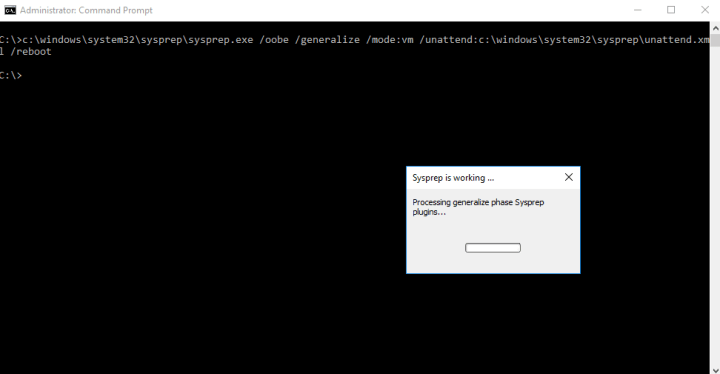

From an administrative cmd-prompt, I start sysprepping by running this cmd: “c:\windows\system32\sysprep\sysprep.exe /oobe /generalize /mode:vm /unattend:c:\windows\system32\sysprep\unattend.xml /reboot”

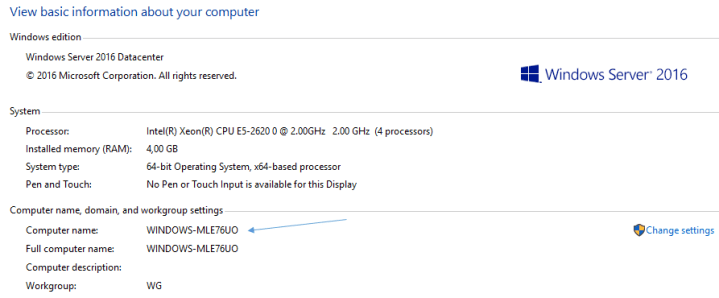

After sysprep is done and the server is restarted, we can verify that the server now has a typical “sysprep’ed” computername

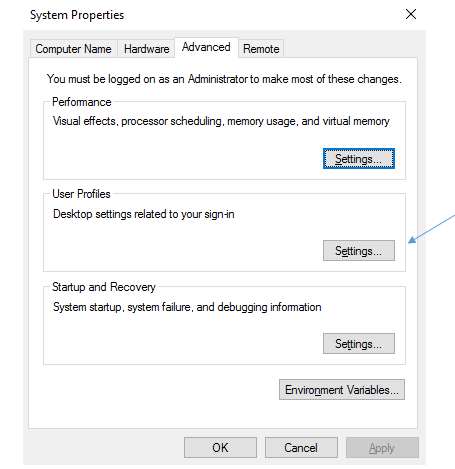

Next, I will create a mandatory profile. In Windows Explorer, Right-click “This PC” and click Properties. From the Advanced-tab I click Settings under User Profiles.
Select Default Profile, Copy To…

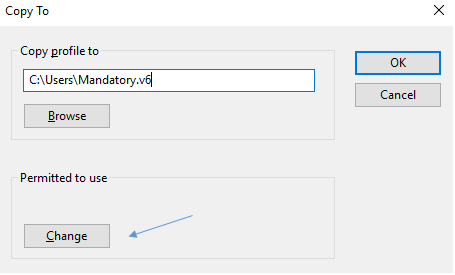

Copy profile to “C:\Users\Mandatory.v6” and click “Change” to set permissions

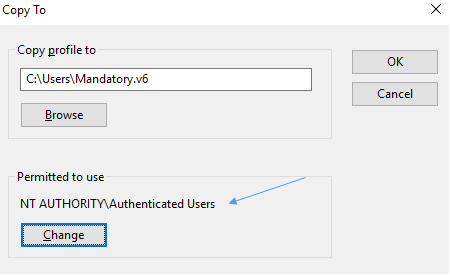

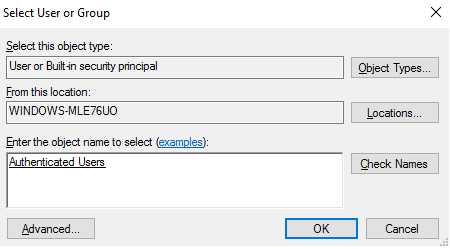

Select the user group: “Authenticated Users”

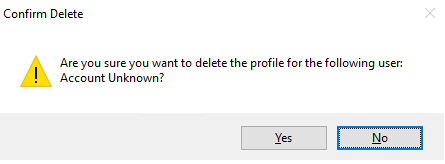

Back in the User Profile dialogue box, delete the Account Unknown-profile
Click OK to exit User Profiles windows

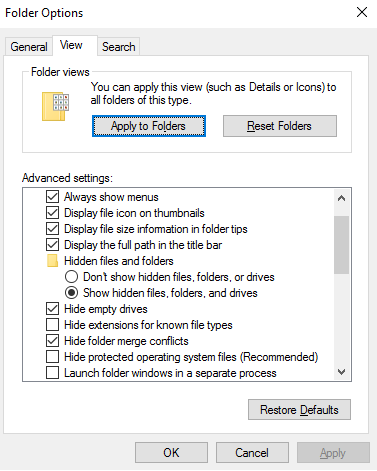

Back in Windows Explorer, I browse to C:\Users\Mandatory.v6 folder, choose view “Hidden Items” and deselect “Hide protected operating system files”
I rename the file ntuser.dat to ntuser.man

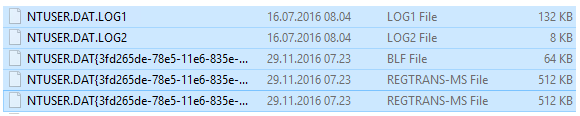

I delete all ntuser*.* files except ntuser.ini and ntuser.man
Lastly, I revert changes in the View Options I made above.
Unattend sample file: Unattend_xml
PS: Beware of formatting when doing copy/paste!
That concludes my session about how I generalized and prepared Windows in my template. My next logical step will be applications and agents, covered here: VMware Horizon – Setup Server 2016 Instant Clone Template – Install Agents and applications
