VMware Horizon – Connection Server Configuration

Release date: January 4th 2019

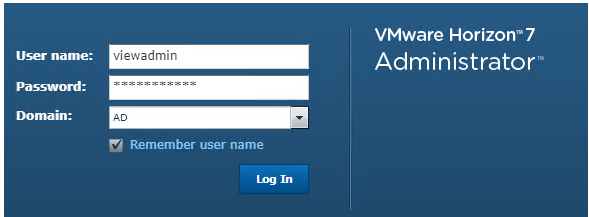

Welcome to my VMware Horizon series. In this session I will describe how I did the configuration-phase. The connection server is now installed and ready. We can now log into the Horizon Administrator and do some ground-work.

conn-cfg00

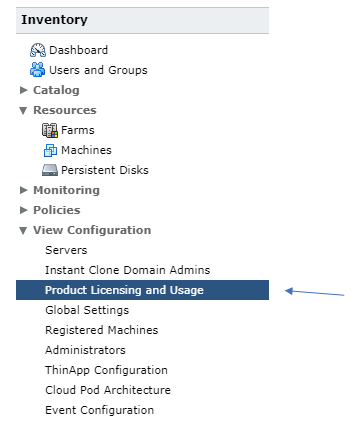

First thing I will take care of the licensing.Choose “Product Licensing and Usage”

conn-cfg01

Here I enter my NFR key which unlocks the functionality associated with my license

conn-cfg02

Next I will configure the Events DB that I setup during preparations here: VMware Horizon – Setup DB for EventsDB

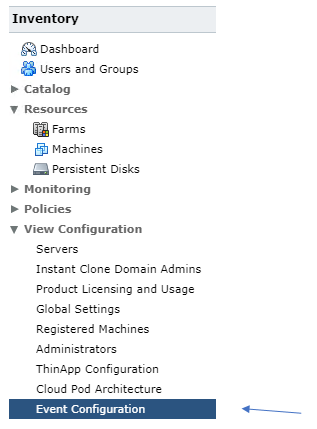

I choose Event Configuration from the menu on the left

conn-cfg03

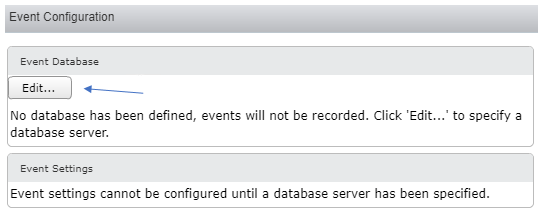

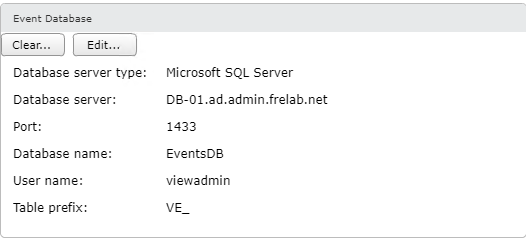

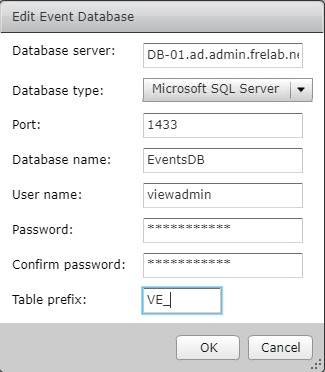

Click Edit and fill in the necessary information – OK (The Database user has to be a native sql-user, as domain service accounts aren’t supported as of yet!)

conn-cfg04
conn-cfg05
conn-cfg06

Next I will add my vCenter-server to the config, I choose Servers from the menu on the left.

conn-cfg07

I click Add, and fill in the necessary info

conn-cfg08

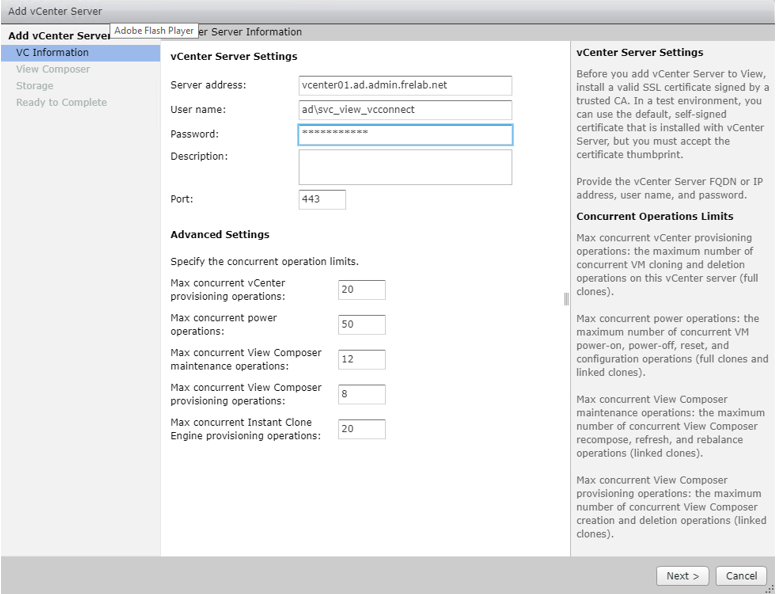

I will use the service-account I created during preparations.

conn-cfg09

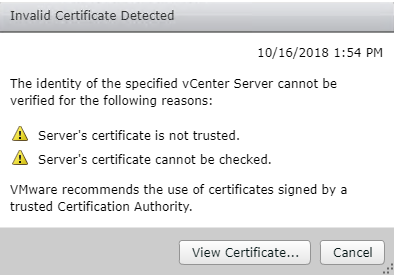

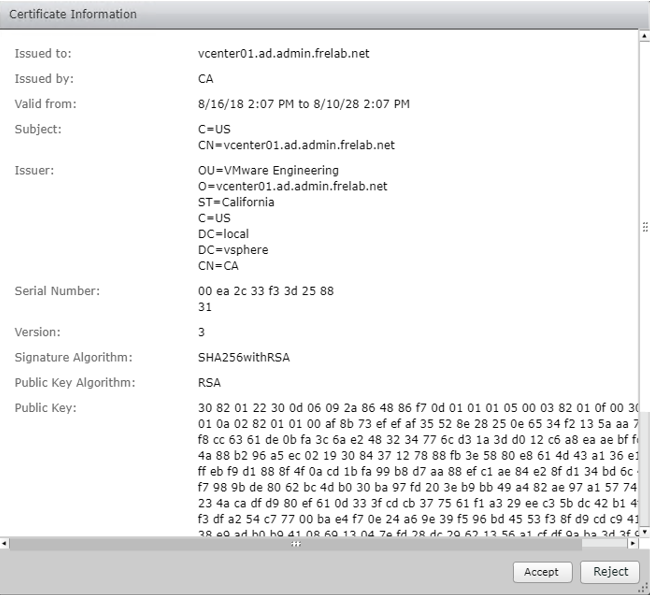

The certificate from my vCenter is by default untrusted, I click “View Certificate” and Accept in the following window.

conn-cfg10
conn-cfg11

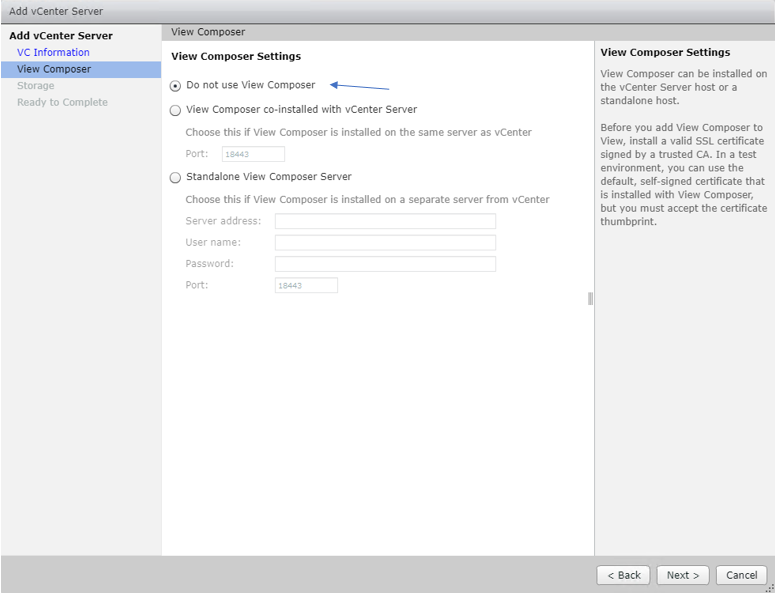

As I will be using Instant Clones in my LAB, I choose “Do not use View Composer”

conn-cfg12
conn-cfg13

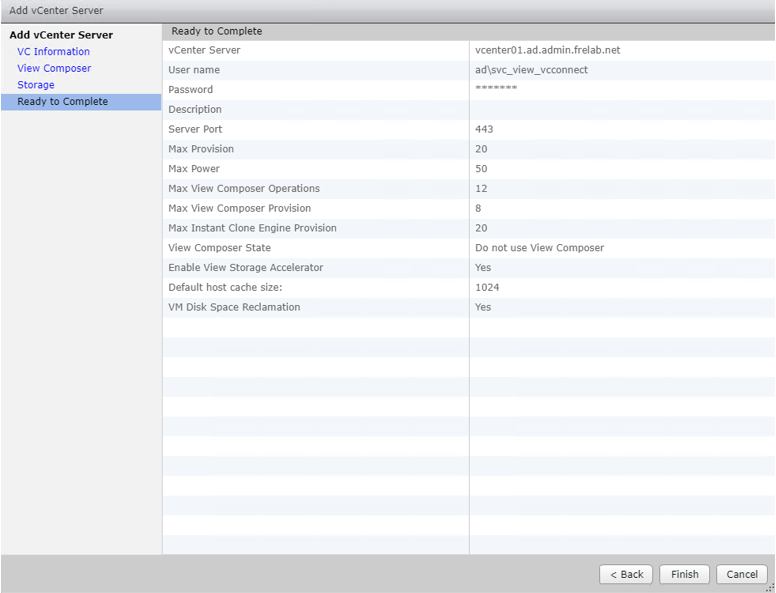

I review the settings and click Finish

conn-cfg14

Finally I will configure the “Instant Clone Domain Admins”. The user that I´m going to use as Instant Clone Domain Admin needs the following permission in order to add computer accounts for the VDI´s in Active Directory:

  • List Contents
  • Read All Properties
  • Write All Properties
  • Read Permissions
  • Reset Password
  • Create Computer Objects
  • Delete Computer Objects

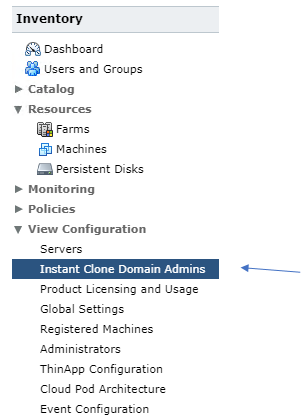

I choose “Instant Clone Domain Admins” from the menu on the left

conn-cfg15

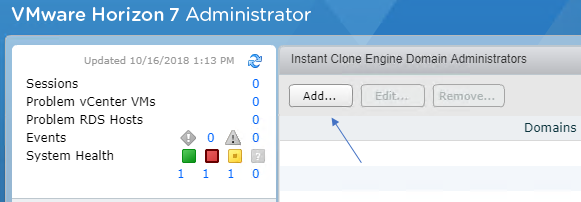

I choose “Add” and fill in the user I prepared for this use.

conn-cfg16
conn-cfg17

This completes my initial configuration of the Connection Server.
