VMware Horizon – Composer Server Install and setup

Welcome to my VMware Horizon series. In my initial design, I didn’t intend to have a composer server, but as I had to do some labbing around full clones based on 2016 RD in desktop pools, I needed to set up a composer server. Setting up a composer server isn’t very advanced, but be sure to check out the DB-requirements prior to set up, due to the fact that the installation will fail if we don’t setup a supported MS SQL version. This session I will describe how I did the setup of my composer server. This is based on Horizon View 7.7, as this Horizon View component came after I upgraded my Horizon-Lab to 7.7. I have, after I created this session, upgraded the Composer server to v. 7.8, covered here: VMware Horizon – Upgrade Horizon Composer to v. 7.8

Prior to installing the composer server, we need to review the pre-requisites layed out by VMware here:

https://docs.vmware.com/en/VMware-Horizon-7/7.7/horizon-installation/GUID-2CE6147A-6C32-48AD-8A92-C8406FA44B8B.html

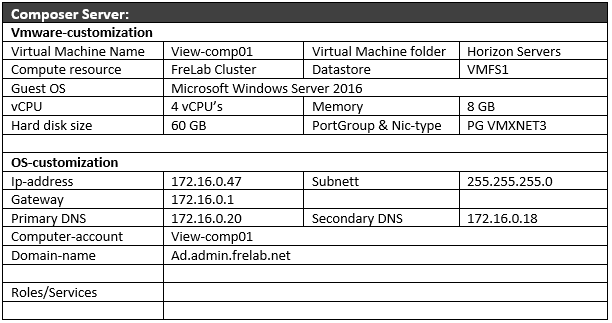

I will use my word-template which I filled in during preparations, when doing this task.

Prep



I deploy my new virtual machine with the OS of my choice, VMware Horizon 7.7 Composer server can be setup on:

I will be using Microsoft Windows Server 2016 in this Lab.

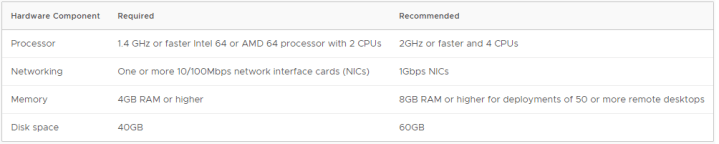

I customize the hardware accordingly to VMware’s Hardware requirements:

Composer_install-01

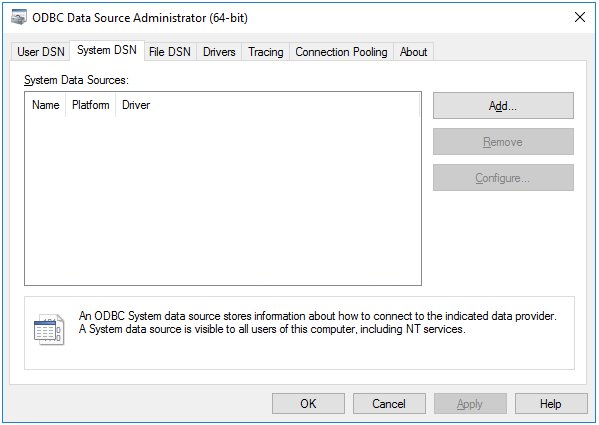

I give the server a meaningful computername, in this Lab it will be view-comp01, and join it to the domain. After reboot, I login in and add an ODBC connection to the VMware Horizon Composer DB I created in my preparations, covered here: VMware Horizon – Setup DB for Composer. I start by pressing “Add…”

Composer_install-02



I select SQL Server, Finish

Composer_install-03



I give my ODBC-connection a suitable name, ViewComposer, choose the correct server, Next…

Composer_install-04

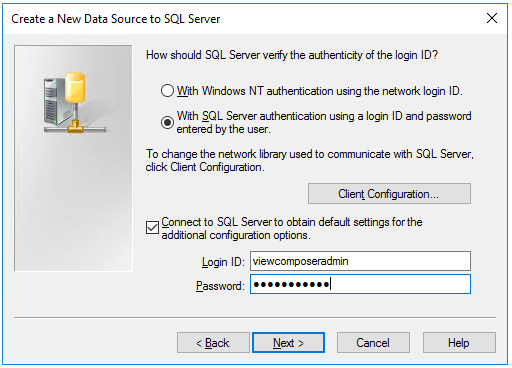

I enter the sql-user and password I defines during preparations of the viewcomposer-database, covered here: VMware Horizon – Setup DB for Composer

Composer_install-05

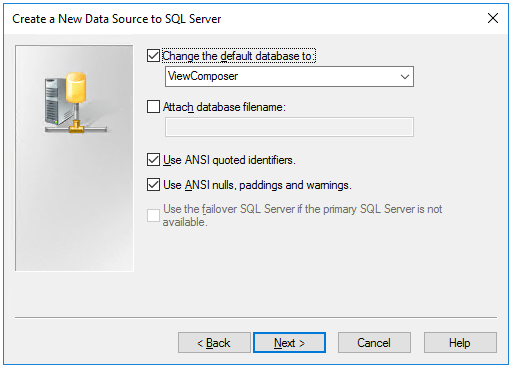

I change the default database to my ViewComposer-database

Composer_install-06

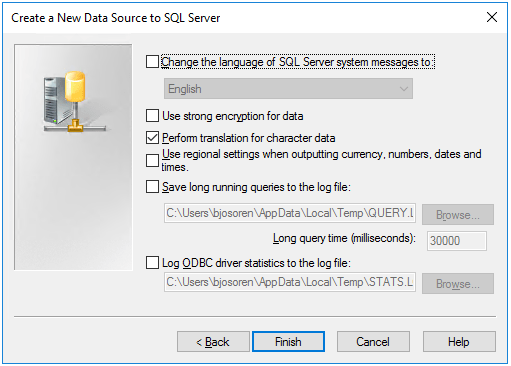

Finish…

Composer_install-07

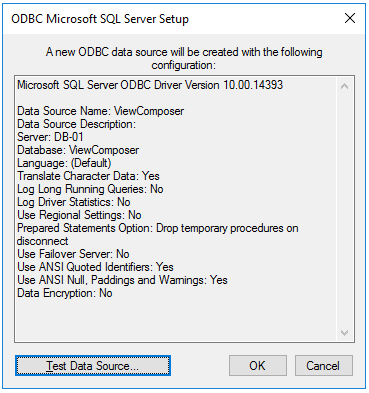

I click “Test Data Source”…

Composer_install-08

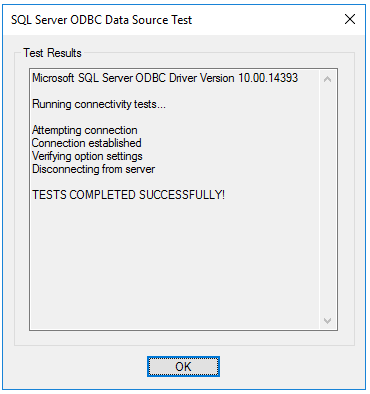

Successful, OK

Composer_install-09

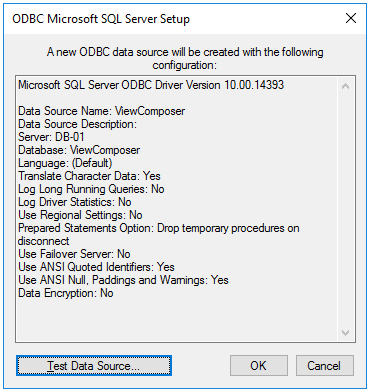

OK

Composer_install-10

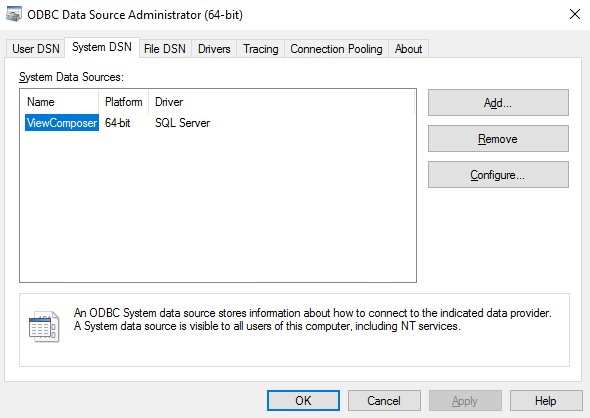

Now that my ODBC-connection is successfully set up, I can proceed with the actual composer server install.

Composer_install-11



Download Vmware Horizon 7.7.0 Composer Server

Composer_install-12



Start the “VMware-viewcomposer-7.7.0-11038293.exe  ”

Run through the installation as follows:

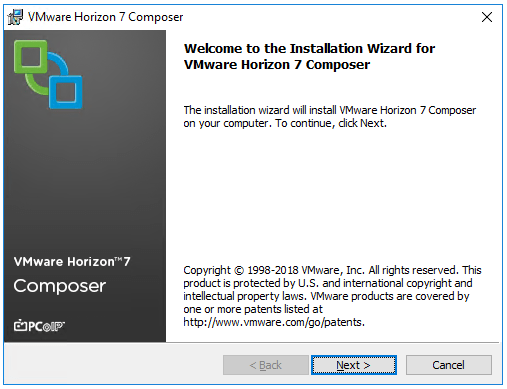

Next…

Composer_install-13

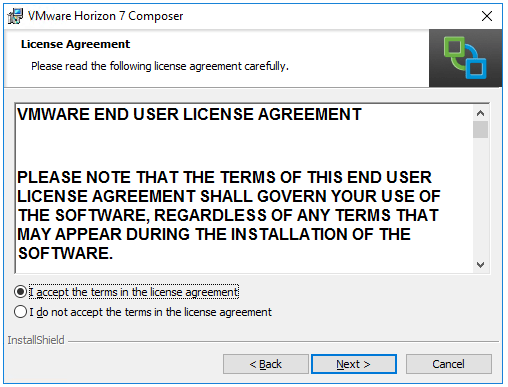

Accept the terms, Next..

Composer_install-14

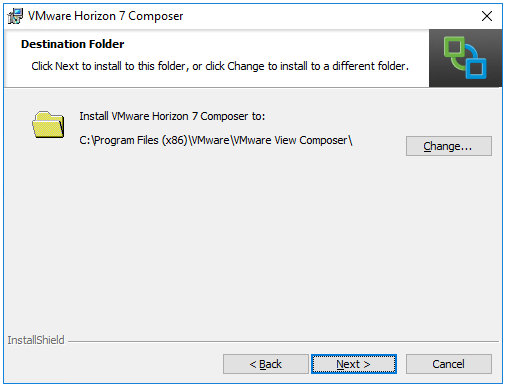

.Default destination folder is a good a location as any, Next…

Composer_install-15

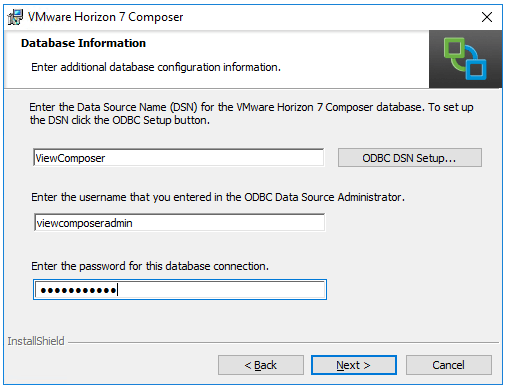

I enter the ODBC-settings I defined during the ODBC-setup, Next…

Composer_install-16



I will use the default SOAP-port, Next…

Composer_install-17



Install…

Composer_install-18

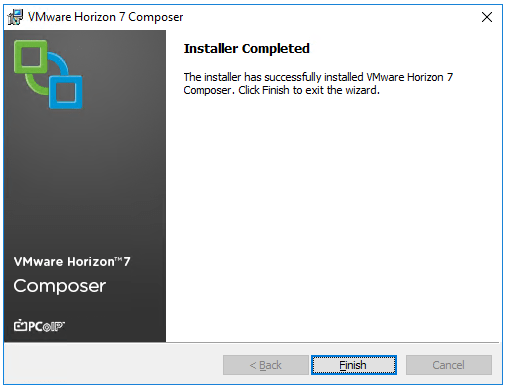

Finish…

Composer_install-19

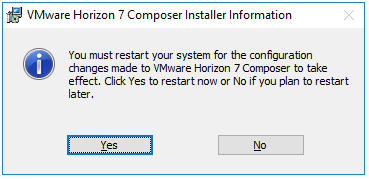

After the installer finish, I click Yes to restart the server.

Composer_install-20



When the server has restarted, I log in and check that the Composer service has started, prior to configuring the VMware Horizon Connection server with composer functionality. From the menu I select “Servers”

Composer_install-21



I choose Edit on my vCenter-server

Composer_install-22

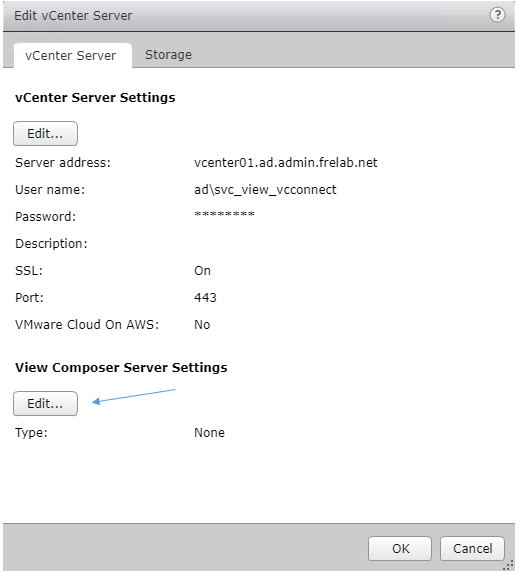

Under View Composer Server Settings, I click Edit

Composer_install-23

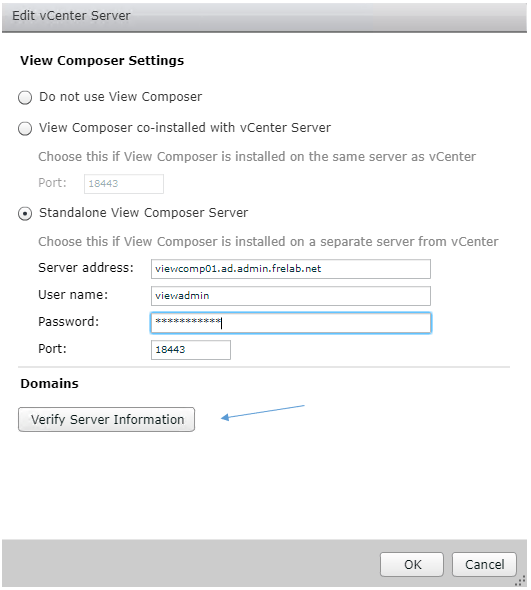

I select Standalone View Composer Server and enter the server name, credentials and port-number I selected during installation of the composer server

Composer_install-24

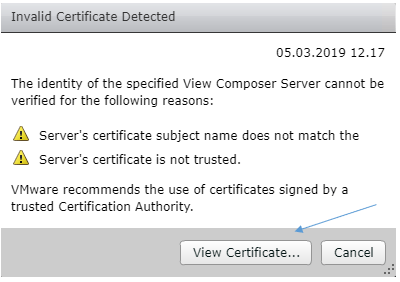

This will prompt av warning due to certificate, I click View Certificate…

Composer_install-25

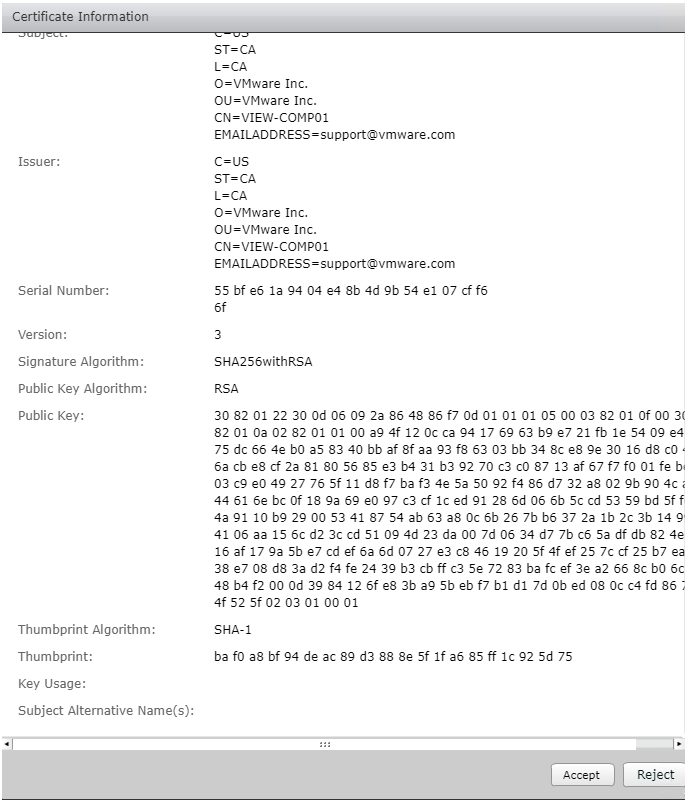

I click Accept on the Certificate information pop-up

Composer_install-26

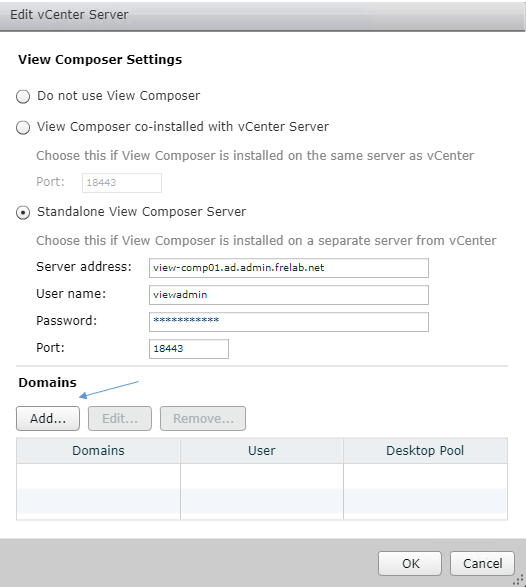

Next I choose to add my Domain

Composer_install-27

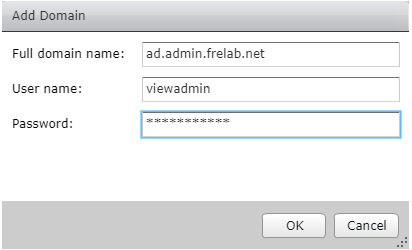

I fill in the necessary domain-info, OK

Composer_install-28

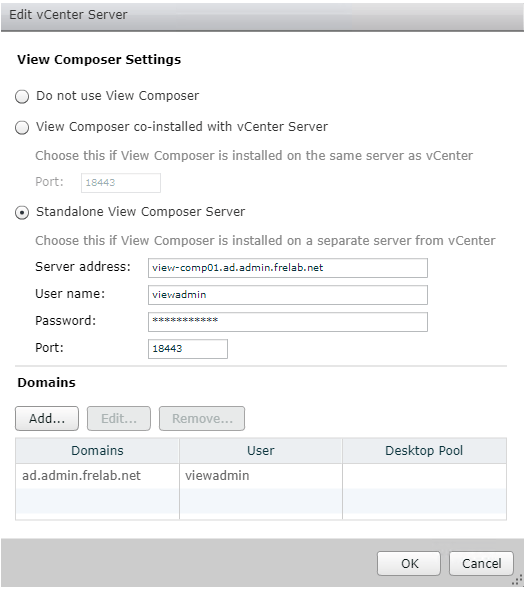

Having finished the composer and domain-setup, I click OK

Composer_install-29

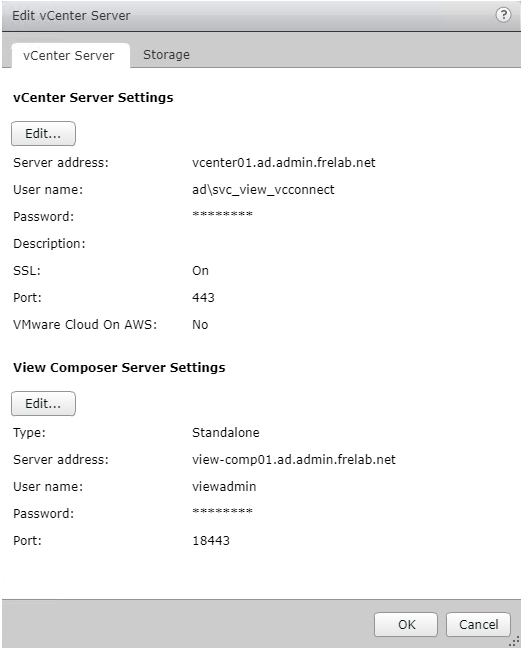

Looking good, job well done, OK…

Composer_install-30
