VMware Horizon – Setup Server 2012R2 RDS Template – Customize Windows

Welcome to my VMware Horizon series. In this sub-session I will describe how I customized Windows in my MS Server 2012R2 RDS template prior to installing agents and applications.

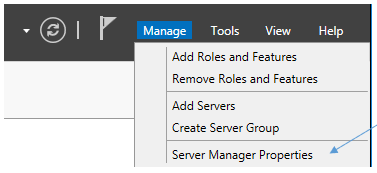

After successfully deploying a new 2012R2 vm in my previous session, I’m now ready to proceed with customizing the MS 2012R2 Server. Normally I would update the server from MS Windows Update, but as I keep my vm templates updated on a regular basis, this won’t be necessary in this session. The first thing I do with my template is to disable Server Manager startup automatically at logon and disable IE Enhanced Security.

Customize2012r2-01

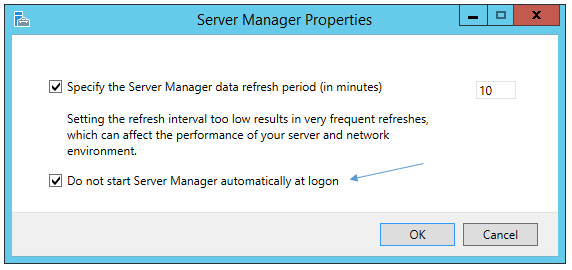

Customize2012r2-02

Customize2012r2-03

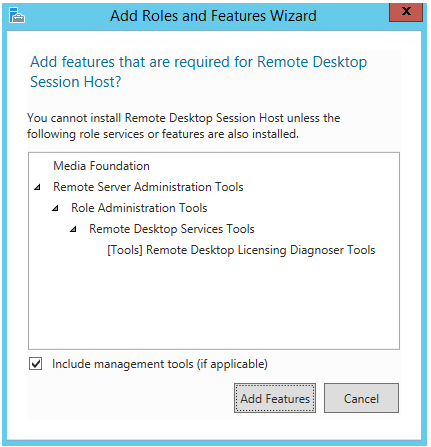

Next I will add the RDS-role and Desktop Experience Feature

Customize2012r2-04

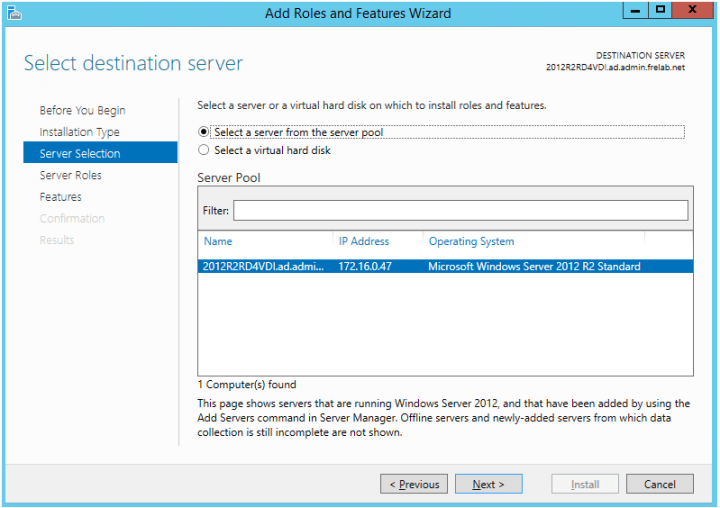

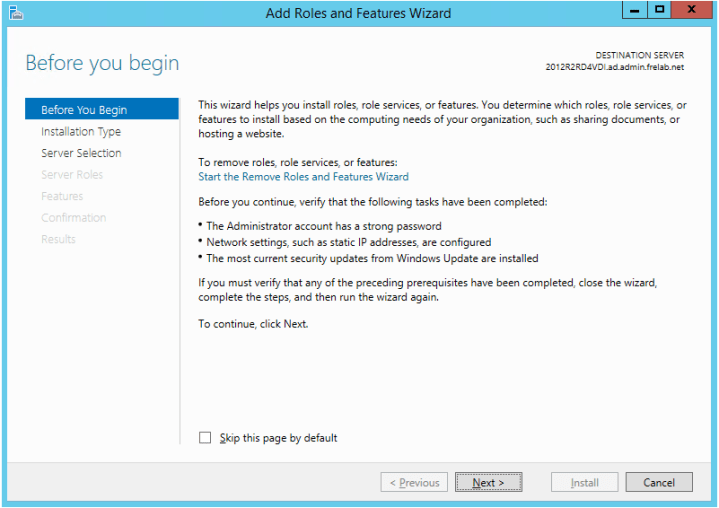

I start the “Add Roles and Features Wizard” in Server Manager, Next

Customize2012r2-05

Customize2012r2-06

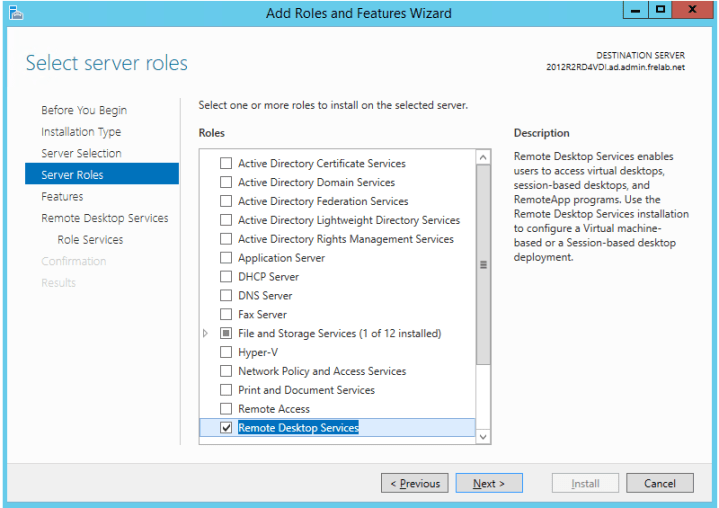

Customize2012r2-07

Customize2012r2-08

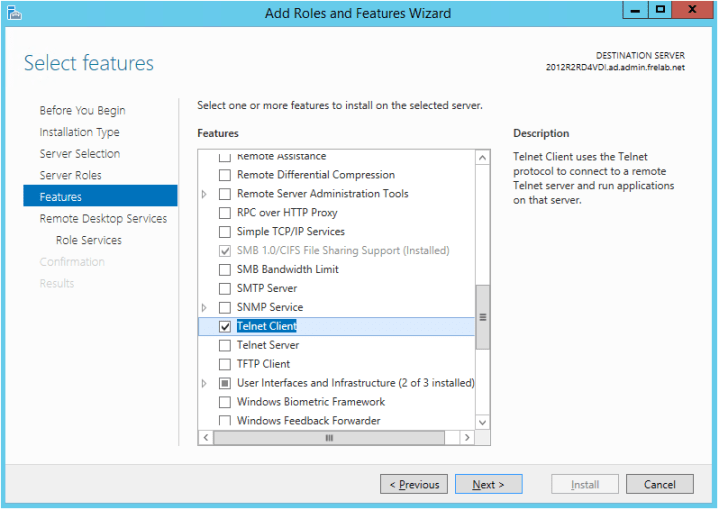

The Telnet Client comes in handy often, therefore I add this as well

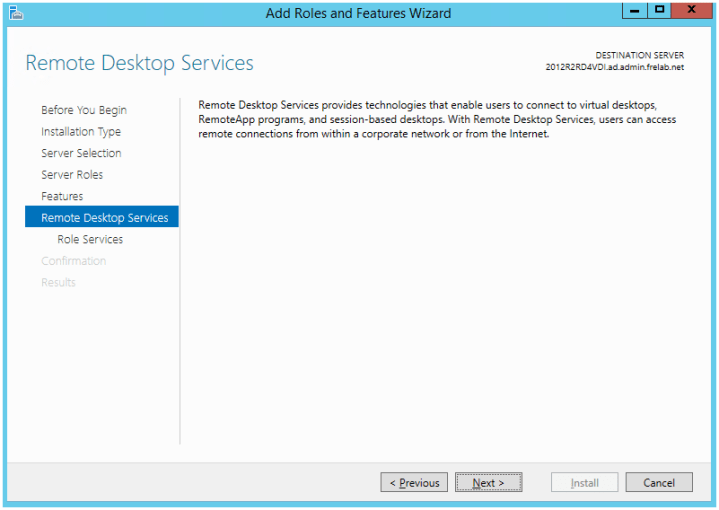

Customize2012r2-09

Customize2012r2-10

Customize2012r2-11

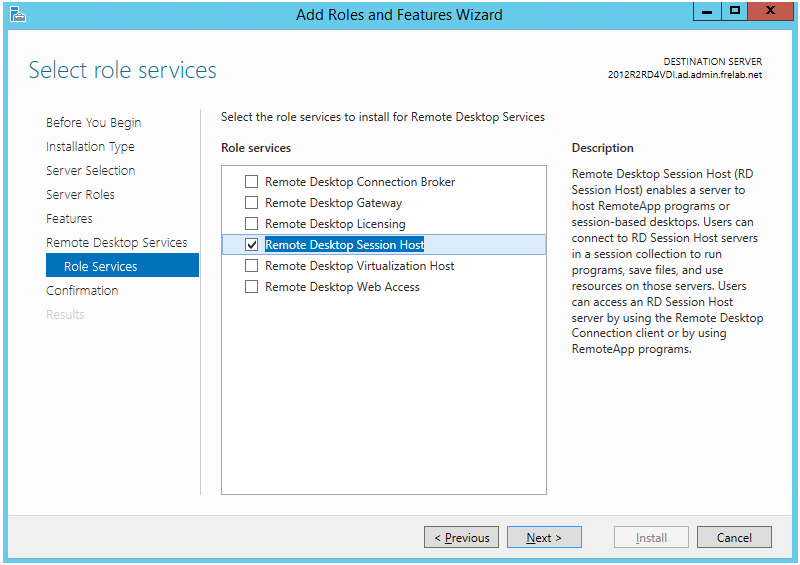

Customize2012r2-12

Customize2012r2-13

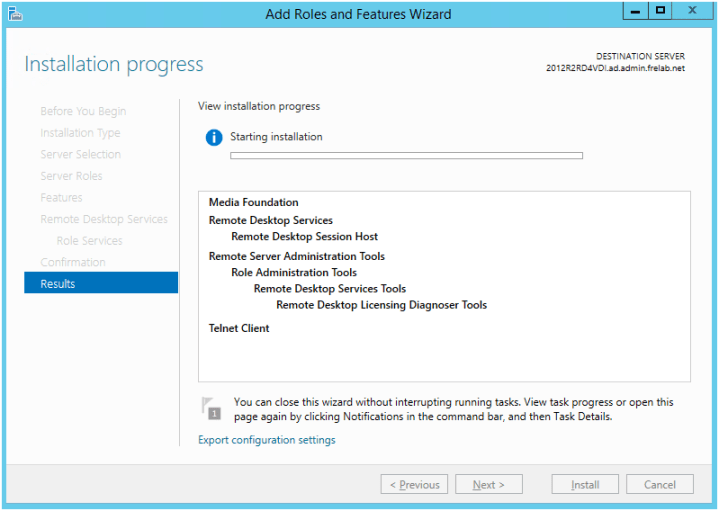

Customize2012r2-14

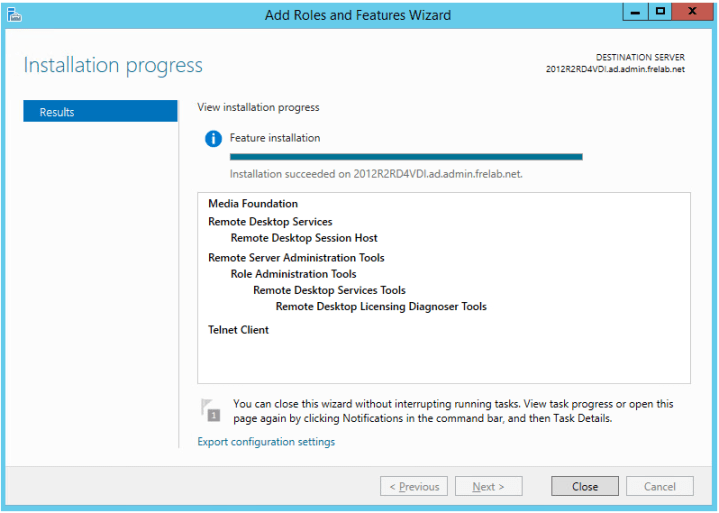

Customize2012r2-15

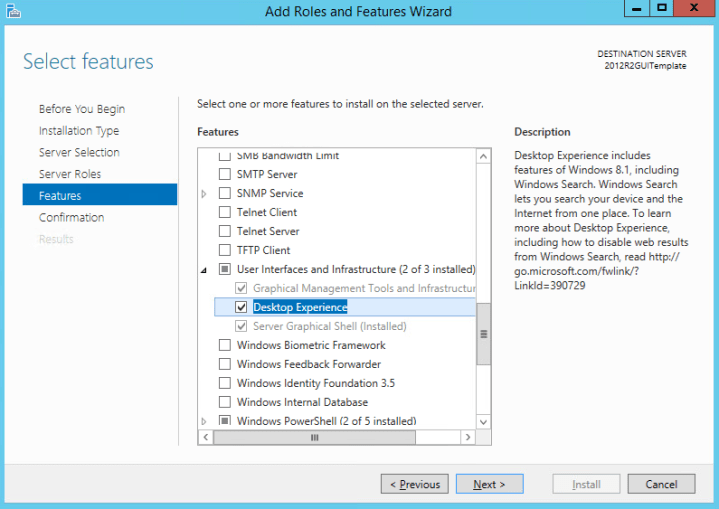

As I forgot to add the Desktop Experience feature above, I restart the wizard and add this feature.

Customize2012r2-16

Customize2012r2-17

Customize2012r2-18



The server will now be restarted to complete the installation of roles and features.

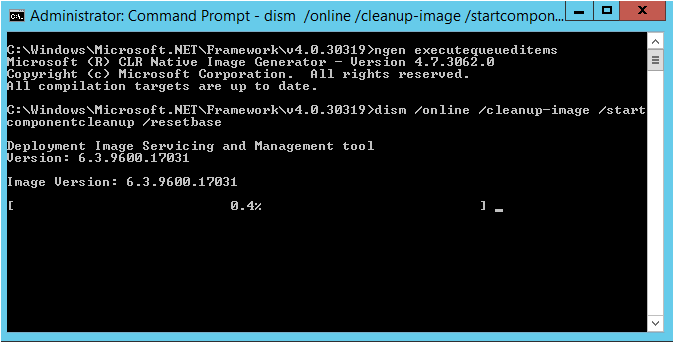

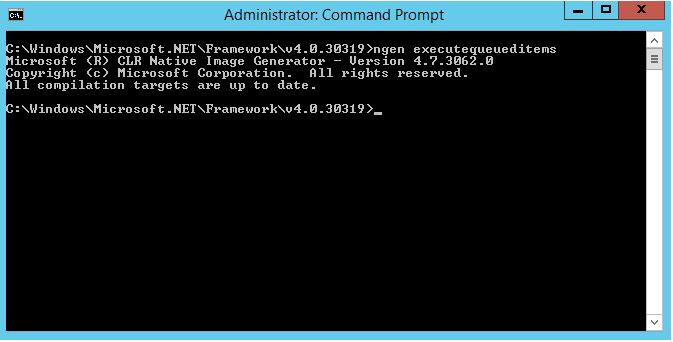

Once my 2012R2 RDS Server is restarted, I run “NGEN and Dism”-commands to optimize and compress the template.

Customize2012r2-19

Customize2012r2-20

Customize2012r2-21



That concludes my session about how I customized Windows Server 2012R2 in my template. My next logical step will be to generalize Windows Server 2012R2, covered here: VMware Horizon – Setup Server 2012R2 RDS Template – Generalize and prepare Windows
