VMware Horizon – Setup Server 2012R2 RDS Template – Generalize Windows

Welcome to my VMware Horizon series. In this sub-session I will describe how I generalized my Windows 2012R2 Server RDS

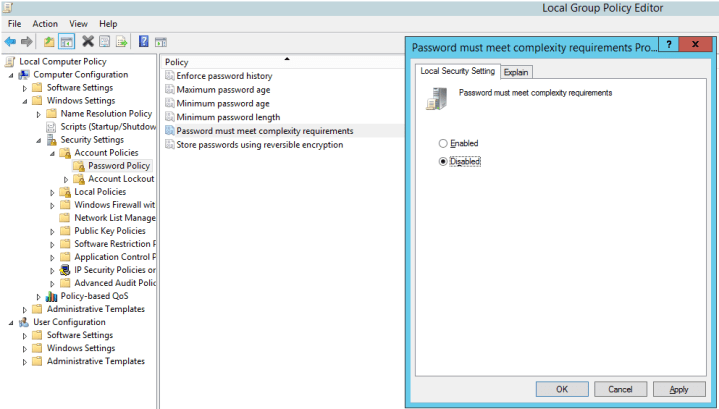

I’m now ready to Sysprep and create a mandatory profile. Before I sysprep my image I need to disable Password Complexity Requirements on Windows Server.

From gpedit.msc I change the local policy setting

GeneralizeWindows-01

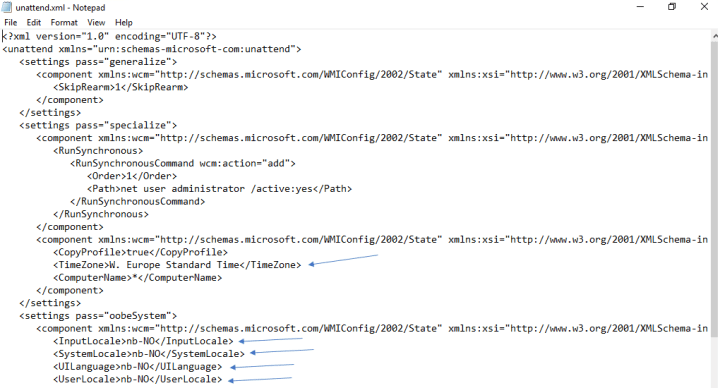

Now it’s time to sysprep the image. First, I will create an answer-file for sysprep, unattend.xlm. I have modified mine as follows. A sample file is attached at the end of this page.

GeneralizeWindows04

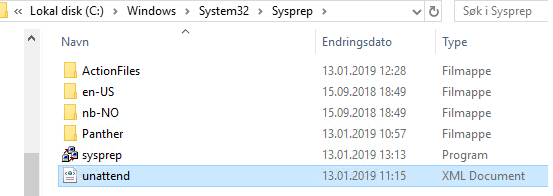

I copy unattend.xml to C:\Windows\System32\Sysprep

GeneralizeWindows05

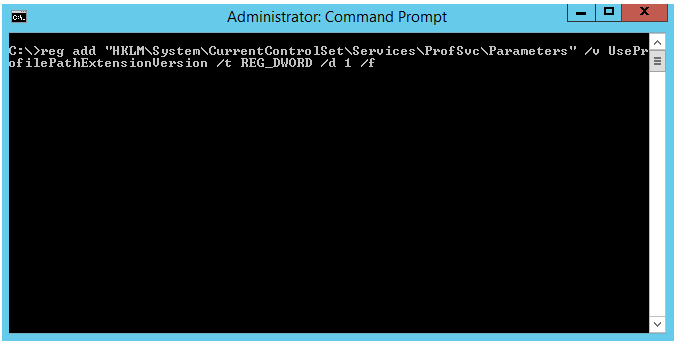

Since this is a 2012R2-server I need to add a registry entry for UseProfilePathExtensionVersion: “reg add “HKLM\System\CurrentControlSet\Services\ProfSvc\Parameters” /v UseProfilePathExtensionVersion /t REG_DWORD /d 1 /f”

GeneralizeWindows-03

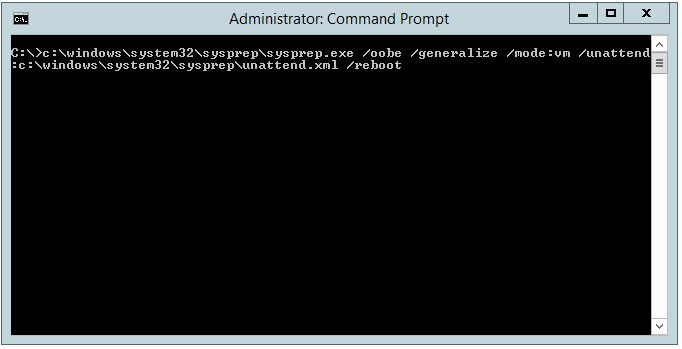

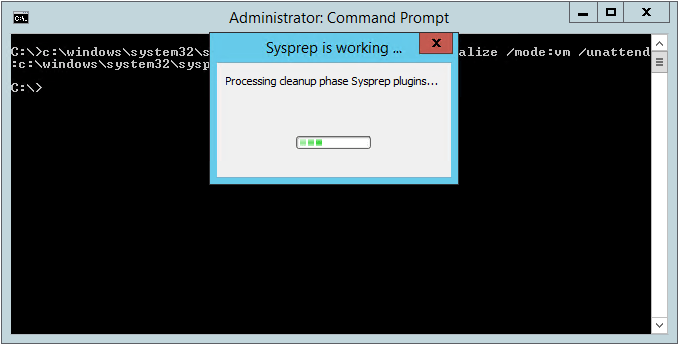

From an administrative cmd-prompt, I start sysprepping by running this cmd: “c:\windows\system32\sysprep\sysprep.exe /oobe /generalize /mode:vm /unattend:c:\windows\system32\sysprep\unattend.xml /reboot”

GeneralizeWindows-04

GeneralizeWindows-05

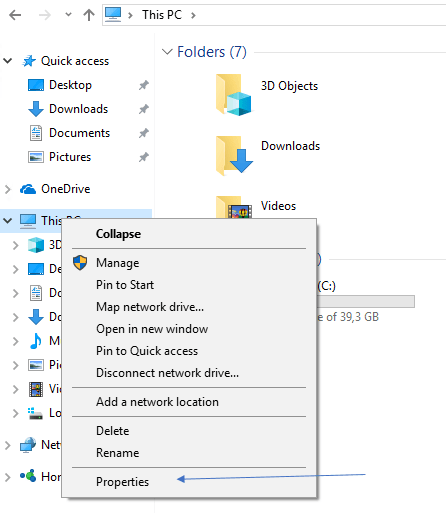

Once my VM is restarted, I will create a mandatory profile. In Windows Explorer, Right-click “This PC” and click Properties.

GeneralizeWindows07

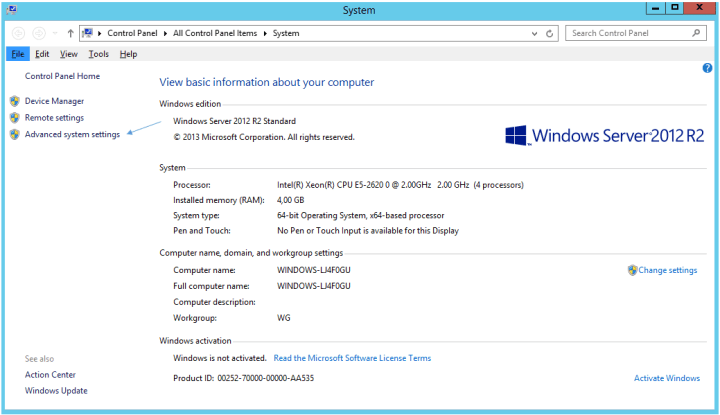

Next I select Advanced System Settings

GeneralizeWindows-06

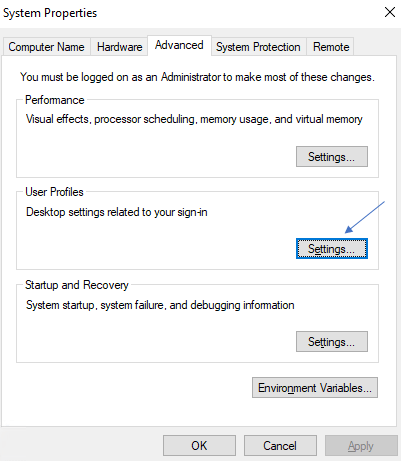

I Click “Settings” under User Profiles

GeneralizeWindows09

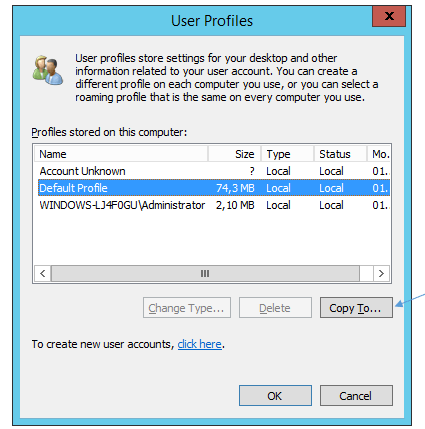

Select Default Profile, Copy To…

GeneralizeWindows-08

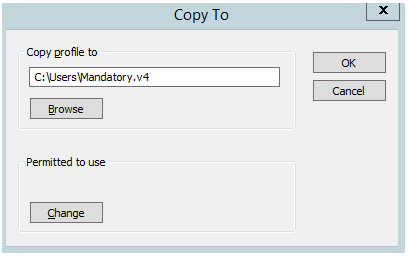

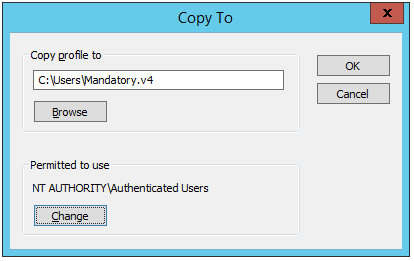

Copy profile to “C:\Users\Mandatory.v4” and click “Change” to set permissions

GeneralizeWindows-09

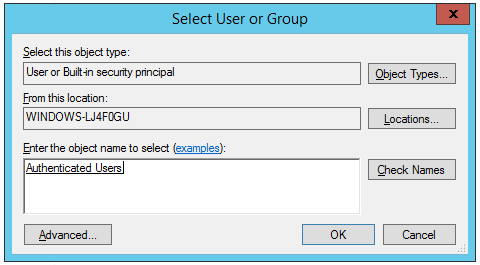

Select the user group: “Authenticated Users”

GeneralizeWindows-10



Click OK

GeneralizeWindows-11



Back in the User Profile dialogue box, delete the Account Unknown-profile

GeneralizeWindows-08

Click OK to exit User Profiles windows

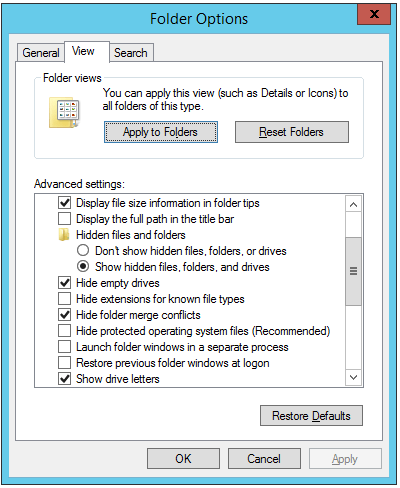

Back in Windows Explorer, I browse to C:\Users\Mandatory.v4 folder, choose view “Hidden Items”

GeneralizeWindows-12

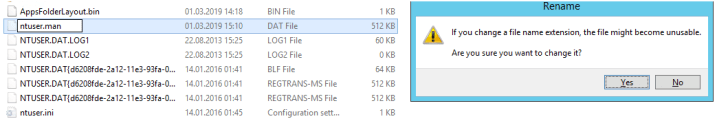

I rename the file ntuser.dat to ntuser.man

GeneralizeWindows-13

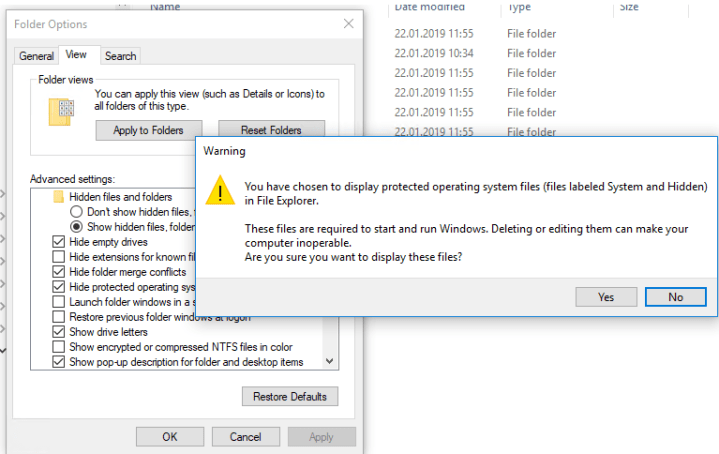

Next I choose to view protected operating system files from View Options

GeneralizeWindows19

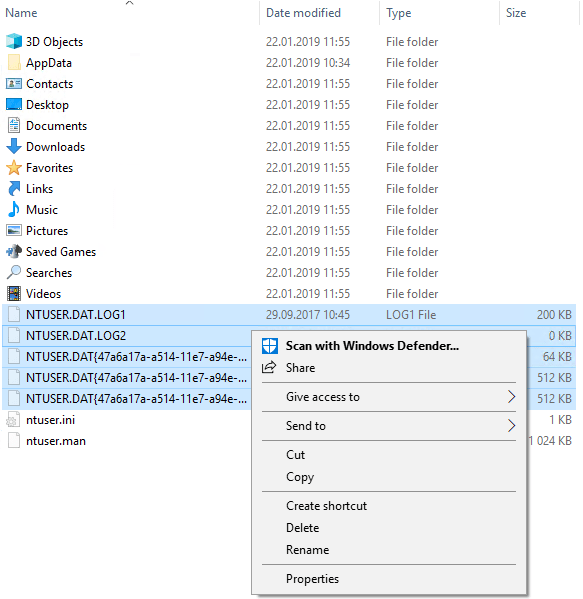

I delete all ntuser*.* files except ntuser.ini and ntuser.man

GeneralizeWindows20

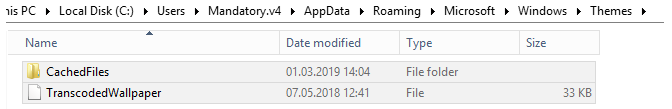

Delete Themes-files/Folders

GeneralizeWindows-14

Lastly, I revert changes in the View Options I made above.

Unattend sample file: Unattend_xml

PS: Beware of formatting when doing copy/paste!



That concludes my session about how I generalized and prepared Windows in my template. My next logical step will be applications and agents, covered here: VMware Horizon – Setup 2012R2 RDS Template – Install Agents and applications
