VMware Horizon View – Setup 2012R2 RDS Template, Install Agents and applications

Welcome to my VMware Horizon View series, how I setup “View” in my LAB. In this sub-session I will describe how I installed agents for Horizon, UEM & AppVol. In addition, I will briefly look at what applications I prefer to install into the template.

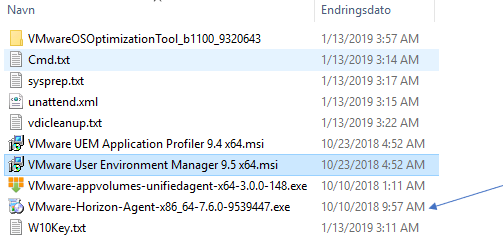

In preparations for this I have created an ISO-file with all the installation-media I will need for these tasks. This ISO I attach to my VM and copy the files to a Temp-folder inside my VM. I detach the ISO afterwards.

installagents00



VMware Horizon View Agent

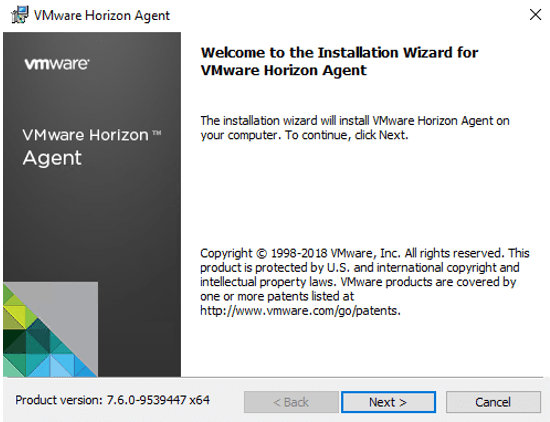

I will start with installing VMware Horizon View Agent.

installagents01

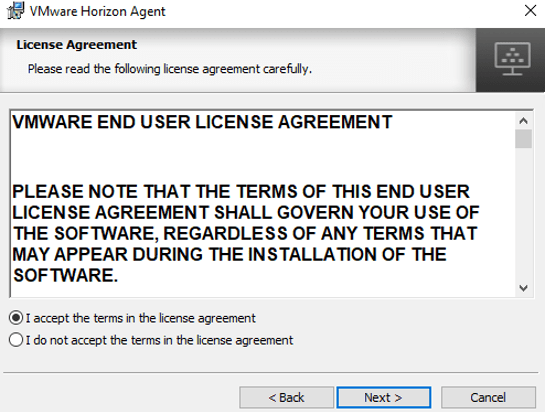

I accept the License Agreement

installagents02

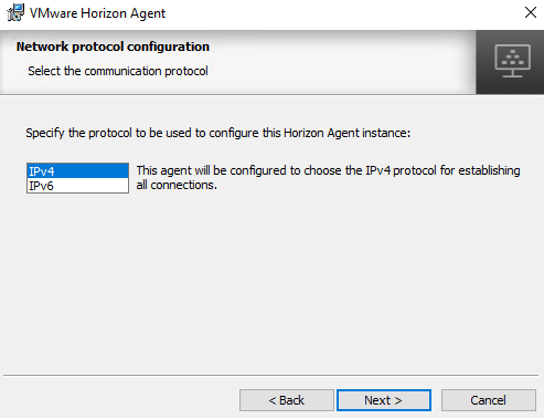

I select IPv4, Next

installagents03



I enable installation of USB Redirection and Instant Clone Agent, then disable installation of View Composer Agent

installagents04

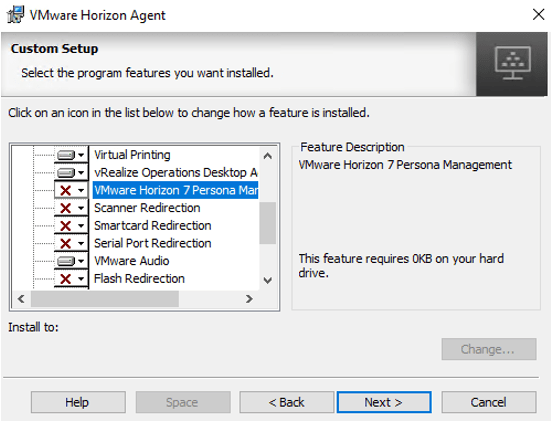

I disable installation of Persona Management

installagents05

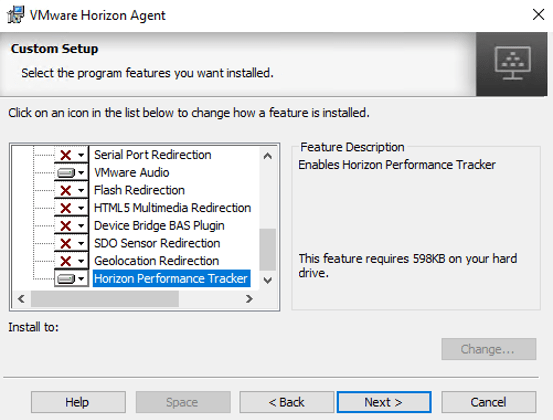

I enable installation of Performance Tracker

installagents06

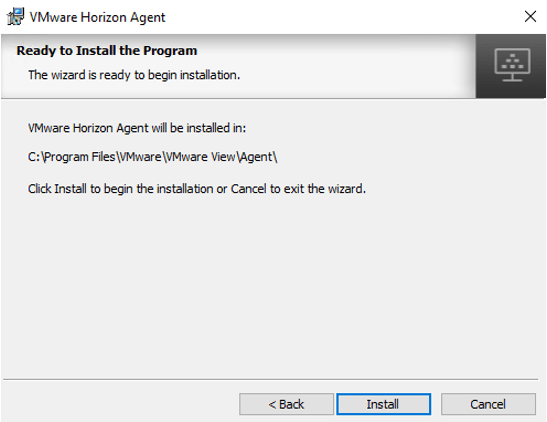

Click Install

installagents08

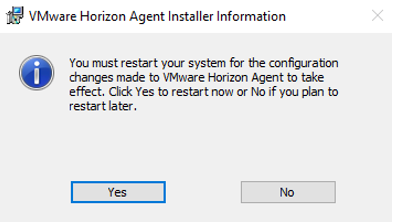

I click Finish When Installation Is Complete and restarts the VM

installagents09

installagents10



VMware UEM Agent

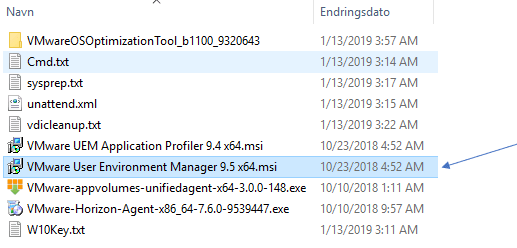

Next I will continue with installing VMware UEM Agent, I double-click the installer file to start the wizard, Next

installuemagent01



I start the “User Environment Manager Setup Wizard”, Next

installuemagent02



I select Ā«I accept the terms in the license agreementĀ», and click Next

installuemagent03



I select an Installation Folder, default location is good, Next

installuemagent04

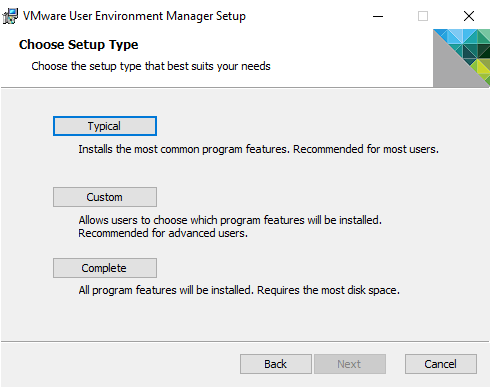

I select Typical, Next

installuemagent05



I click Next on the License File Page

installuemagent06



Click Install

installuemagent07



I click Finish When Installation Is Complete

installuemagent08



Applications installed in base image:

As a rule of thumb, I like to install applications that all my users will be using in the base image. All auto-update functionality will be disabled. Other applications that are more granulary delivered, I will push out with App Vols. For my lab-template I will install the following applications in the base image:

  • MS Office
  • Java
  • Adobe Flash & Shockwave Player
  • Silverlight
  • 7 Zip



That concludes my session about how and what agents and applications I installed in my template. My next logical step will be to optimize Windows 2012R2 Server with VMware OS Optimization Tool and more utilities, covered here: VMware Horizon View Setup Template – Optimize Windows
