VMware Horizon View – Setup 2012R2 RDS Template, Optimize Windows

Welcome to my VMware Horizon View series, how I setup “View” in my LAB. In this sub-session I will describe how I optimized my Server 2012R2 RDS template.

After I finished installing applications and agents in my previous session, I’m now ready to optimize the template using, among other, VMware OS Optimization Tool. This can be downloaded from: https://labs.vmware.com/flings/vmware-os-optimization-tool

I will also configure some local group-policies and do some optimizations with SDelete and the vdi-cleanup script from: https://www.plonius.com/single-post/2017/07/20/VDI-cleanup-script—the-decisive-factor



VMware OS Optimization Tool

When I start VMware OS Optimization Tools for the first time I check for updates before I proceed. Updates are found under the Public Templates section:

OptimizeWindows-01



Next, I’ll make a copy of the template I’m going to use, WindowsServer 2008-2012, click “Copy and Edit”




I give my template a new name

OptimizeWindows-03



I select my new template and change %USERPROFILE%\..\Default User\NTUSER.DAT to %USERPROFILE%\..\MANDATORY.V4\NTUSER.MAN.

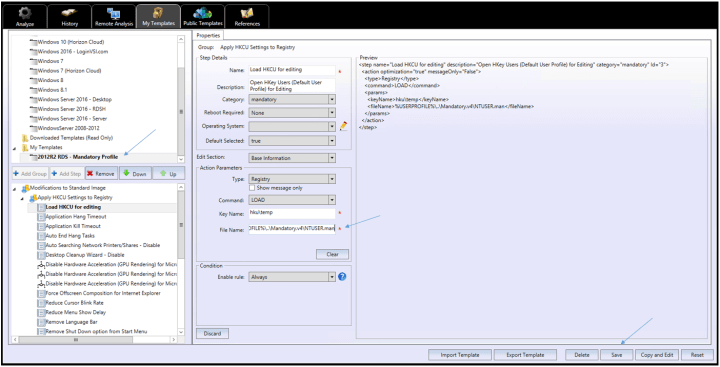

OptimizeWindows-04



Next, I analyze which recommended system optimizations to apply




Based on the recommendations from the optimization tool, I run “Optimize”.

OptimizeWindows-06





Finally I reboot the VM after optimizations are done.



Local Group Policies:

Open Local Group Policies MMC

OptimizeWindows08



I edit the following options as follows:

OptimizeWindows-07



SDELETE

From an administrative cmd-prompt I run “sdelete64 -z c:”

OptimizeWindows10

OptimizeWindows11



VDI-Cleanup

I first download the vdicleanup.bat and run this from an administrative cmd-prompt. This script basically takes care of all cleanups that needs to be done and shuts down the VM when it’s done, very nice!

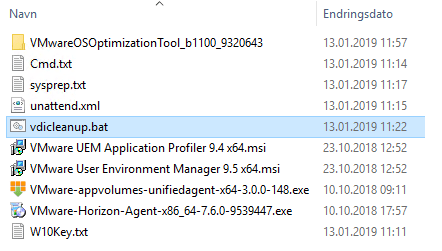

OptimizeWindows12

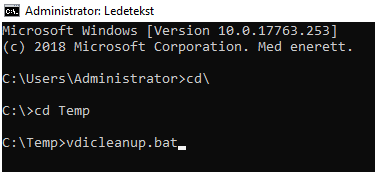

OptimizeWindows13

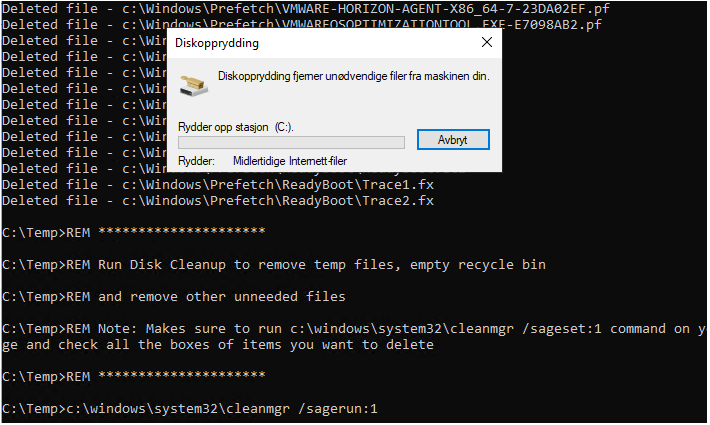

OptimizeWindows14



That concludes my session about how I optimized my Windows 2012R2 RDS template. My next logical step will be to prepare the template for use with my instant clone pool, covered here: VMware Horizon View Setup Template – Prepare for usage with Horizon View
