VMware Horizon View – Setup Server 2016 RDS Template – Create and customize the Virtual Machine

Welcome to my VMware Horizon View series. In this sub-session I will describe how I created and customized the Virtual Machine for my Server 2016 RDS template.

As I already have a very nice template in vSphere, I will use this. I start the “Deploy New VM from Template Wizard” in the VMware vSphere Web Client. I give my new template a Virtual Machine Name and place it in my Templates folder, Next

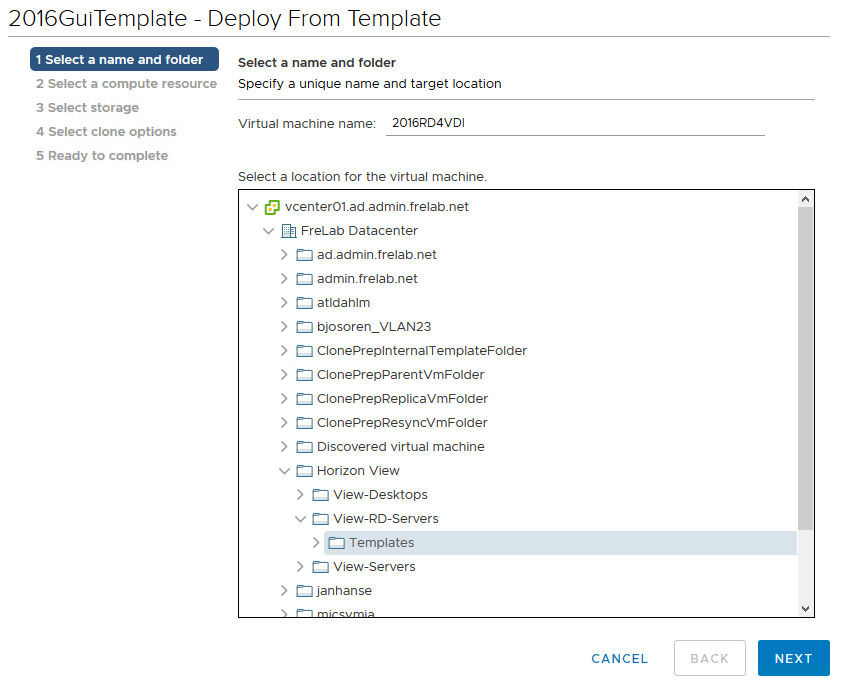

Create2016-rds-vm-01



I select my cluster for compute resource, Next

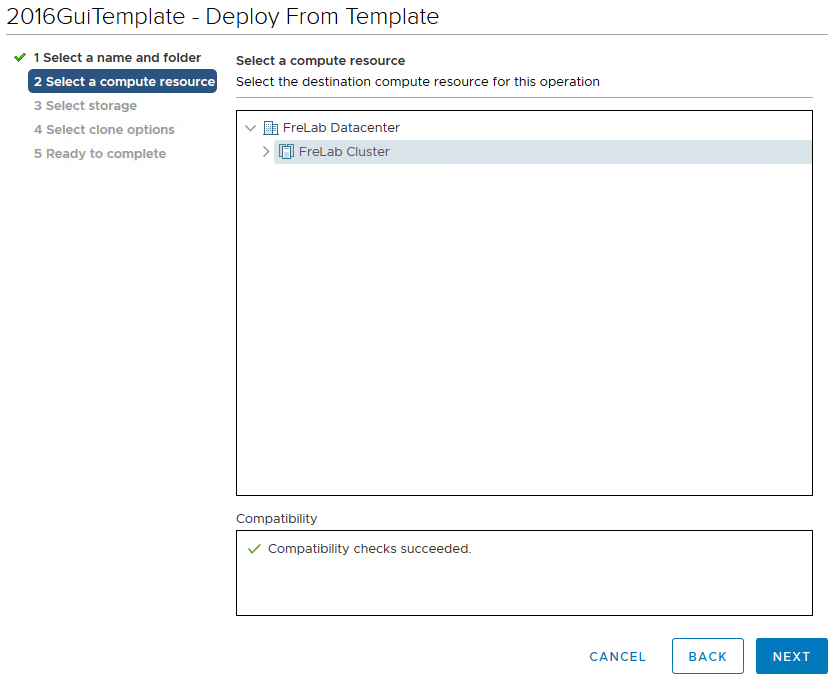

Create2016-rds-vm-02



I select my datastore-cluster for storage, Next

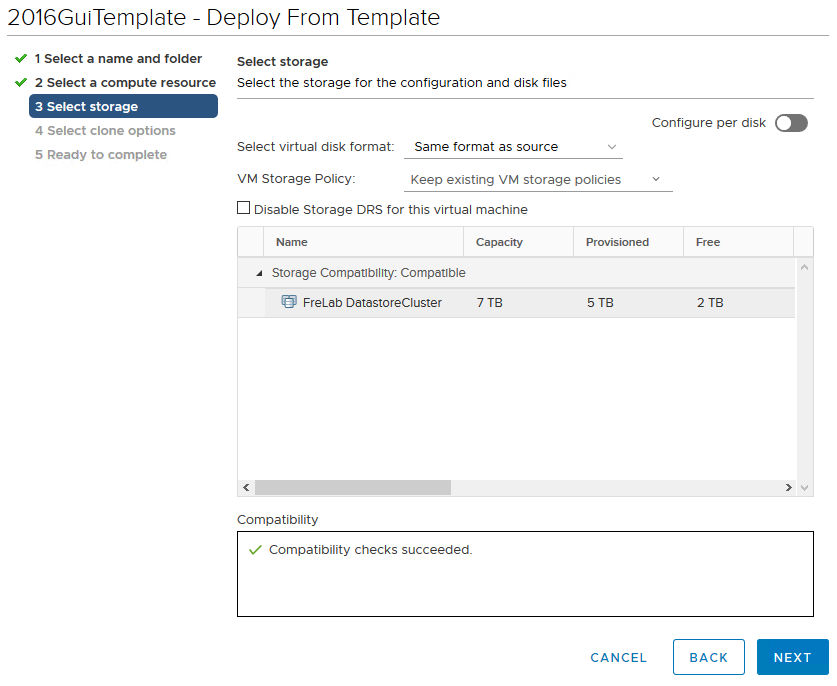

Create2016-rds-vm-03



I select “Customize this Virtual machine’s hardware”, Next

Create2016-rds-vm-04



I specify “Virtual Hardware Settings”:

  • 4 vCpu’s
  • 4 GB Memory
  • PortGroup for my vNic

As this is a LAB-setup, my virtual hardware are very low-key, but in a production environment I would do a decent evaluation of the RDS virtual hardware setup prior to setting up my template.

I click “Next” and “Finish” to start creation of my template-VM

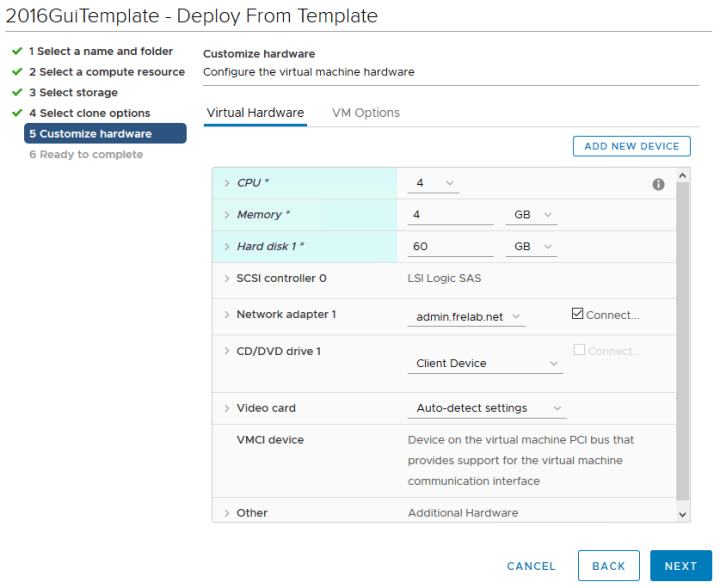

Create2016-rds-vm-05

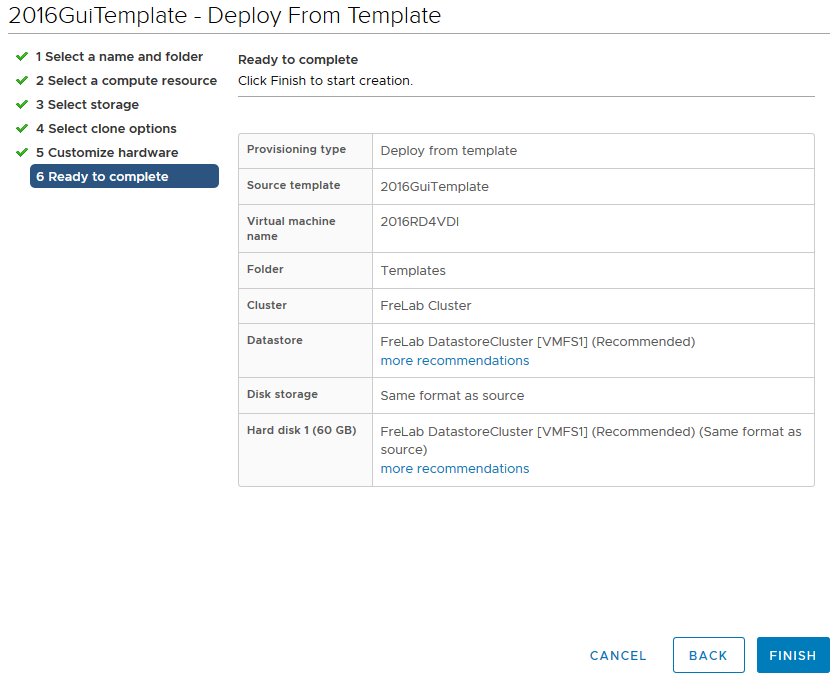

Create2016-rds-vm-06



That concludes my session about how I created and customized the Virtual Machine for my Server 2016 RDS Template. My next logical step will be to customize Windows, covered here: VMware Horizon View – Setup Server 2016 RDS Template – Customize Windows
