Welcome to my VMware Horizon series. In this sub-session I will describe how I customized Windows in my Server 2016 RDS template, prior to installing agents and applications.

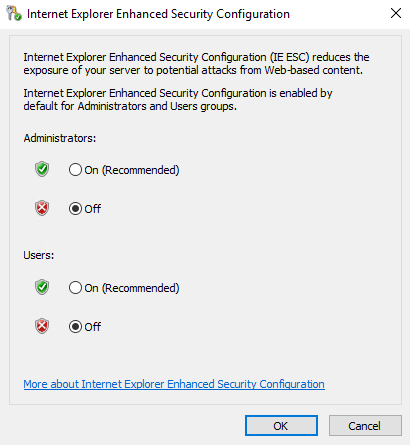

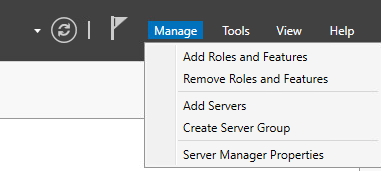

After successfully deploying a new Server 2016 vm in my previous session, I’m now ready to proceed with customizing the MS 2016 Server. The first thing I do with my template is to disable Server Manager startup automatically at logon and disable IE Enhanced Security.

CustomizeWindows-01


CustomizeWindows-03

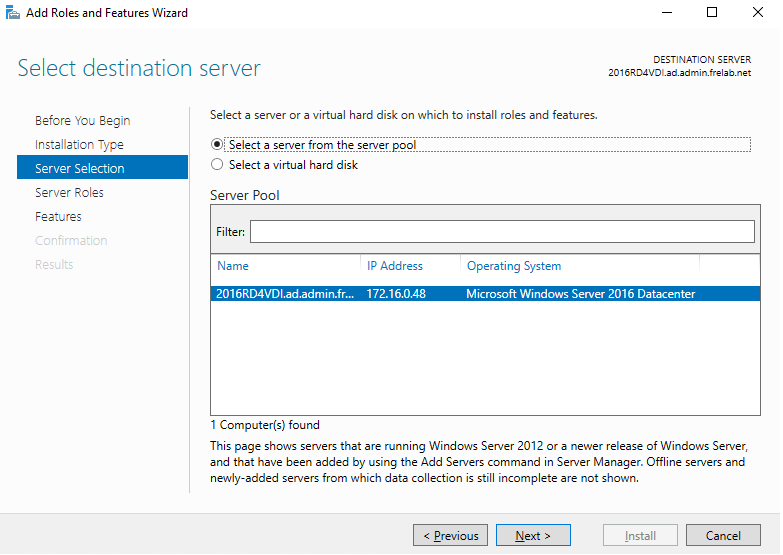

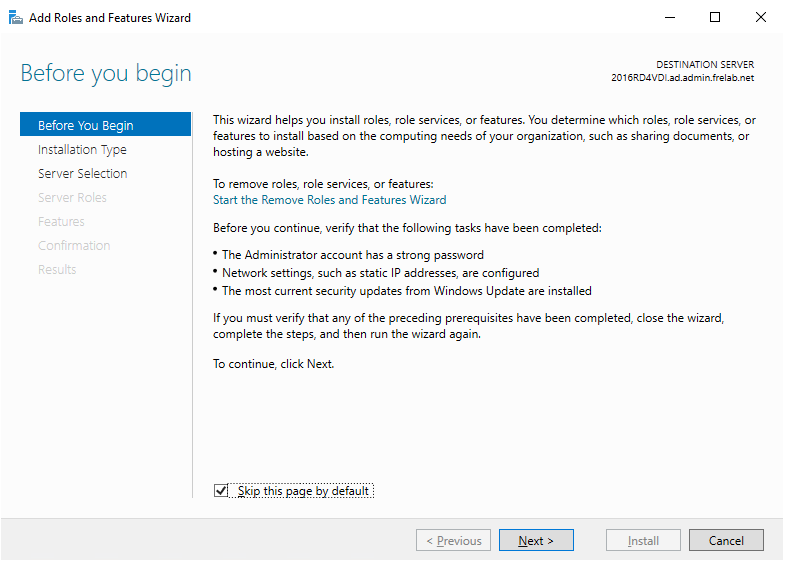

Next, I will add the Remote Desktop Session Host role. I start the “Add Roles and Features Wizard” in Server Manager, Next-Next-Next

CustomizeWindows-04

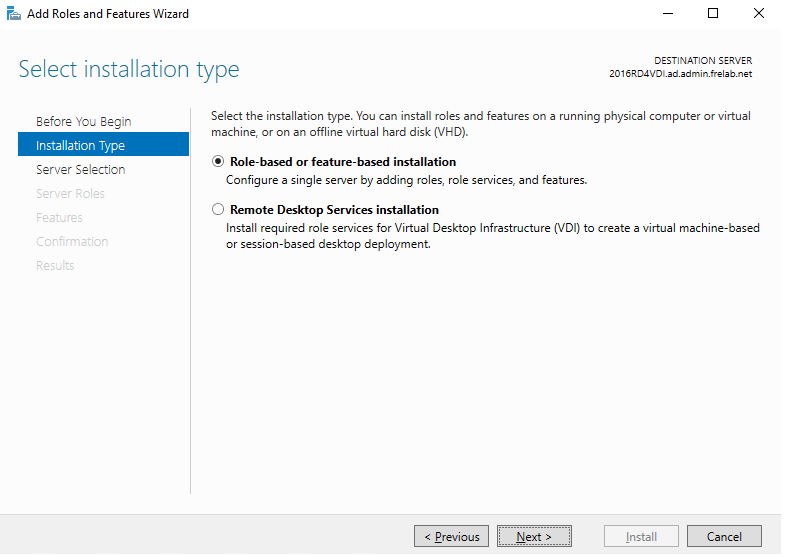

CustomizeWindows-05

CustomizeWindows-06

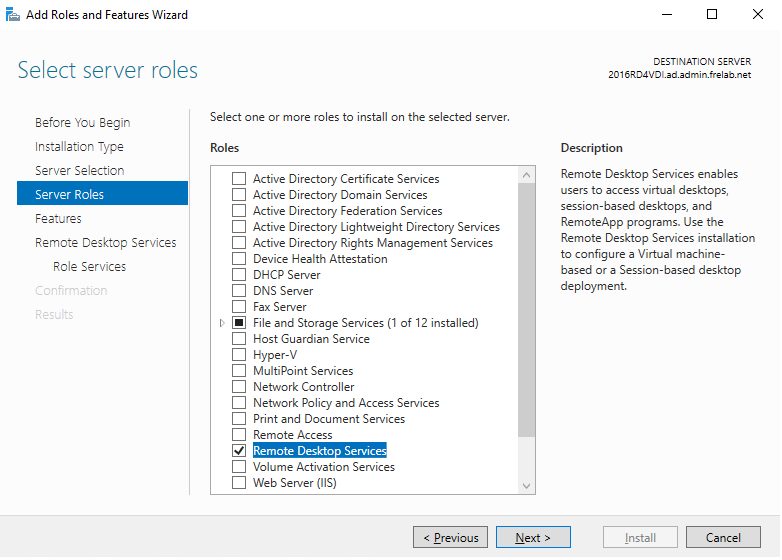

I select the Remote Desktop Services role, Next

CustomizeWindows-07

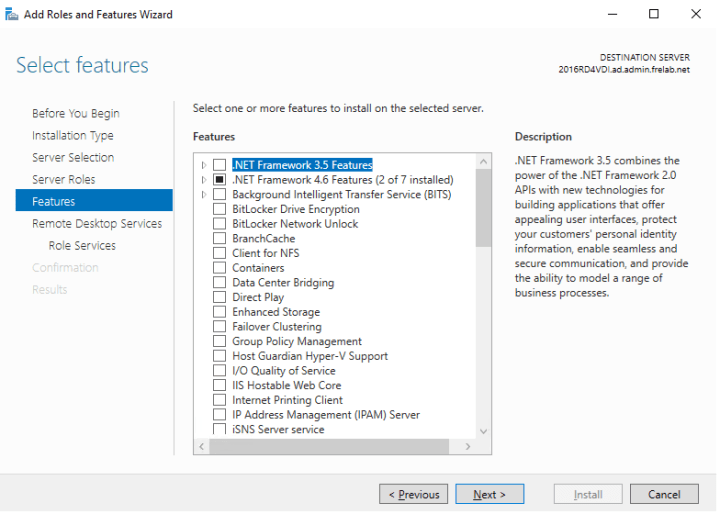

No features to add, Next

CustomizeWindows-08

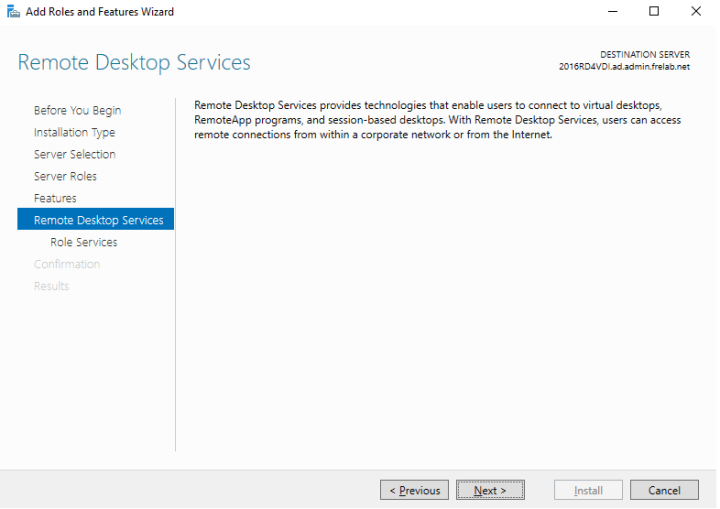

Next

CustomizeWindows-09

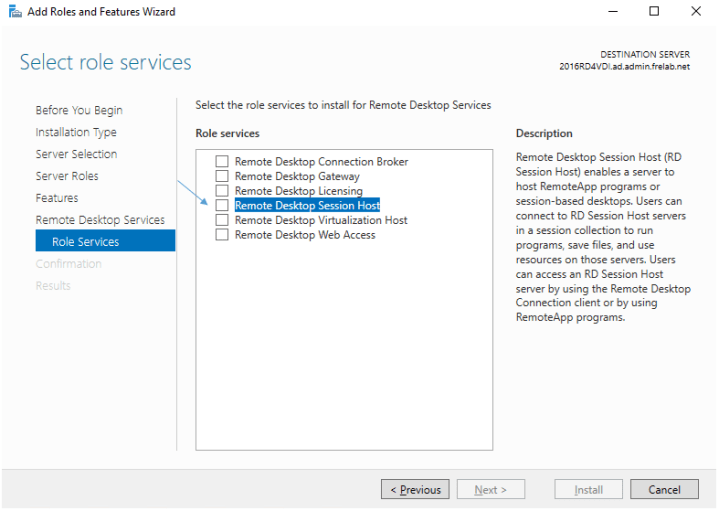

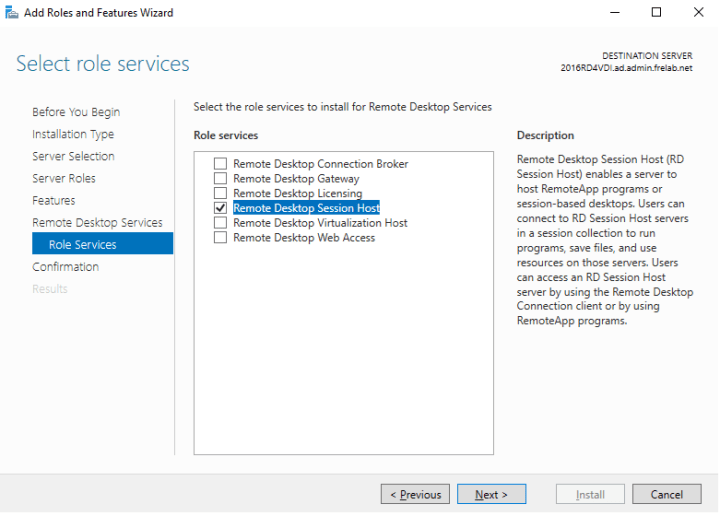

I select the Remote Desktop Session Host, Next

CustomizeWindows-10

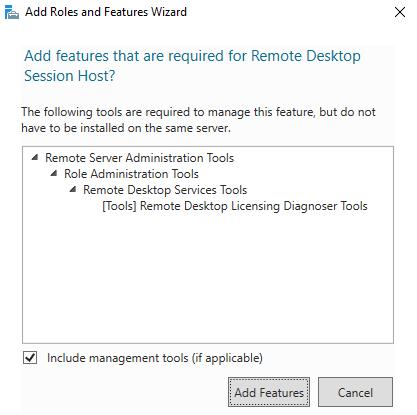

Add Features

CustomizeWindows-11

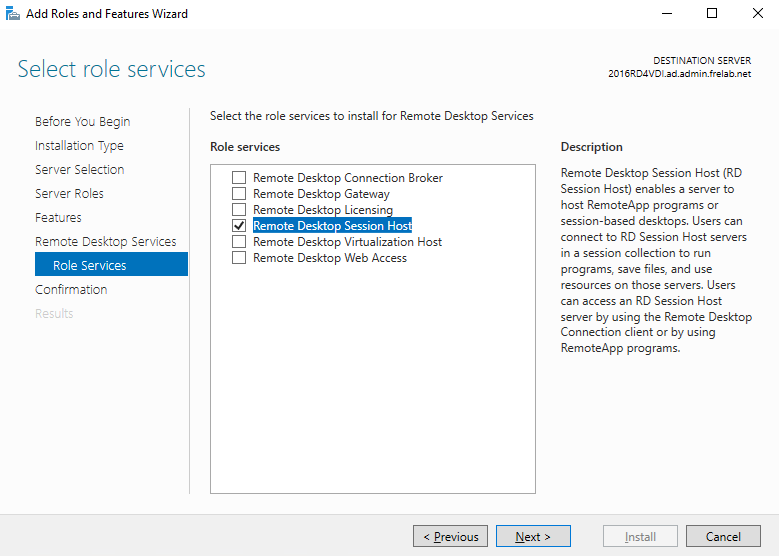

Next

CustomizeWindows-12

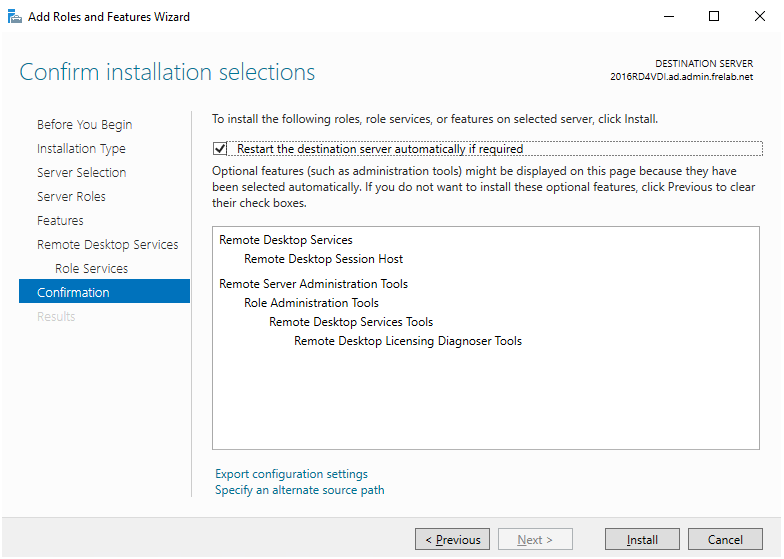

I select “Restart the destination…”, Install

CustomizeWindows-13



The server will now be restarted to complete the installation of roles and features.

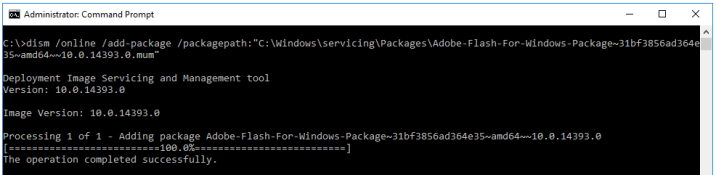

Once my Server 2016 RDS is restarted, I will run the command below to enable Adobe Flash Player to run on Windows Server 2016

dism /online /add-package /packagepath:”C:\Windows\servicing\Packages\Adobe-Flash-For-Windows-Package~31bf3856ad364e35~amd64~~10.0.14393.0.mum”

CustomizeWindows-14

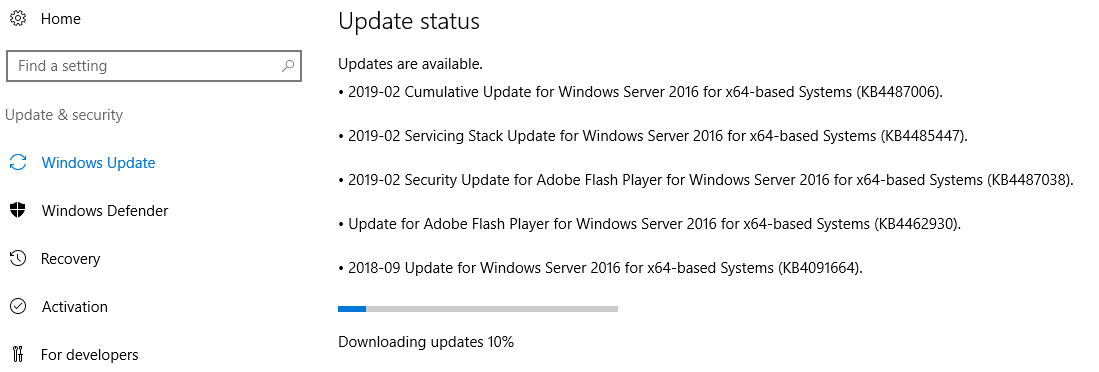

Next, I will update Windows before I proceed

CustomizeWindows-15

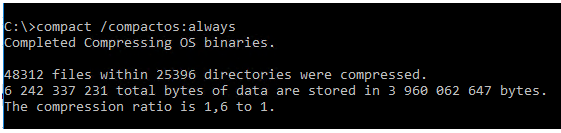

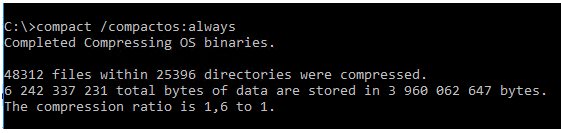

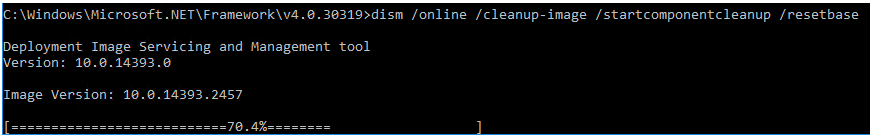

Once the template is updated and restarted, I run “NGEN, compactos and Dism”-commands to optimize and compress the template.

CustomizeWindows-16

CustomizeWindows-17




That concludes my session about how I customized Windows Server 2016 in my template. My next logical step will be to generalize Windows Server 2016, covered here: VMware Horizon – Setup Server 2016 RDS Template – Generalize Windows
