VMware Horizon View – Setup Server 2016 RDS Template – Optimize Windows

Welcome to my VMware Horizon View series. In this sub-session I will describe how I optimized my Server 2016 RDS template.

After I finished installing applications and agents in my previous session, I’m now ready to optimize the template using, among other, VMware OS Optimization Tool. This can be downloaded from: https://labs.vmware.com/flings/vmware-os-optimization-tool

I will also configure some local group-policies and do some optimization.



VMware OS Optimization Tool

When I start VMware OS Optimization Tools for the first time, I check for updates before I proceed. Updates are found under the Public Templates section:

OptimizeWindows-01

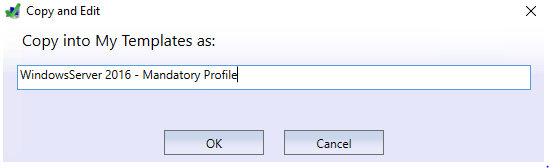

Next, I’ll make a copy of the template I’m going to use, WindowsServer 2016, click “Copy and Edit”, I give a meaningful name, OK

OptimizeWindows-02

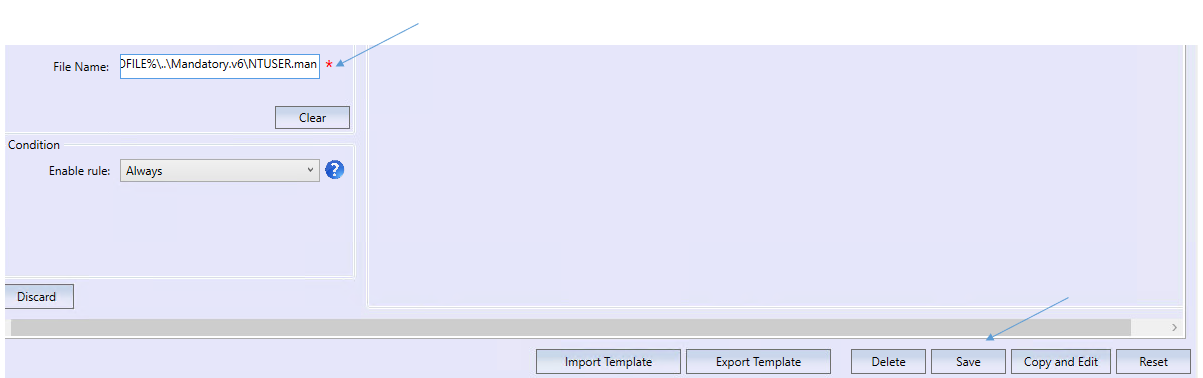

I select my new template and change %USERPROFILE%\..\Default User\NTUSER.DAT to %USERPROFILE%\..\MANDATORY.V6\NTUSER.MAN.

OptimizeWindows-03



Next, I analyze which recommended system optimizations to apply

OptimizeWindows-04

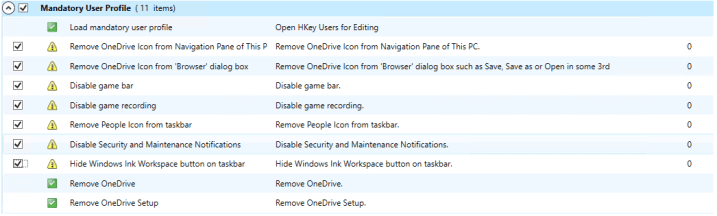

Based on the recommendations from the optimization tool, I run “Optimize”.

OptimizeWindows-05

Finally I reboot the VM after optimizations are done.



Local Group Policies:

Open Local Group Policies MMC

OptimizeWindows08



I edit the following options as follows:

OptimizeWindows-06



Disk Cleanup

I start cleanmgr.exe from an administrative cmd-prompt and cleanup up before I run SDelete below

OptimizeWindows-07

OptimizeWindows-08



SDELETE

From an administrative cmd-prompt I run “sdelete64 -z c:”

OptimizeWindows-09



Finally I run the following commands to finish up the template

OptimizeWindows-10

OptimizeWindows-11



That concludes my session about how I optimized my Windows 2016 Server RDS template. My next logical step will be to prepare the template for use with my instant clone pool, covered here: VMware Horizon View – Setup Server 2016 RDS Template – Prepare for deployment
