VMware Horizon – Setup RDS Farm

Release date: March 18th 2019

Welcome to my VMware Horizon series. In this session I will describe how I setup an RDS Farm based on the MS 2016 RDS Server template, which I created earlier. This farm will in my later sessions be used to create both a Desktop and an Application Pool.

In Horizon Administrator, select Farms from the menu on the left

Create2016RDSFarm-01



I will in this session create an Automated Farm, Next

Create2016RDSFarm-02

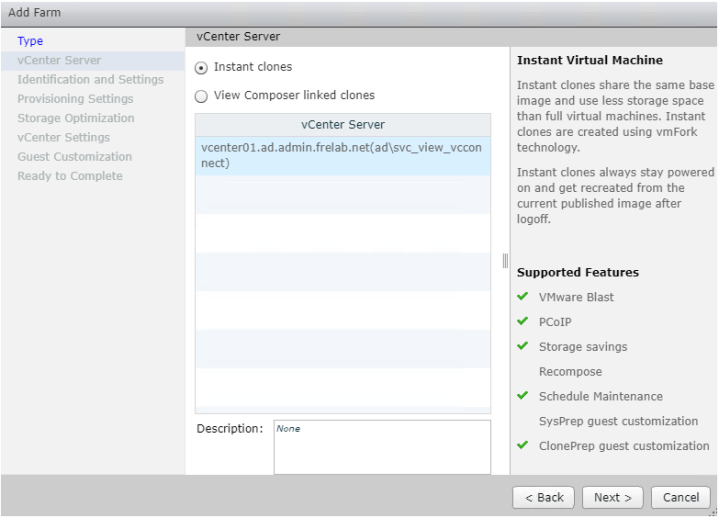

This farm will consist of Instant Clones, Next

Create2016RDSFarm-03

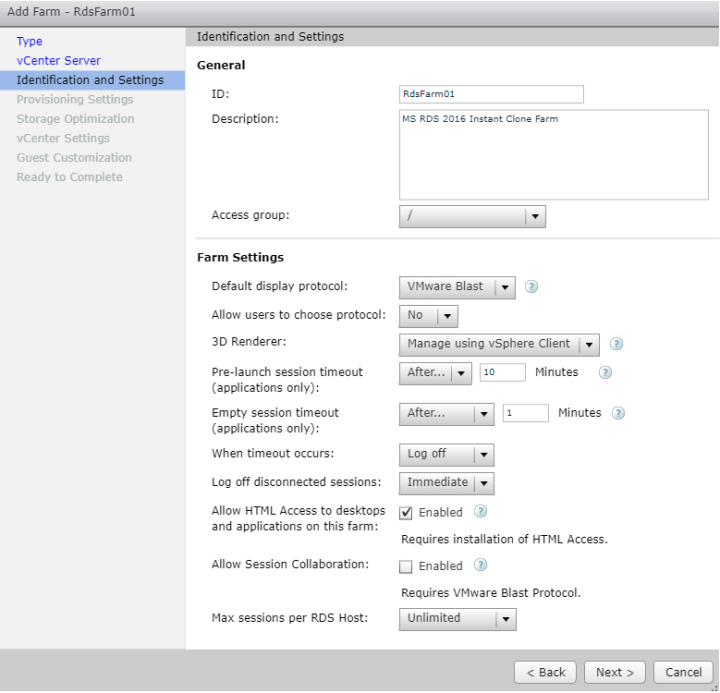

I give the farm an appropriate ID and description, adjust Farm Settings, Next

Create2016RDSFarm-04

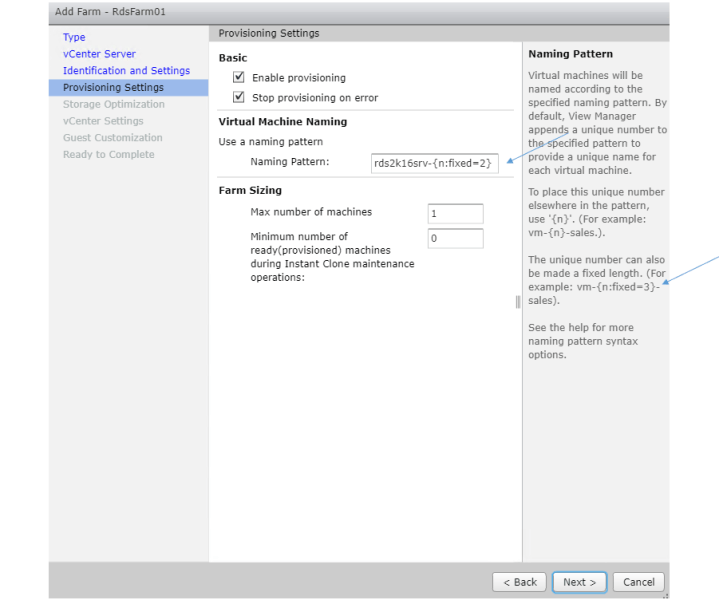

I fill in vm naming pattern and number of machines, Next

Create2016RDSFarm-05

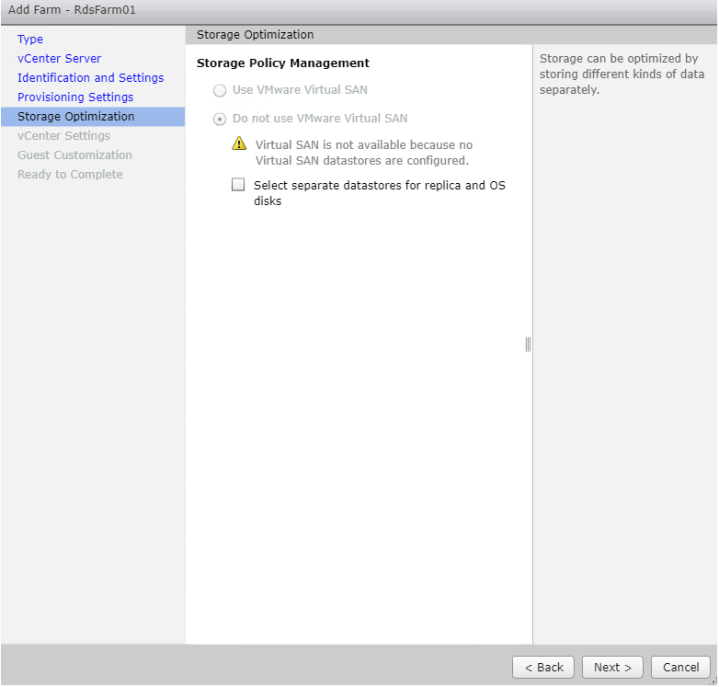

Next

Create2016RDSFarm-06

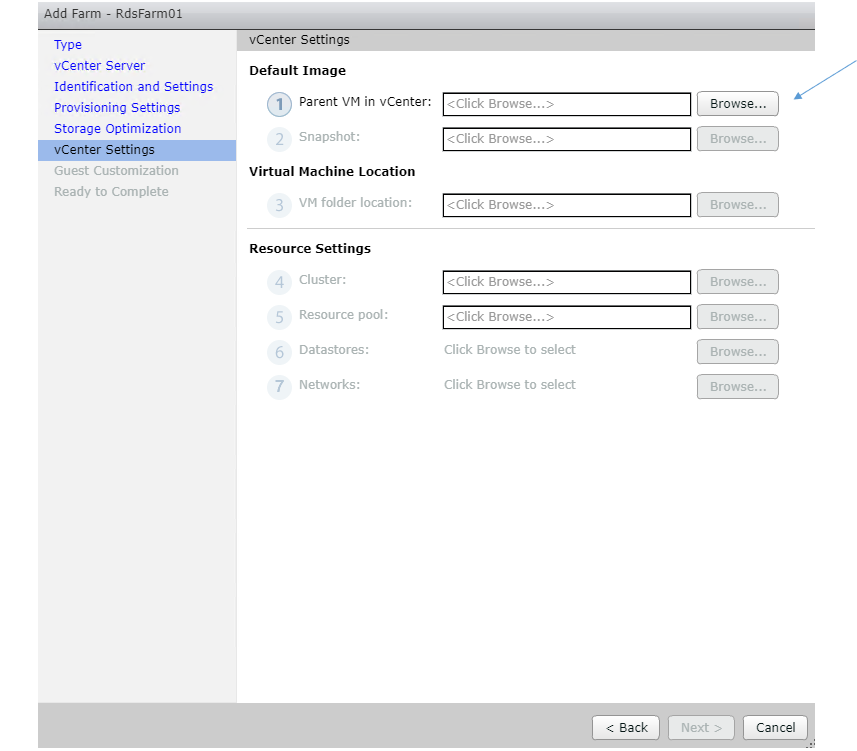

I add my vCenter settings….

Create2016RDSFarm-07

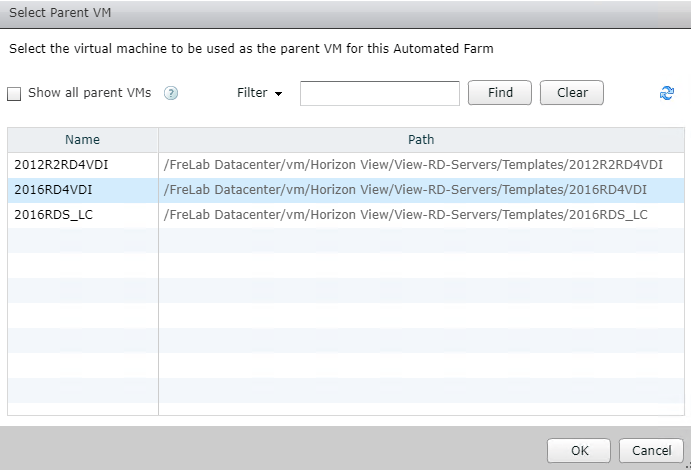

First I will choose my parent vm, 2016RD4VDI, OK

Create2016RDSFarm-08



I select the snapshot I made during template creation earlier, OK

Create2016RDSFarm-09



I choose the View-RD-Servers folder in vSphere, OK

Create2016RDSFarm-10

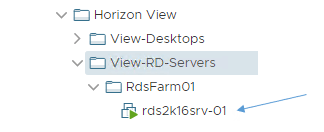

After the Farm and vm’s are created, Horizon will create a folder under View-RD-Servers with the same name as the Pool-ID

Create2016RDSFarm-11



Next i choose my FreLab Cluster to run my vm’s on, OK

Create2016RDSFarm-12



I only have one Resource Pool, OK

Create2016RDSFarm-13

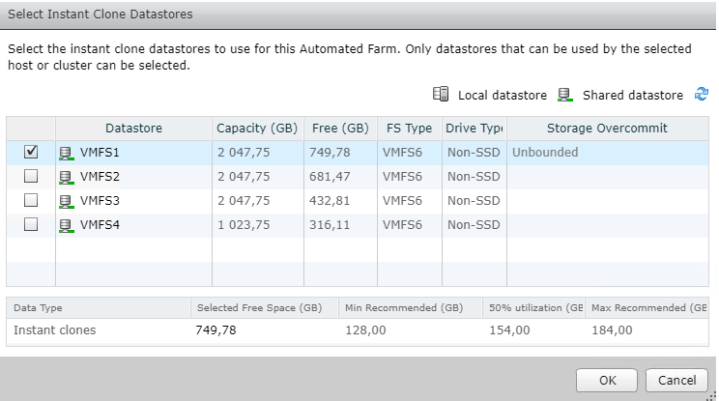

This farm will be stored on my VMFS1-Datastore, OK

Create2016RDSFarm-14



When I have made all my decisions about vCenter and Resource settings, Next

Create2016RDSFarm-15



Next I will browse my MS Active Directory and select the correct OU for placing the computer accounts

Create2016RDSFarm-16

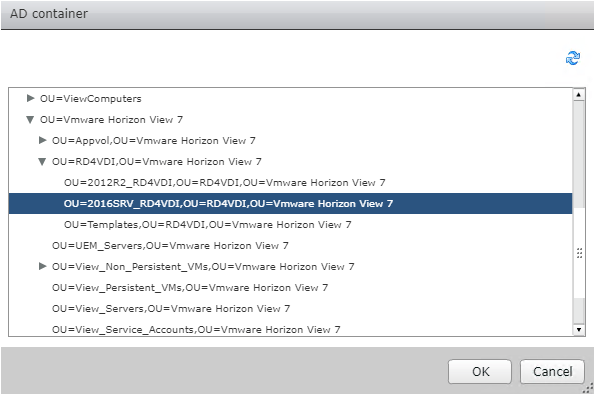

I select the correct OU for my RDS-Server’s computer-accounts, OK

Create2016RDSFarm-17

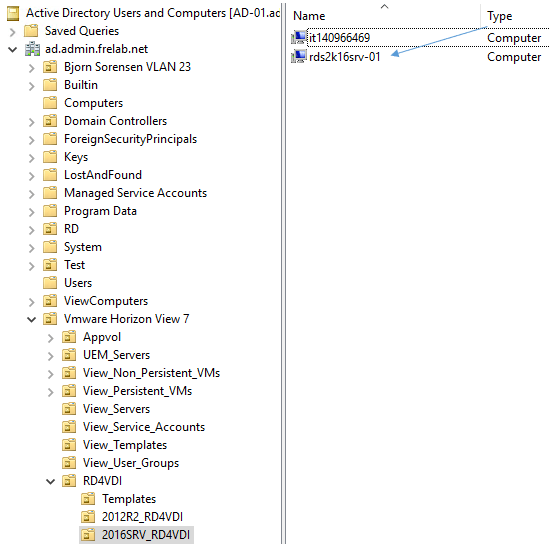

When the Farm has deployed the RDS-server’s, it automatically creates the computer-account in the correct OU

Create2016RDSFarm-18



I will Allow reuse of pre-existing computer accounts, Next

Create2016RDSFarm-19

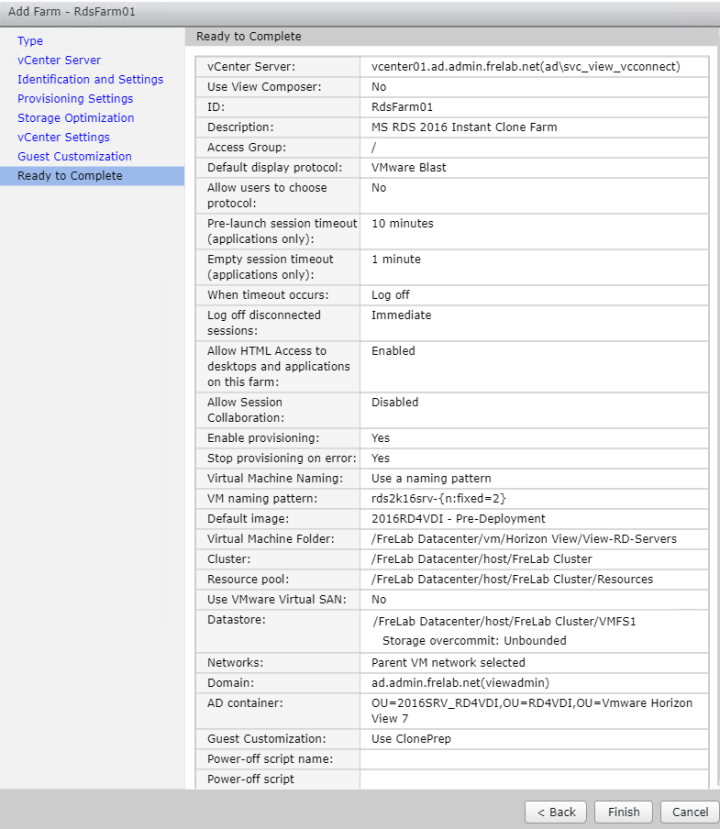

I click finish to deploy the new RDS-Farm

Create2016RDSFarm-20



I can now see my new RDS Farm is being published in Horizon

Create2016RDSFarm-21

Create2016RDSFarm-22



Once the farm is created and published, I can move forward and deploy desktop or applications pools from this RDS Farm:

VMware Horizon – Setup RDS Desktop Pool

VMware Horizon – Setup RDS Application Pool
