VMware Horizon – Upgrade Horizon Connection Servers to v. 7.8

Welcome to my VMware Horizon series. In this section I will describe how I upgraded my VMware Horizon Connection Servers to v. 7.8

Caveat: After having experienced problems during upgrade of one of my connection servers, I restored it from a snapshot. That caused massive problems with replication. So, although I recommend creating a snapshot prior to upgrading the connection-servers, be cautious when restoring snapshots. This is a known problem and has been nicely discussed at length by David Ball here: “LDAP is not ready” when upgrading VMware Horizon Connection Servers The resolution to my replication-problems after restoring from snapshot, was to revert to snapshots on both connections servers and start upgrade from scratch.

Note to my self: Prior to upgrading the connection servers, be sure to verify replication status and event-logs…



Before I start upgrading my Connection servers, I verify that I have a valid backup and shut down one server at a time and take a snapshot

UpgradeHorizonConnectionServersTo78-01

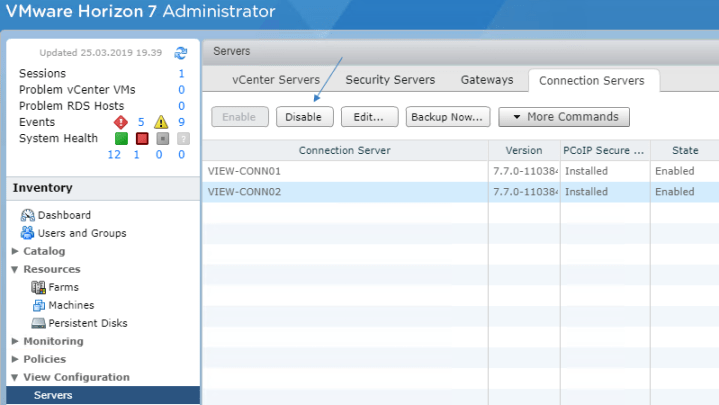

In Horizon Administrator, I first disable the connection server I want to upgrade.

UpgradeHorizonConnectionServersTo78-02

UpgradeHorizonConnectionServersTo78-03



The State now changes to Disabled

UpgradeHorizonConnectionServersTo78-04



Next, I login on the server and start the Installation Wizard

UpgradeHorizonConnectionServersTo78-05

UpgradeHorizonConnectionServersTo78-06



I accept the terms, Next

UpgradeHorizonConnectionServersTo78-07



The warning that now pops up is quite important. Although I click OK at this stage, I will revisit this at the bottom of this section

UpgradeHorizonConnectionServersTo78-08



I confirm the installation path, Install

UpgradeHorizonConnectionServersTo78-09

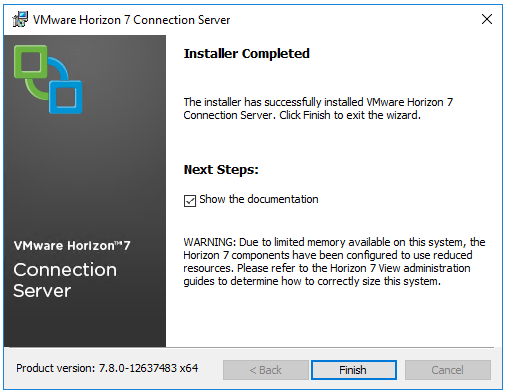

Once the installer finishes, click Finish

UpgradeHorizonConnectionServersTo78-10



At this point I reboot the connection server. Once server is restarted, I verify the version in Horizon Administrator and enable the upgraded connection server.

UpgradeHorizonConnectionServersTo78-11



Next, I disable the other connection server and perform the upgrade-procedure above on this server too. After the upgrade is finished, both servers are v. 7.8.0-12637483.

UpgradeHorizonConnectionServersTo78-12



Lastly, I verify that replication between the connection servers are running without problems and check the event log for errors. Finally I delete the snapshots I took before starting the upgrade.

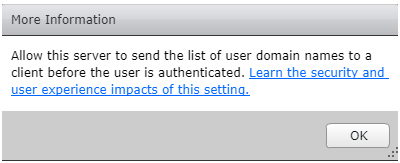

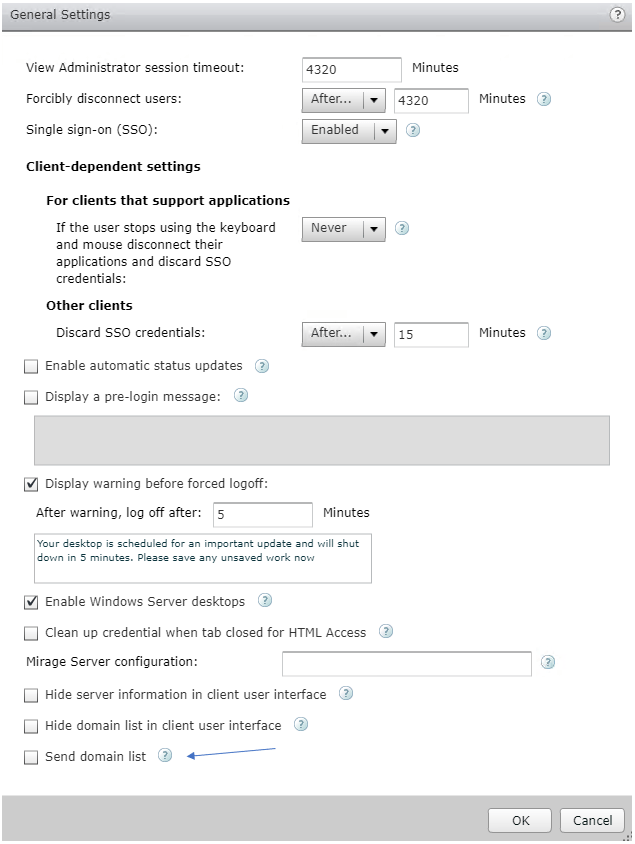

As mentioned above, with this new release, VMware has added the possibility to hide the domain list from the clients. This out of a security perspective. In a multi-domain environment setting this setting could cause some issues. In order to togge this setting, I open General Settings and check my preferred setting. This will ensure my clients see the domain list.

UpgradeHorizonConnectionServersTo78-13

UpgradeHorizonConnectionServersTo78-14



The domain is now visible in the client when I test.

UpgradeHorizonConnectionServersTo78-15



This concludes my connections server-upgrade, I can now proceed with upgrading my GPO Templates, covered here: VMware Horizon – Upgrade Horizon View GPO Bundle to v. 7.8
