VMware UEM – Prepare File Server DFS

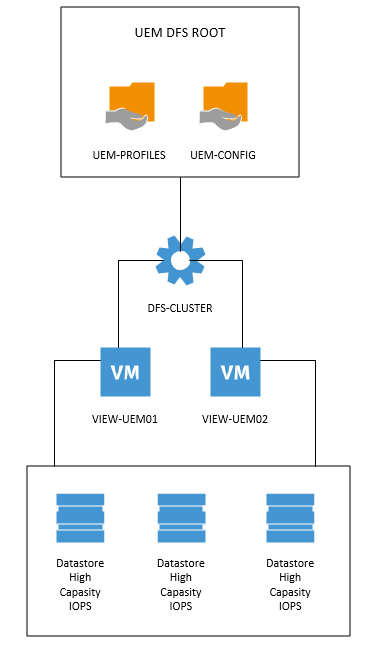

In order to set up VMware UEM, we will need to create file-shares to host UEM Profiles and Config. For this I will deploy two file-servers with DFS Replication. In vSphere I will create an Anti-Affinity rule to make sure that these servers are never on the same ESXI-server in case of hardware failure. This setup will ensure fault tolerance and availability. My design, which I did in the planning phase, will be as follows:

uem-dfs-design

In sum, this setup will be done as follows:

  1. Deploy two file-servers. I won’t document this here, as it is a straight-forward procedure that I assume my audience for this topic are comfortable with.
  2. Install DFS-Roles on both file-servers
  3. Create C:\UEM folder on both servers
  4. Configure DFS Namespace
  5. Configure Replication Group
  6. Publish Replicated folder in Namespace
  7. Test replication



Install DFS-Roles on both file-servers

I log into the servers and add the roles: DFS Namespaces, DFS Replication, and File Server Resource Manager

uem-dfs-01

uem-dfs-02

uem-dfs-03

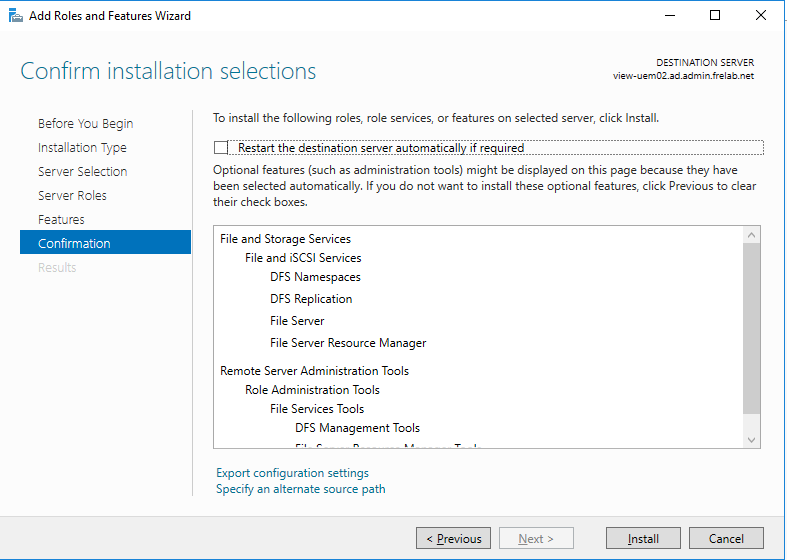

I choose DFS Namespaces, DFS Replication, and File Server Resource Manager

uem-dfs-04

uem-dfs-05

uem-dfs-06

uem-dfs-07



Configure DFS Namespace

Now that the necessary roles and features are installed on both of my file-servers I can proceed with configuring the DFS. In DFS Management I click “New Namespace”

uem-dfs-08

I choose which file-server will host the Namespace, in my case this will be VIEW-UEM01

uem-dfs-09

I give my namespace the “incredible innovative” name “DFS”

uem-dfs-10

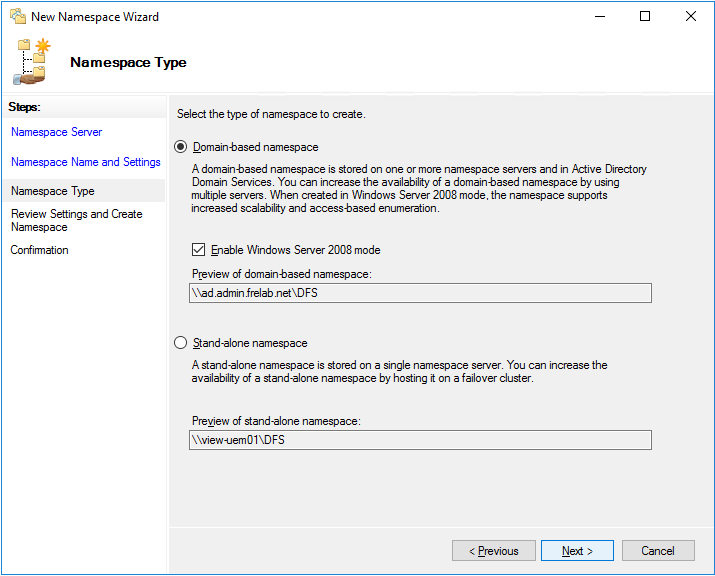

uem-dfs-11

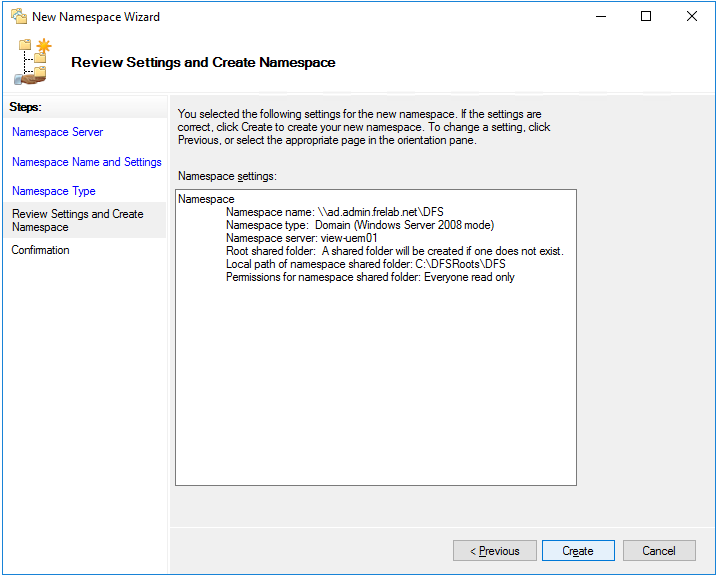

uem-dfs-12

uem-dfs-13



Configure Replication Group

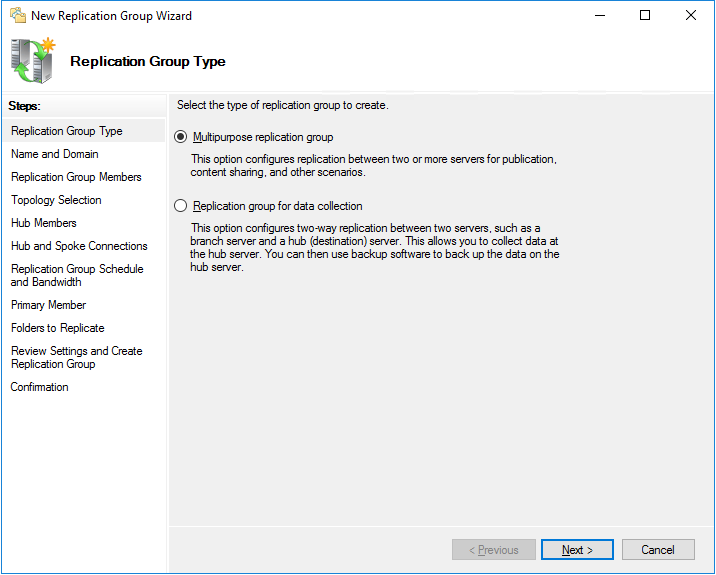

uem-dfs-14

I type in a descriptive name for my replication group

uem-dfs-15

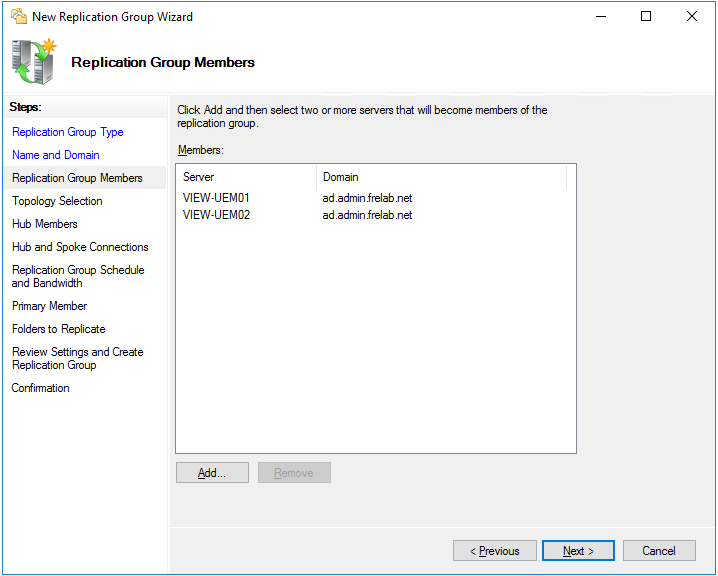

I add in my file servers as members in my replication group.

uem-dfs-16

I choose my topology, in this case, Full Mesh. I know that this isn’t supported ref. VMware’s UEM – Supported configurations (2137300), but as this is my LAB, I will go with this config.

uem-dfs-17

uem-dfs-18

Next I choose my primary member

uem-dfs-19

Next I choose the folder C:\UEM which I have created on both file-servers.

uem-dfs-20

uem-dfs-21

uem-dfs-22

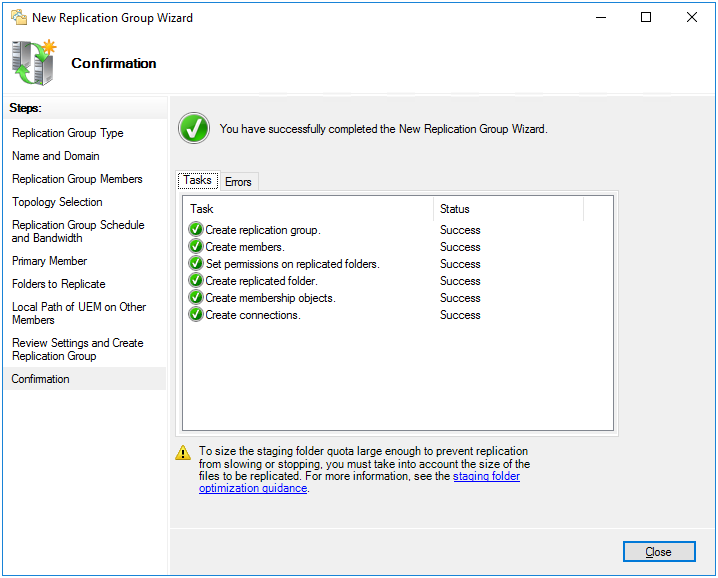

uem-dfs-23

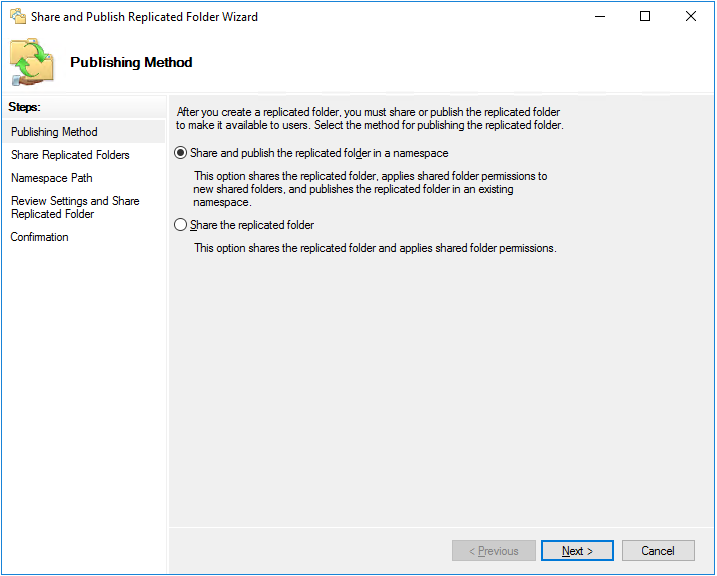

Publish Replicated folder in Namespace

uem-dfs-24

uem-dfs-25

I add in my file servers

uem-dfs-26

I publish it to the namespace with the foldername UEM

uem-dfs-27

uem-dfs-28

uem-dfs-29

My replicated folder “UEM”, is now published to the namespace

uem-dfs-30



Test replication

I will now test the replication, I create at txt-file on the DFS Share first

uem-dfs-31

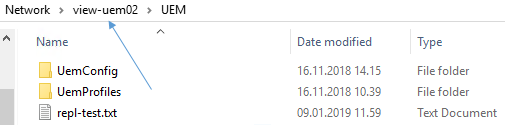

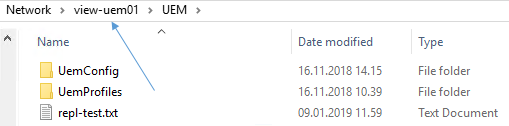

When I check the folders directly on the file-servers, I can verify that the txt has been replicated to all file-servers

uem-dfs-32

uem-dfs-33



Now I can proceed with setting up share and permissions for UemConfig and UemProfiles, covered here: VMware UEM Prepare File Shares and Permissions
