VMware DEM – Prepare GPO/Scripts

Release date: January 10th 2019

Welcome to my VMware Dynamic Environment Manager series. In this session I will describe how I prepared the GPO and scripts needed for my DEM setup.

First i log into one of my Domain Controllers and browse to the location where I downloaded the installation media. Here we will find the folder “Administrative Templates (ADMX)”

uem_gpo_scripts01



I copy these files to my PolicyDefinitions-folder under SYSVOL

uem_gpo_scripts02



Next I create a GPO and configure the setting as follows:

User Configuration – Policies – Administrative Templates – VMware DEM – FlexEngine – Flex Config Files: \\ad.admin.frelab.net\dfs\uem\UemConfig\General

uem_gpo_scripts03



User Configuration – Policies – Administrative Templates – VMware DEM – FlexEngine – Profile Archive: \\ad.admin.frelab.net\dfs\UEM\UemProfiles\%username%\archives

uem_gpo_scripts04



User Configuration – Policies – Administrative Templates – VMware DEM – FlexEngine – Profile Archive Backups: \\ad.admin.frelab.net\dfs\UEM\UemProfiles\%username%\backups

uem_gpo_scripts05



User Configuration – Policies – Administrative Templates – VMware DEM – FlexEngine – FlexEngine Logging: \\ad.admin.frelab.net\dfs\UEM\UemProfiles\%username%\logs

uem_gpo_scripts06



User Configuration – Policies – Administrative Templates – VMware DEM – FlexEngine – Run FlexEngine as Group Policy Extension: Enabled

uem_gpo_scripts07

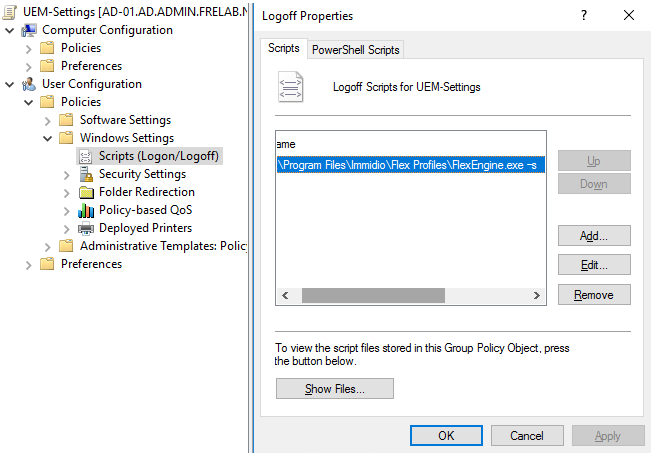

Finally, I configure the UEM FlexEngine logout command to run from a logout script. This way, the personal settings for the users are exported at logout.

User Configuration – Policies – Windows Settings – Scripts (Logon/Logoff) – Logoff

uem_gpo_scripts08



As a best practice, I also set the following GPO setting to enabled: “Computer Configuration > Administrative Templates > System > Logon > Always Wait for the network at computer startup and logon”

uem_gpo_scripts09



This completes my preparations and I can now proceed with the next logical step: VMware DEM Management Console Install
