VMware vRealize Operations Manager – Install

Welcome to my vRealize Operations Manager series, how I setup “vRops” in my LAB. In this session I will describe how I did the installation-phase.



After finishing the process of planning and preparing for installation of VMware vRealize Operations Manager, I’m now ready for installing.

In vCenter, I have prepared a Virtual Machine Folder called vRops. Here I right-click, choose “Deploy OVF Template.

vrops_install-01



I browse and select the ova-file I downloaded during preparations for this installation.

vrops_install-02



I punch in the Virtual Machine Name I choose during planning.

vrops_install-03



The default Cluster location is as nice a compute resource as any

vrops_install-04

vrops_install-05

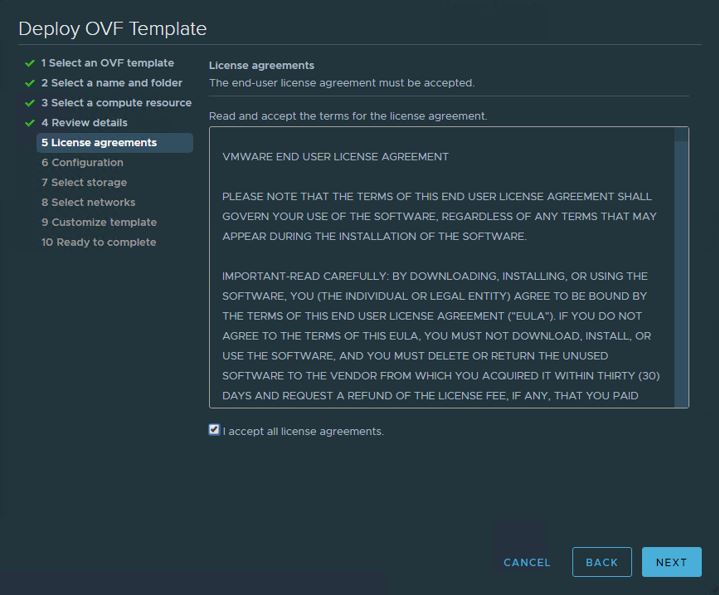

vrops_install-06



As my Lab isn’t very large, the Small Deployment Configuration will suffice nicely, could also have chosen Extra Small here. For more info about sizing see:¬†vRealize Operations Manager 6.7 Sizing Guidelines

vrops_install-07



I select Thin Provisioning and a suitable storage location

vrops_install-08



The Destination Network I chose during planning is selected

vrops_install-09



I finally customize the template with ip-adressing and domain-info from the planning/preparing phase.

vrops_install-10

vrops_install-11



Finally, ready to complete the installation phase.

vrops_install-12



Once the appliance is deployed, I can power it up and move on to the configuration-phase, described in my next post: VMware vRealize Operations Manager Configure

vrops_install-13



Recommended reading:

VMware vRealize Operations Manager vApp Deployment Guide

vRealize Operations Manager 6.7 Release Notes

vRealize Operations Manager Best Practices



VMware vRealize Operations Manager

Disclaimer: Every tips/tricks/posting I have published here, is tried and tested in different it-solutions. It is not guaranteed to work everywhere, but is meant as a tip for other users out there. Remember, Google is your friend and don’t be afraid to steal with pride! Feel free to comment below as needed.
