Release date: February 21st 2021, Updated February 3rd 2023
Welcome to my Dell Wyse Management Studio section. In this sub-section I will describe how configured the necessary DHCP Options. These are described in the documentation here: Dell Wyse Management Suite Version 4 Administrator’s Guide
DHCP Predefined Options:
| Name | Data Type | Code | Description | Value |
|---|---|---|---|---|
| VMS | String | 165 | VMS_Server | wyse-01.ad.admin.frelab.net |
| MQTT | String | 166 | MQTT_Server | wyse-01.ad.admin.frelab.net |
| CA Validation | String | 167 | CA Validation | FALSE |
| Group Token | String | 199 | Group Token | defa-8A2Ui@k< |

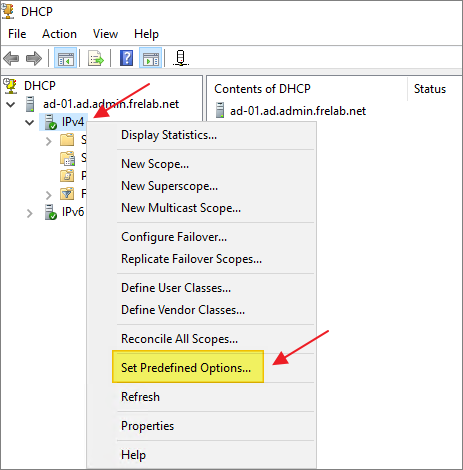

I launch the DHCP Administrator Snap-in, right-click IPv4 and select “Set Predefined Options…

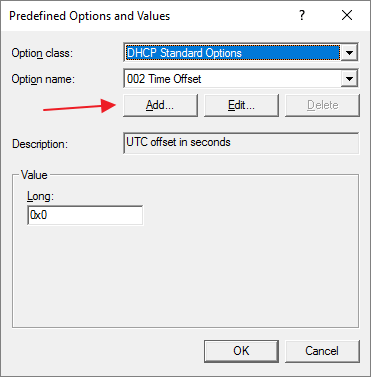

Add…

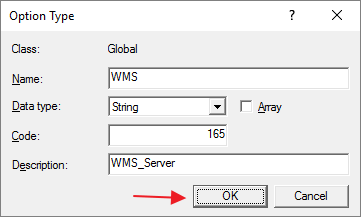

To create the 165 Wyse Management Suite server URL option, I enter the Name, Data type, Code and Description, OK…

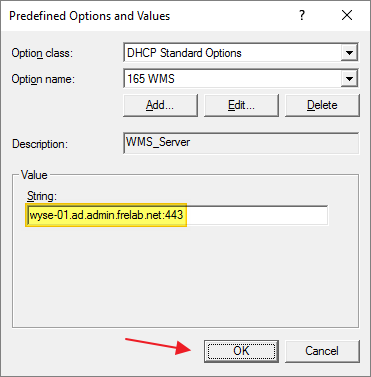

I enter the FQDN of my WMS server as String-data, OK…

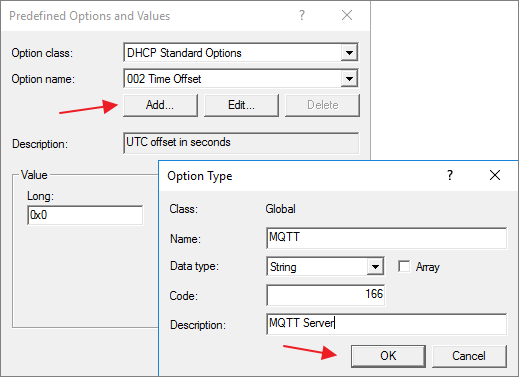

To create the 166 MQTT server URL option, I click Add again and enter the Name, Data type, Code and Description, OK…

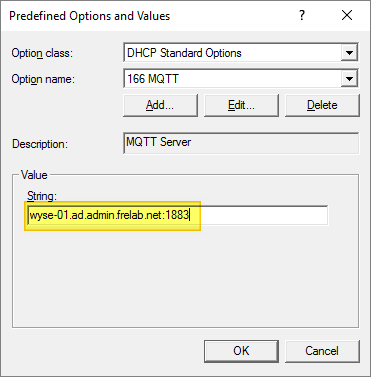

I enter the FQDN of my WMS server as String-data and make sure to append the correct port, 1883, OK…

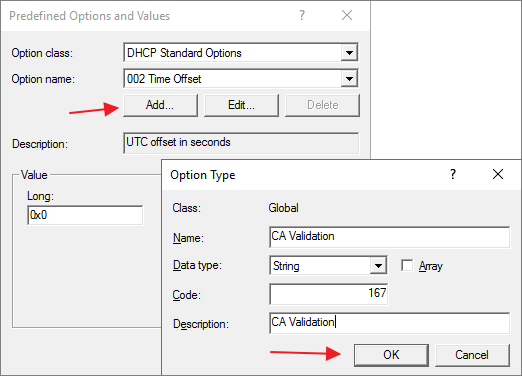

To create the 167 Wyse Management Suite CA Validation option, I click Add once more and enter the Name, Data type, Code and Description, OK…

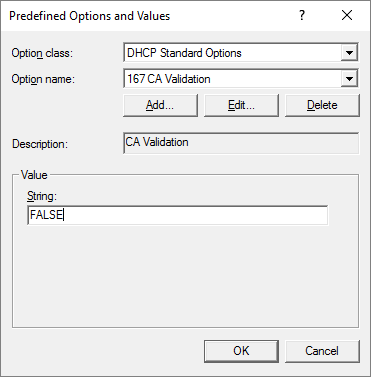

I enter the String Value “FALSE”, OK…

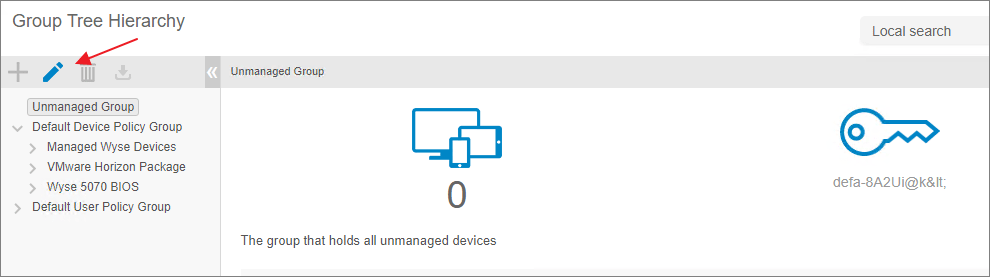

Before I can create the 199 Wyse Management Suite Group Token option, I need to login to the WMS server and copy this. I click the pencil-icon to edit the Unmanaged Group as this is the group I want my devices to end up in when first connecting to the WMS server.

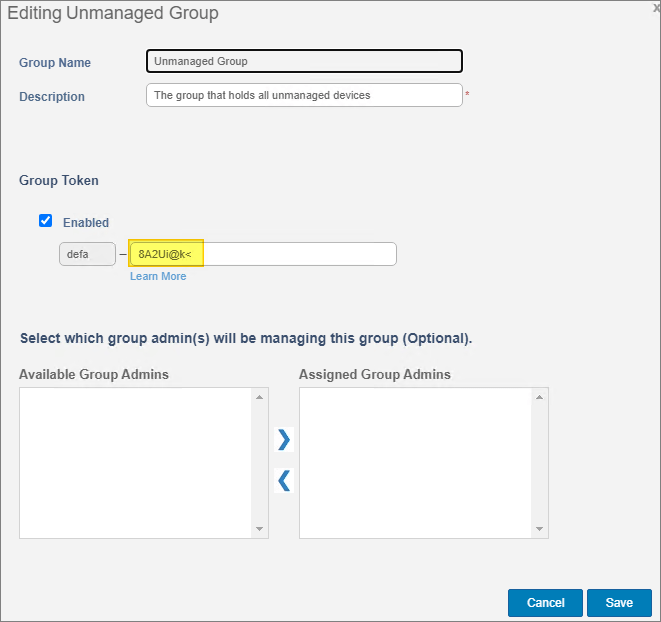

I copy the Group Token value

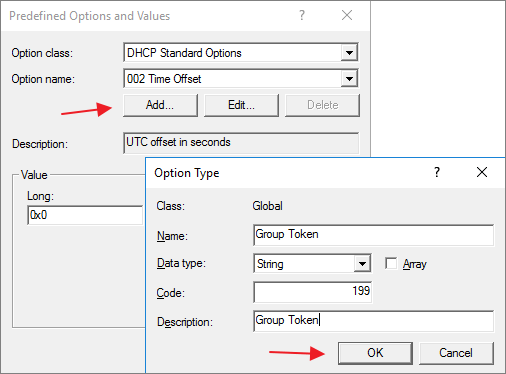

Back in the DHCP Administrator Snap-In, I click Add one final time and enter the Name, Data type, Code and Description, OK…

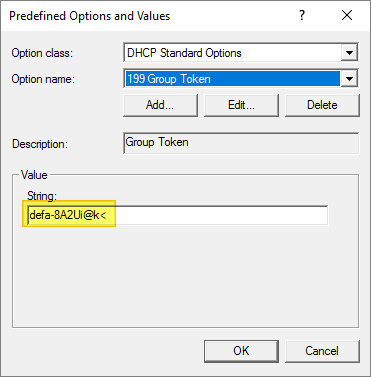

I enter the Group Token value I copied in the step above with the defa-prefix, OK…
This concludes the configuration of the necessary DHCP Options. The next logical step for me is to configure DNS settings, this I have documented here: Dell WMS – DNS setup
