VMware Horizon – Replica Server Install

Welcome to my VMware Horizon series. In this session I will describe how I installed my first Replica server. The main reason for having multiple Connection-servers are load balancing and high availability. This replica-setup is based on Horizon View 7.6. I have, after I created this session, upgraded the Connection servers to v. 7.8, covered here: VMware Horizon – Upgrade Horizon Connection Servers to v. 7.8

Prior to installing the replica server, we need to review the pre-requisites layed out by VMware here:

https://docs.vmware.com/en/VMware-Horizon-7/7.6/horizon-installation/GUID-E1B927CD-20A1-47B5-B613-BB9F1A4B58CB.html

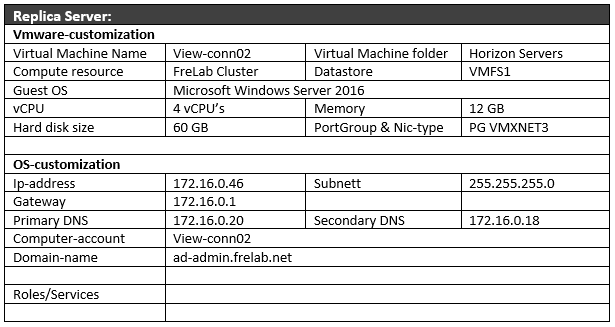

I will use my word-template which I filled in during preparations, when doing this task.

prep



I deploy my new virtual machine with the OS of my choice, this VMware Horizon View 7.6 Replica server can be setup on:

I will be using Microsoft Windows Server 2016 in this Lab.



I customize the hardware accordingly to VMware’s Hardware requirements:

Replica_srv-00



I give the server a meaningful computername, in this Lab it will be view-conn02, and join it to the domain.



Now we come to the actual Replica Server setup

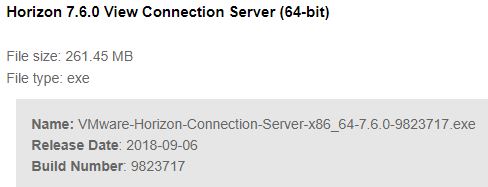

Download Vmware Horizon 7.6.0 Connection Server

sw-reqs01



Start the “VMware-Horizon-Connection-Server-x86_64-7.6.0-9823717.exe”

Run through the installation as follows:

When the Installation wizard starts, Next

conn-setup01



Accept the terms, Next…

conn-setup02



Default destination folder is a good a location as any, Next…

conn-setup03

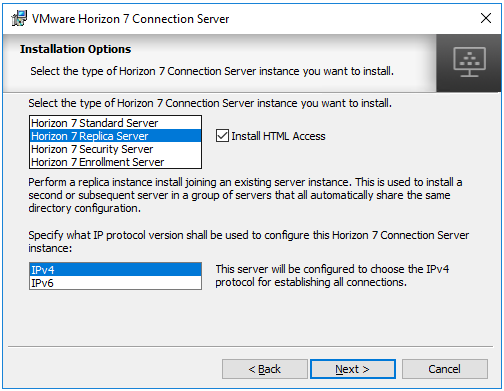

This Connection server will be setup as Replica Server, Next…

Replica_srv-05



I enter the fqdn of the connection server to replicate, Next…

Replica_srv-06



I like to let the firewall, in this Lab I use Windows Defender firewall, be enabled on my Windows Servers, and select “Configure Windows Firewall Automatically”, Next…

conn-setup06

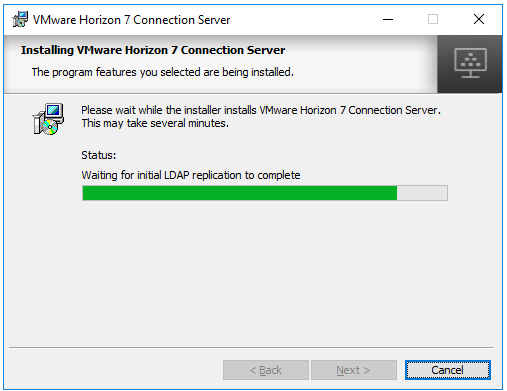

Install…

conn-setup09



Replica_srv-09

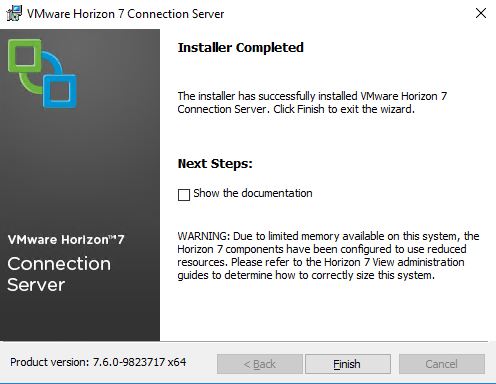

After the installer finishes with status Completed, I click Finish…

conn-setup10



When I now login into my Horizon Admin Gui, I can see both my connection servers. The reason they are both Red at the time being, is that I haven’t setup a certificate for them yet. I will now setup an Anti-Affinity rule in DRS on my cluster to make sure these servers are newer located on the same hw in case of hw-crash.

Replica_srv-11
